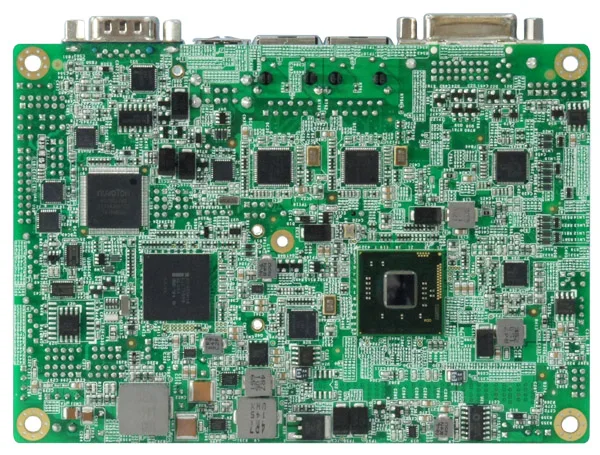

IB895 - Intel® Atom™ D2550 / N2600 3.5-inch Disk Size w/ Intel® NM10 PCH

IB895 - Intel® Atom™ D2550 / N2600 3.5-inch Disk Size w/ Intel® NM10 PCH. Distribué au Canada et aux États-Unis par IBT Technologies, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU
Intel® Atom™ Processor D2550 (1.86GHz, 1MB cache) · Intel® Atom™ Processor N2600 (1.6GHz, 1MB cache)
MEMORY
One DDR3 SO-DIMM socket · Supports up to 4GB, Non ECC · VGA · Intel® Atom processor integrated · Supports DVI-D and 24-bit dual channel LVDS
ETHERNET
2x Intel 82583V PCI-E Gigabitl LAN · 2x RJ-45 on board
POWER
+12V ~+24VDC-in
Legacy catalogueIBASE Technology
N° DE PIÈCE FABRICANT IB895IBASE Technology

Specifications

18 LIGNES
CPUIntel® Atom™ Processor D2550 (1.86GHz, 1MB cache) · Intel® Atom™ Processor N2600 (1.6GHz, 1MB cache)
ChipsetIntel® NM10 PCH
BIOSAMI BIOS, ACPI supported
System MemoryOne DDR3 SO-DIMM socket · Supports up to 4GB, Non ECC · VGA · Intel® Atom processor integrated · Supports DVI-D and 24-bit dual channel LVDS
LAN2x Intel 82583V PCI-E Gigabitl LAN · 2x RJ-45 on board
AudioChipset built-in audio controller · with Realtek ALC269QHD Codec with class-D speaker amplifier
LPC I/ONuvoton NCT6627UD · 1x KB, 1x Mouse, 3x RS232, · 1x RS-232/422/485(Jumperless selection), 2x SATA II
Serial PortsOne RS232 port and three RS232/422/485(jumperless selection)
Watchdog TimerGenerates system reset; 256 levels
Digital I/O4 in / 4 out
USB2 USB 2.0 ports on board · 4 USB 2.0 ports via pin header
Keyboard and Mouse ConnectorPS/2 type
Other FeaturesmSATA
Power Connector+12V ~+24VDC-in
Form Factor3.5-inch SBC
Dimensions102mm x 147mm (4" x 5.8")
Power ConsumptionIntel® Atom-D25501.86GHz · 2GB DDR3-1333 · +12V: 1.64A
Relative Humidity10%~90% (non-condensing)
