ORDINATEURS MONOCARTES / EN STOCK

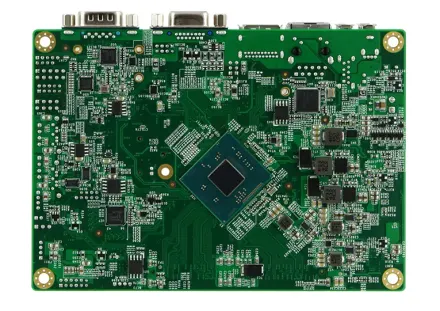

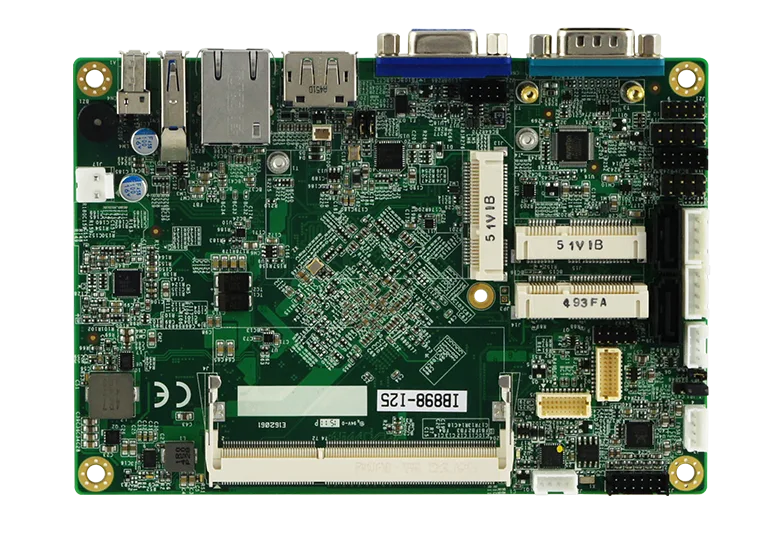

IB898

Ordinateur monocarte 3,5 po — Intel® Atom® E3800 Series Processor

Ordinateur monocarte 3,5 po — Intel® Atom® E3800 Series Processor. Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

Intel® Atom® DC E3825 (1.33GHz, 1MB cache)Intel® Atom® SC E3815 (1.46GHz, 512KB cache)

MEMORY

1x DDR3L-1066 SO-DIMM, Max 8GB (Non-ECC)

STORAGE

1x mSATA

DISPLAY

Supports CRT, DisplayPort, and 24-bit dual-channel LVDS

x86 based 3.5 Single Board…Single Board Computer

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT IB898 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

24 LIGNES

CPU	Intel® Atom® DC E3825 (1.33GHz, 1MB cache)Intel® Atom® SC E3815 (1.46GHz, 512KB cache)
PCH	Integratd in Intel® Atom® SoC
Memory	1x DDR3L-1066 SO-DIMM, Max 8GB (Non-ECC)
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	1x mSATA
Mini Type Slots	3x Mini PCI-E (2x full-size, 1x half-size)
Graphics Controller	Intel® Atom® SoC integrated Gen7 4EUs graphics
Video Output	Supports CRT, DisplayPort, and 24-bit dual-channel LVDS
Ethernet	1x Intel® I210IT PCI-E Gigabit LAN
I/O Chipset	Nuvoton NCT5523D
Serial Port	1x RS232/422/485 (jumper-less selection)1x RS232
USB 2.0	1x USB 2.0 on board2x USB 2.0 via pin header
USB 3.X	1x USB 3.0 on board
Serial ATA	2x SATA II
Audio	Intel® Atom® SoC built-in HD Audio controller + Realtek ALC269QHD codec w/ class-D amplifier
TPM	N/A
Others	Digital I/O, +12V DC-In, iSMART Wide-range operating temperature
Dimensions (L x W)	102mm x 147mm (4" x 5.8")
Power Consumption	Intel® Atom® E3825 1.33GHz w/ 4GB DDR3L-1600+12V: 0.65A
Operating Temperature	-40°C~85°C (-40°F~185°F)
Storage Temperature	-40°C~90°C (-40°F~194°F)
Relative Humidity	90% (non-condensing @60°C)
