AFFICHAGE NUMÉRIQUE / EN STOCK

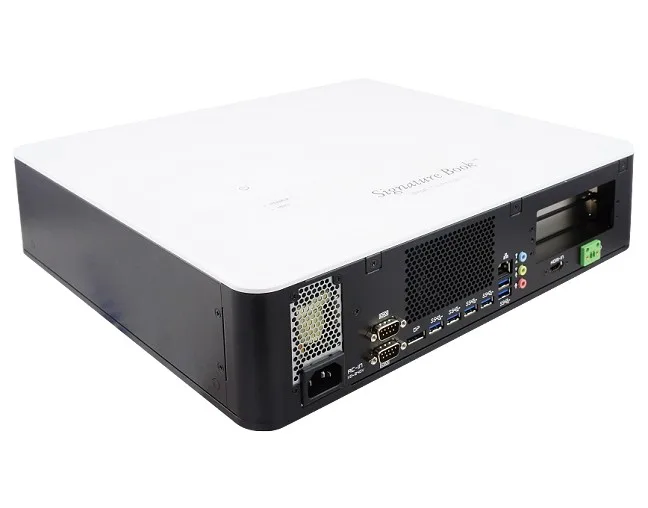

SI30S

AMD Ryzen™ 3000 Series Processor-based Video wall Player with 1x PCI-E (x16) or 2x PCI-E (x8) Slots

AMD Ryzen™ 3000 Series Processor-based Video wall Player with 1x PCI-E (x16) or 2x PCI-E (x8) Slots. Distribué au Canada et aux États-Unis par IBT Technologies, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

AMD Ryzen™ 3000 Series 7 and 5 Processors

MEMORY

2x DDR4 2400 SO-DIMM, dual channel, Max. 64GB

STORAGE

2x 2.5” SATA SSD with RAID 1 support

DISPLAY

AMD Radeon™ Vega GPU integrated for APU series

Legacy catalogueIBASE Technology

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

N° DE PIÈCE FABRICANT SI30S — IBASE Technology

Specifications

24 LIGNES

System Mainboard	MBD301
CPU	AMD Ryzen™ 3000 Series 7 and 5 Processors
CPU Socket	AM4
Chipset	AMD X470
Memory	2x DDR4 2400 SO-DIMM, dual channel, Max. 64GB
Graphics	AMD Radeon™ Vega GPU integrated for APU series
LAN	1x Gigabit LAN
Expansion Slots	1x PCI-E (x16) slot supports single at x16 (PCIE2) · for AM4 Pure CPU series · 1x PCI-E (x16) slot supports single at x8 (PCIE2) · for AM4 APU series · 1x M.2 socket (E-Key) · 1x SIM card slot
I/O Interface	6x USB 3.1 · 1x DP · 1x RJ45 for Gigabit LAN · 1x COM#1 port for RS232/422/485 · 1x COM#2 port for RS232 only · 3x Micro jack audio connectors for Mic in, · Line-in and Line-out · 1x Reset button, 1x DC 12V output · 1x Terminal block for external power button
Auto Control and Monitoring	Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement	AC 110V ~ 240V
Construction	Aluminum + SGCC
Weight	TBD
Chassis Color	Black and white
Storage	2x 2.5” SATA SSD with RAID 1 support
Power Supply	Internal 500W PSU
Mounting	Standard system bracket
Dimensions	386mm(W) x 345mm(D) x 93mm(H) · 15.20”(W) x 13.58”(D) x 3.66”(H)
Certification	CE, FCC class B, CCC
Operating System Support	Win10 64-bit Enterprise
Operating Temperature	0°C ~ 45°C (32°F ~ 113°F)
Storage Temperature	-20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity	10% ~ 90% (non-condensing)
Vibration	mSATA: 5 grms / 5 ~ 500Hz / random operation

Features

6 LIGNES

Feature 1	iCONTROL intelligent energy-saving and Observer hardware remote monitoring technologies
Feature 2	AMD Ryzen™ 3000 Series 7 and 5 Processors
Feature 3	2x DDR4 2400 SO-DIMM, dual channel, Max. 64GB
Feature 4	1x M.2 socket (E-Key), supports WiFi/BT module
Feature 5	1x Mini PCI-E (full-size) for WiFi, Bluetooth, 4G LTE or capture card options
Feature 6	1x PCI-E (x16) or 2x PCI-E (x8) based on PCI-E x16 connectors for optional Matrox / AMD / NVIDIA GPU cards

Ordering Information

1 LIGNES

SI-30S

- Signage Player with MBD301 AMD® AM4 Ryzen™ 1700x processor (20MB Cache, up to 3.7 GHz), 2x 8GB DDR4 2400 SO-DIMM memory, 2.5” SSD 128GB and 500W PSU
