AFFICHAGE NUMÉRIQUE / EN STOCK

SI32N

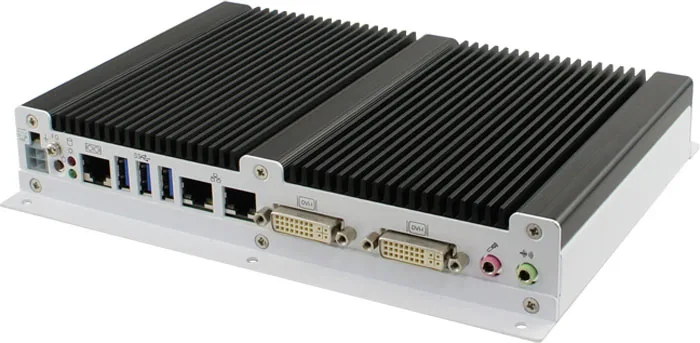

SI-32-N outdoor / in-vechicle digital signage player integrated Radeon™ HD 7600 graphics performance 12-24v DC input

SI-32-N outdoor / in-vechicle digital signage player integrated Radeon™ HD 7600 graphics performance 12-24v DC input. Distribué au Canada et aux États-Unis par IBT Technologies, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

AMD R-452L Quad-Core (1.6/2.4GHz) APU

MEMORY

2x DDR3 1600MHz SO-DIMM memory, Max. 8GB · Graphics · AMD Radeon™ HD 7600G GPU

STORAGE

1x open frame SSD, 1x mSATA

ETHERNET

2x RTL8111G Gigabit LAN controller

Legacy catalogueIBASE Technology

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

N° DE PIÈCE FABRICANT SI32N — IBASE Technology

Specifications

24 LIGNES

System Mainboard	IB939-45
CPU Type	AMD R-452L Quad-Core (1.6/2.4GHz) APU
CPU Package	827-BGA (837mm*2)
Chipset	AMD A70M
Memory	2x DDR3 1600MHz SO-DIMM memory, Max. 8GB · Graphics · AMD Radeon™ HD 7600G GPU
2x Hybrid DVI-I Supports	OpenCL™ 1.1DirectCompute 11, · DirectX® 11 UVD3 Hardware Video Decoder, MPEG-2, · MPEG-4, H.264, VC-1, WMV
LAN	2x RTL8111G Gigabit LAN controller
Expansion Slots	1x mSATA/mPCIe(x1) Full size · 1x mPCIe(x1) Half size · For Wi-Fi, Bluetooth, 3G or TV Tuner options
I/O Interface	1x Hybrid-DVI (VGA/ DVI/ HDMI with audio) · 1x Dual-link DVI-I} · 3x USB 3.0 ports · 2x RJ45 for LAN · 1x RJ45 for RS232 · 2x Microjack audio connectors for Line-in / Line-out · Power LED / HDD LEDb and power on/off button · 1x ATX 4-pin Power jack connector
Auto Control and Monitoring	Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min) On / Off scheduler: 2 time slots
Power Requirement	+12V~24V DC-in
Construction	Aluminum + SGCC
Weight	1.7kg (3.75lbs)
Chassis Color	Black and White
Storage	1x open frame SSD, 1x mSATA
Power Supply	84W power adaptor
Mounting	Slim design with wall mounting holes
Dimensions	218mm(W) x 140mm(D) x 35mm(H), 8.5”(W) x 5.46”(D) x 1.36”(H)
Certification	CE, FCC, UL, CCC
Operating Temperature	0°C~ 45°C (32°F~113°F)
Storage Temperature	-20°C ~ 80°C (-4°F~176°F)
Relative Humidity	5~90% @ 45°C, (non-condensing)
Vibration	SSD: 5 grms / 5~500Hz / random operation
HDD	0.25 grms / 5~500Hz / random operation

Features

8 LIGNES

Feature 1	iSMART - for EuP/ErP power saving, auto-scheduler and power resume
Feature 2	Dual independent 1080p playback
Feature 3	AMD R-Series Quad-Core R-452L (1.6/2.4GHz) APU
Feature 4	2x DDR3 1600MHz SO-DIMM, Max. 8GB
Feature 5	AMD Radeon™ HD 7600G GPU
Feature 6	Dual Mini PCI-E(x1) slots for Wi-Fi, Bluetooth, 3G or TV tuner options
Feature 7	12V~24V DC wide-range power input
Feature 8	Compact and fanless design

Ordering Information

2 LIGNES

SI-32-N	-
SI-32-NM	-
