AMI232

Système compact extensible sans ventilateur — 9th/8th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP)

Système compact extensible sans ventilateur — 9th/8th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP). Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

9th/8th Gen Intel® Core™ i7/i5/i3 desktop processors

MEMORY

2x DDR4-2666/2400 SO-DIMM, Max. 32GB

STORAGE

2x 2.5'' HDD/SSD1x M.2 (M-Key supports PCI-E(4x) + SATA for NVMe SSD)

OPERATING TEMP.

-20°C ~ 70°C (-4°F~158°F) (for 35W CPU)

AMI Series Expandable…Expandable Embedded System

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT AMI232 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

19 LIGNES

System Mainboard	MB230AF with Intel® Q370 PCH
CPU Type	9th/8th Gen Intel® Core™ i7/i5/i3 desktop processors
System Speed	Up to 4.0 GHz
Memory	2x DDR4-2666/2400 SO-DIMM, Max. 32GB

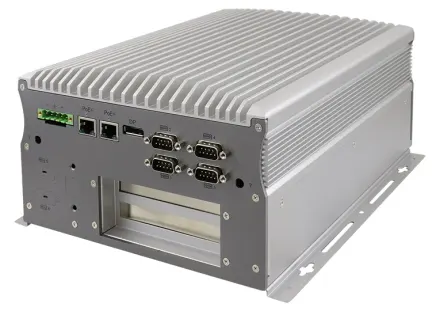

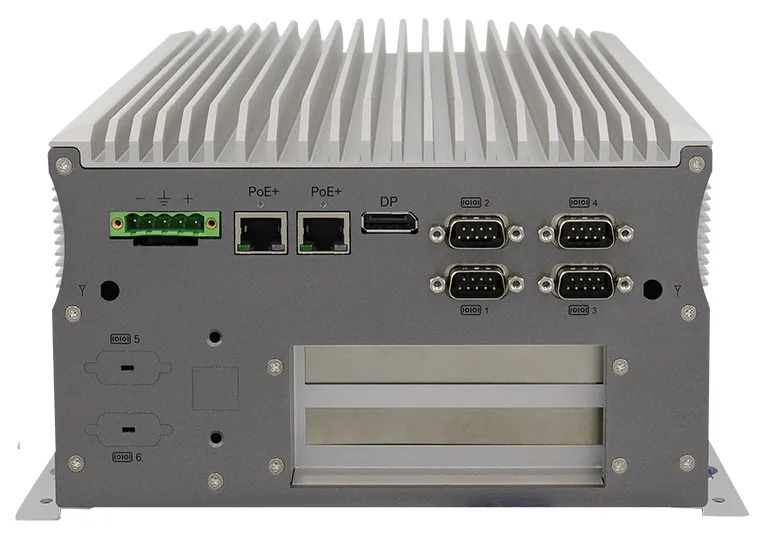

Front Panel External I/O	1x RS232/422/485 port for COM#1~COM#23x RS232 ports for COM#3~COM#42x RS232 ports for COM#5~6 from optional IP211/IP2121x DisplayPort (1.2)2x RJ45 Gigabit Ethernet port (supports 802.3at PoE+)1x 5-pin DC-in terminal block for 12V (±10%) or 18V (-10%)~24V (+10%)2x Antenna holes2x USB 2.0 from optional IP211/IP212/IP2132x Expansion slot

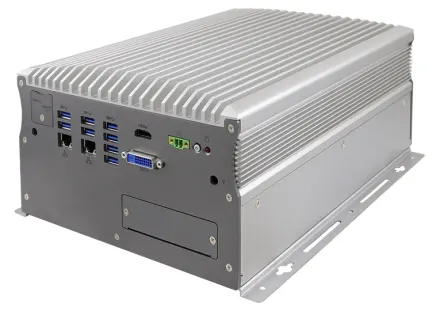

Rear Panel External I/O	1x DVI-D + HDMI(1.4)4x USB3.1 ports2x Antenna holes2x RJ45 Gigabit Ethernet port + Dual USB3.1 stack ports1x Red HDD LED1x power button with Green LED indicator1x 2-pin terminal block2x SIM card
Expansion Slots	2x Flexible PCI-E / PCI expansion slot1x M.2 (B-key supports USB 2.0 for 4G/LTE)1x M.2 (E-key supports PCI-E + USB 2.0 for CNVi)1x M.2 (M-key supports PCI-E(4x) + SATA for NVMe SSD)
Storage	2x 2.5'' HDD/SSD1x M.2 (M-Key supports PCI-E(4x) + SATA for NVMe SSD)
Construction	Aluminum & steel
Chassis Color	Silver & Gray
Mounting	Desktop & wall mount
Dimensions	210mm(W) x 285mm(D) x 129mm(H) 8.27" (W) x 11.22" (D) x 5.08" (H)
Weight	4.9 kg
Operating Temperature	-20°C ~ 70°C (-4°F~158°F) (for 35W CPU)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	5%~90%@45°C (non-condensing)
Vibration	Operating: 3Grms / 5~500Hz
Shock	Operating: 20G / 11ms Non-operating: 40G / 11ms
Certification	CE/ FCC Class A/ LVD
