AMS300

Système compact extensible sans ventilateur — LGA1151 Intel® Gen 7th/6th Core™ i7/i5/i3 Desktop Processors (35W TDP)

Système compact extensible sans ventilateur — LGA1151 Intel® Gen 7th/6th Core™ i7/i5/i3 Desktop Processors (35W TDP). Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

LGA1151 7th/6th Gen Intel® Core™ i7/i5/i3 desktop processors (35W TDP)

MEMORY

2x DDR4 SO-DIMM, Max. 32GB

STORAGE

2x 2.5'' HDD/SSD (1x internal & 1x external-accessible)1x mSATA socket

OPERATING TEMP.

-10°C ~ 60°C (14°F~140°F) *with airflow-10°C ~ 50°C (14°F to 122°F) without airflow

AMS Series Compact…Expandable Embedded System

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT AMS300 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

19 LIGNES

System Mainboard	MB300S with Intel® Q170 PCH
CPU Type	LGA1151 7th/6th Gen Intel® Core™ i7/i5/i3 desktop processors (35W TDP)
System Speed	Up to 3.4GHz
Memory	2x DDR4 SO-DIMM, Max. 32GB
Front Panel External I/O	2x Antenna hole for WLAN module

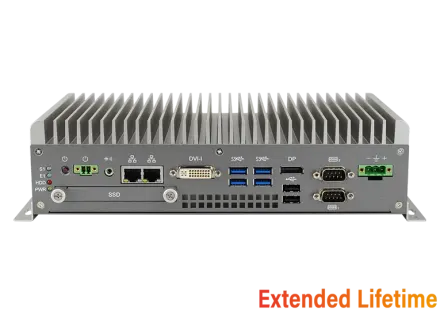

Rear Panel External I/O	1x DVI-I + 1x DisplayPort connector1x Audio jack for Line-out4x USB 3.0 ports, 2x USB 2.0 ports1x Red HDD LED, 1x green power LED2x Error LED by programming1x power button1x 2-pin terminal block for external power button1x RS232/422/485 port for COM#11x RS232 port for COM#22x RJ45 Gigabit Ethernet port1x 3-pin DC-in terminal block for 24V (±10%)
Expansion Slots	1x Mini PCIe sockets (full-size)
Storage	2x 2.5'' HDD/SSD (1x internal & 1x external-accessible)1x mSATA socket
Construction	Aluminum & steel
Chassis Color	Silver & Gray
Mounting	Desktop or wall mount (wall mount kit included)
Dimensions	275mm (W) x 140mm (D) x 70mm (H)10.83” (W) x 5.51” (D) x 2.76” (H)
Weight	2.7 kg
Operating Temperature	-10°C ~ 60°C (14°F~140°F) *with airflow-10°C ~ 50°C (14°F to 122°F) without airflow
Storage Temperature	-20°C ~ 80°C (-4°F to 176°F)
Relative Humidity	5~90% @ 45°C, (non-condensing)
Vibration	Non-Operating: 1.0 grms / 5~500Hz / random operationOperatiing:0.25 grms / 5~500Hz / random operation
Shock	Operating: 20 g / 11 msNon-operating: 40 g / 11 ms
Certification	CE / LVD / FCC Class B
