SYSTÈMES EMBARQUÉS / EN STOCK

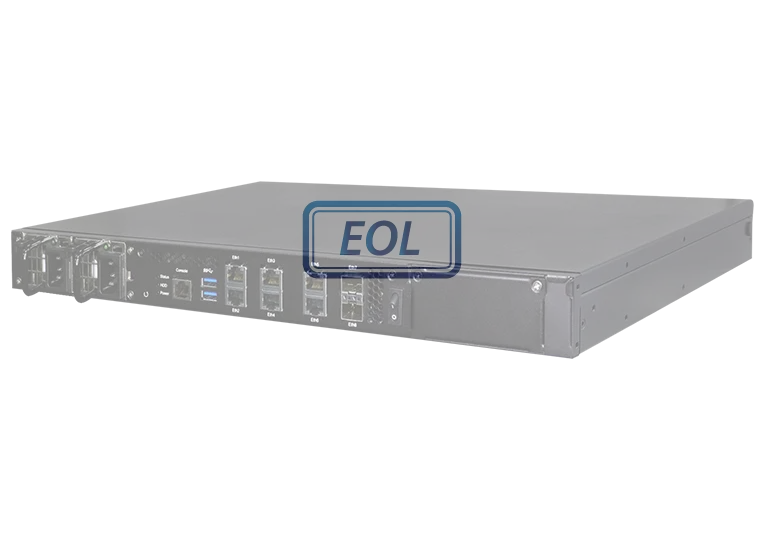

INA3605

Appliance réseau Enterprise 1U — Intel® Xeon® E-2300 Processors & up to 16 GbE Ports

Appliance réseau Enterprise 1U — Intel® Xeon® E-2300 Processors & up to 16 GbE Ports. Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

LGA1200 Socket for Intel® Xeon® E-2300 Processors

MEMORY

2x DDR4 UDIMMsMax. 64GB

STORAGE

4x hot-swappable 3.5” SATA HDD/SSD storage-Optional supports NVMe drives with LSI RAID controller(Suggested RAID Controller: LSI MegaRAID 9560-16i supporting RAID 0, 1, 5, 6, 10, 50 and 60)-Optional supports HDD drives with LSI RAID controller(Suggested RAID Controller: LSI MegaRAID 9540-8i supporting RAID 0, 1, 10)

DISPLAY

N/A

Enterprise 1U Network…Rackmount Network Appliance

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT INA3605 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

18 LIGNES

CPU	LGA1200 Socket for Intel® Xeon® E-2300 Processors
Chipset	Intel® C252 PCH chipset
Memory	2x DDR4 UDIMMsMax. 64GB
Display	N/A
Ethernet	6x GbE RJ45 Ports(Intel i226V) with 2 pairs bypass2x GbE SFP port (Intel i210IS)
Bypass	2-Segments, LAN3/4 & 5/6
Expansion	1x PCI-E(x8) slot (8-lane) for INA3605
IPMI	N/A
Storage	4x hot-swappable 3.5” SATA HDD/SSD storage-Optional supports NVMe drives with LSI RAID controller(Suggested RAID Controller: LSI MegaRAID 9560-16i supporting RAID 0, 1, 5, 6, 10, 50 and 60)-Optional supports HDD drives with LSI RAID controller(Suggested RAID Controller: LSI MegaRAID 9540-8i supporting RAID 0, 1, 10)
TPM	TPM 2.0
I/O	3x LED (Power/ HDD/ Status)1x Reset button1x RJ45 console2x USB3.2
Power Supply	full range 600 Watt redundant Power Supply
Dimensions	438 (W) x 630 (D) x 44 (H) mm17.24” (W) x24.8” (D) x 1.73” (H)
Weight	17.6 kg (30.8 lbs)
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-20° ~ 70°C (-4°F ~ 158°F)
Operating Humidity	10~ 95%
Certification	CE/FCC

INA3605
