FANLESS COMPUTERS / IN STOCK

IBBOXN3350

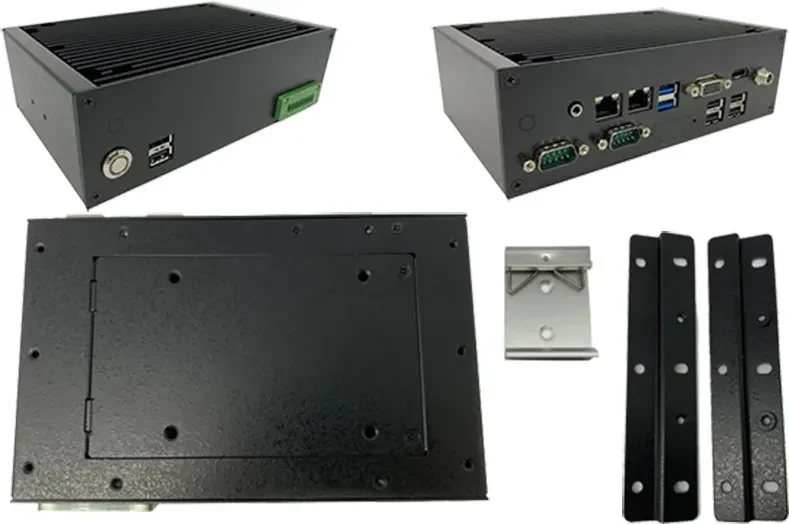

IB-BOX-N3350 Fanless, Ultra small Embedded System with Intel Apollo Lake N3350 Dual Core

IB-BOX-N3350 Fanless, Ultra small Embedded System with Intel Apollo Lake N3350 Dual Core. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

CPU

Intel Apollo Lake processor N3350

MEMORY

DDR3L-1600/1866 MHz, 1 x SO-DIMM, up to 8GB

STORAGE

1 x SATA 3.0

DISPLAY

1 x VGA (Up to 1920 x 1200 @ 60Hz),1 x HDMI (Up to 3840 x 2160 @ 60Hz),1 x LVDS (Up to 1920 x 1200 @ 60Hz)

Legacy catalogueIBT Technologies

REQUEST QUOTE REQUEST DATASHEET

MFR. PART # IBBOXN3350 — IBT Technologies

Specifications

28 ROWS

CPU	Intel Apollo Lake processor N3350
Chipset	Intel SoC integrated
System Memory	DDR3L-1600/1866 MHz, 1 x SO-DIMM, up to 8GB
BIOS	AMI
COM	2 x RS-232
USB	2 x USB 3.0, 6 x USB 2.0
Ethernet	2 x RJ-45, Realtek RTL8111H Giga LAN
PoE	No
Display	1 x VGA (Up to 1920 x 1200 @ 60Hz),1 x HDMI (Up to 3840 x 2160 @ 60Hz),1 x LVDS (Up to 1920 x 1200 @ 60Hz)
Digital I/O	4 x Input / 4 x Output programmable
Audio	Realtek 5.1 channel HDA Codec, with MIC/Line-out (Internal connector)
Storage	1 x SATA 3.0
Expansion	2 x Mini-PCIe (1 x mSATA, 1 x Wifi/3G/4G supported)
Others	1 x 8-bit GPIO, 1 x I2C, 1 x SMBUS 1 x Speaker header 1 x DC 9 - 36V 4-pin ATX Power Input Connector
Power Supply	1 x DC 9-36V power input connector with lock
Optional	Phoenix contact connector
Watchdog Timer	1 - 255 steps by software program
Construction	-
Dimensions	182 x 115 x 55 mm
Weight	1.1 kg
Certifications	CE, FCC
EOS Support	-
Software Support	Win7, Win8, Win10 IoT, Linux
Mounting	VESA mount, DIN Rail with DIN Rail bracket (Optional), Wall Mount with Wall Mount bracket (Optional)
Operating Temperature	0°C to +60°C
Relative Humidity	10% to 95% relative humidity, non-condensing
Vibration	-
Shock	-

Features

5 ROWS

Feature 1	Intel Apollo Lake N3350
Feature 2	DiskSize 3.5 inch small Computer
Feature 3	Mount Din-Rail or Wallmount
Feature 4	Dual Lan, Dual Serial, Dual video output, 6xUSB
Feature 5	Power Supply source 9~36VDC input

Ordering Information

4 ROWS

IB-BOX-n3350	- Fanless Small 3.5 inch Computer, Dual Lan, Dual Serial, VGA / HDMI, 6xUSB, 9-36VDC power input
IB-BOX-WMRAIL	- WallMount bracket
IB-BOX-DM	- Din-Rail braket
Specify	- Memory and Storage requirement
