MI982
4th Gen. Intel Mini-ITX Motherboard w/ Intel® H81 PCH - 4th Generation Intel® Core™ i7/i5/i3/Pentium Processor
4th Gen. Intel Mini-ITX Motherboard w/ Intel® H81 PCH - 4th Generation Intel® Core™ i7/i5/i3/Pentium Processor. Local warranty support and engineering customization available on request.
Specifications
| CPU | LGA1150 for 4th Generation Intel® Core™ DT i7/i5/i3/Pentium processors |
|---|---|
| System Memory | 2x DDR3-1600 SO-DIMM, Max 16GB (Non-ECC) |
| System Chipset | Intel® H81 PCH |
| BIOS | AMI BIOS |
| Watchdog Timer | 256 levels |
| SSD | N/A |
| H/W Monitor | Yes |
| Expansion Slots | 1x PCI-E(16x) slot · 2x Mini PCI-E (1x full-sized, 1x half-sized) |
| VGA Controller | 4th Generation Intel® Core™ DT i7/i5/i3/ Pentium · processors integrated graphics |
| VGA Memory | Max. shared memory-1024MB |
| Display Interface | Supports VGA, DVI-D and DisplayPort |
| LAN Controller | Intel® I217LM Gigabit LAN PHY · Intel® I211AT PCI-E Gigabit LAN (as 2nd LAN) |
| LAN Connector | 2x RJ-45 on board |
| I/O Chipset | Fintek F81866AD-I · 1x RS-232/422/485 (jumperless selection) · 5x RS232, 4x SATA III |
| USB | 2 ports USB 3.0 on board · 4 ports USB 2.0 on board · 2 ports USB 2.0 via pin header |
| Audio | Intel® H81 PCH built-in High Definition Audio controller · + Realtek ALC892 with 7.1 channel |
| Others | Digital I/O [4-in/4-out], iSMART 3.0, EuP/ErP |
| Dimensions | 170mm x 170mm (6.7“ x 6.7“) |
| Max. Power Requirement | Intel® Core™ i7-4770TE 2.3 GHz · w/ 2GB DDR3-1333 |
| +3.3V | 0.46A +5V: 1.28A |
| +5Vsb | 0.23A +12V: 3.54A |
| Operating Temperature | 0°C~60°C ( 32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 90% (non-condensing @60°C) |
Features
| Feature 1 | 4th Generation Intel® Core™ i7/i5/i3 processor, up to 4.0GHz |
|---|---|
| Feature 2 | 2x DDR3-1600 SO-DIMM, Max 16GB |
| Feature 3 | Supports DVI-D, VGA and DisplayPort |
| Feature 4 | 2x Intel® PCI-E Gigabit LAN |
| Feature 5 | 2x USB 3.0, 6x USB 2.0, 6x COM, 2x SATA III, 2x SATA II |
| Feature 6 | 2x Mini PCI-E slots,1x PCI-E(16x) |
| Feature 7 | Watchdog timer, Digital I/O, iSMART 3.0 |
Ordering Information
| MI982EF | - |
|---|

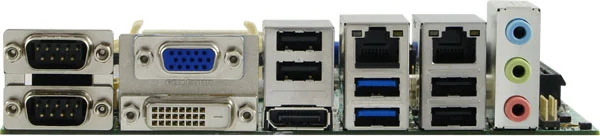

I/O — Rear panel
Front access
Where the MI982 is deployed
Desktop-class compute in custom industrial enclosures and rack systems.
CNC controller hosts, robotic coordinators, and motion-control platforms.
Base platform for OEMs building their own industrial PC housings.
Drop-in replacement for end-of-life industrial motherboards in fielded systems.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
