PICMG CPU Cards & Backplanes

PICMG full-size CPU cards, industrial SBCs and backplanes using the PICMG format. Legacy PICMG industrial CPU cards and backplanes.

MIN. TEMP.
−40°C
MAX. TEMP.
+85°C
LIFECYCLE
7 YR
30 of 30 models shown
IB740
IB740
Socket 370 815E PICMG CPU Card with VGA/LAN/MicroPCI Socket
CPU
Intel® Celeron® processor / Intel® Pentium® III processor; 300MHz~1GHz
TEMP.
0XC~60XC (32XF~140XF)
POWER
See datasheet
IB835
IB835

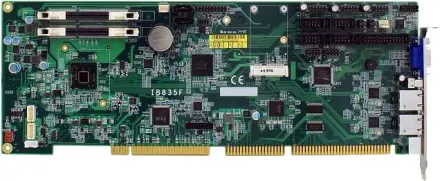

Onboard Intel® Atom™ Processor D2550 PICMG® 1.0 Full-Size CPU Card w/ Intel® NM10 PCH
CPU
Intel® Atom™ D2550 processor, 1.86GHz
TEMP.
0°C~60°C (32°F~140°F)
POWER
TBC
IB936
IB936

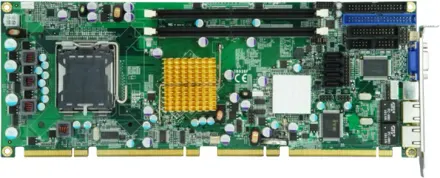

FULL-SIZE PICMG SBC with Intel LGA775 CPU
CPU
FULL-SIZE PICMG SBC with Intel LGA775 CPU
TEMP.
0°C~60°C (32°F~140°F)
POWER
See datasheet
IB945
IB945

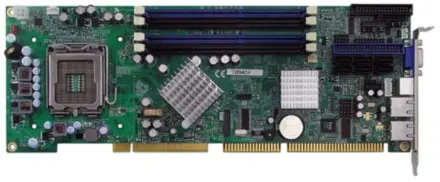

FULL-SIZE PICMG SBC with Intel LGA775 CPU
CPU
FULL-SIZE PICMG SBC with Intel LGA775 CPU
TEMP.
0°C~60°C (32°F~140°F)
POWER
See datasheet
IB965
IB965

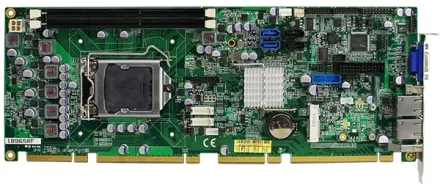

IB965 - 3rd Generation Intel® Core™ i7/i5/i3/Pentium® processor PICMG 1.3 Full-Size CPU Card w/ Intel® Q77 PCH
CPU
3rd Generation Core™ i7/i5/i3 / Pentium® / QC/ DC processors, up to 3.4GHz
TEMP.
0°C~60°C (32°F~140°F)
POWER
See datasheet
IB981
IB981

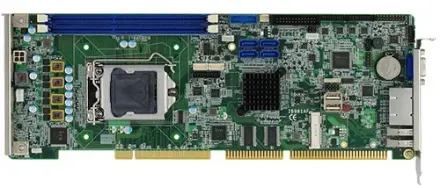

IB981 - 4th Gen Intel® Core™ PICMG® 1.0 Full-Size CPU Card w/ Intel® Q87 PCH Support i7/i5/i3 /Pentium® /Celeron®
CPU
LGA1150 for 4th Gen Intel® Core™ i7/i5/i3/ Pentium® / · Celeron® proces-sor
TEMP.
0°C ~60°C (32°F ~ 140°F)
POWER

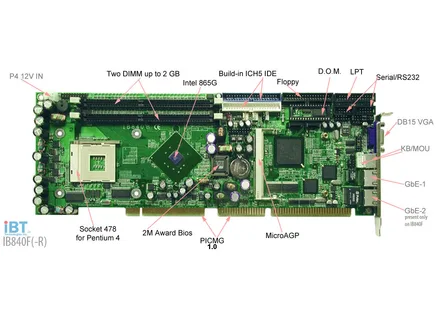

Intel® i7-4770S, 3.10GHz w/ 2x DDR3-1600 8GB
IB840
IB840
P4 PICMG SBC with MicroAGP / 800MHz FSB / SATA support
CPU
Intel Pentium 4 Socket 478
TEMP.
0°C~60°C (32°F~140°F)
POWER
See datasheet
PRIMARY USE
PICMG SBC

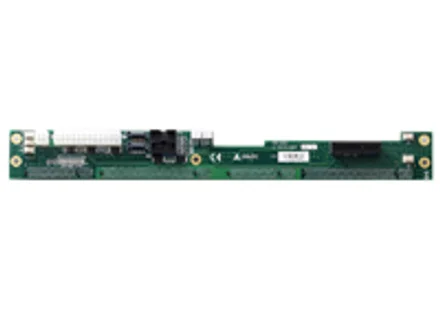

BP1U3002
BP1U3002
2-slot passive backplane — 1x PCIe (x4), 1x PICMG 1.3
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane

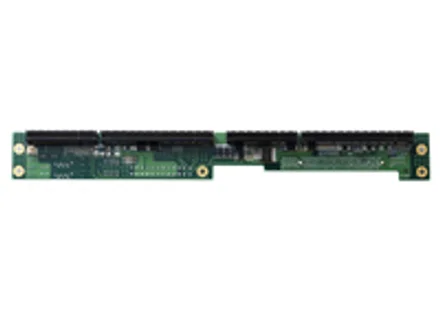

BP1U3102
BP1U3102
2-slot passive backplane — 1x PCI (32-bit), 1x PICMG 1.3
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane

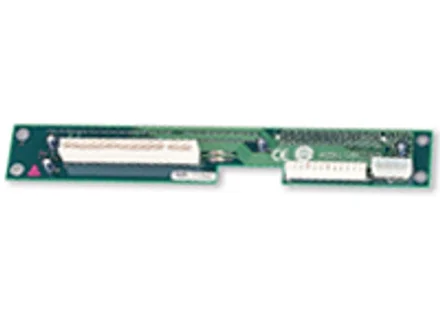

BP1UB2SD
BP1UB2SD
2-slot passive backplane — 1x PCI, 1x PICMG 1.0
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane

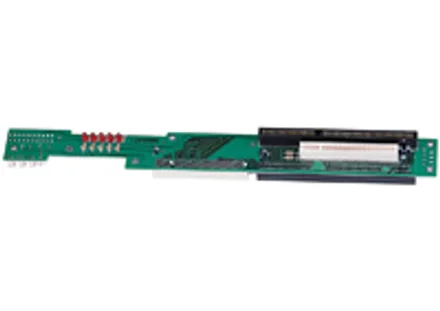

BP1UG1UG1
BP1UG1UG1
2-slot passive backplane — 1x shared ISA/PCI slot
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane

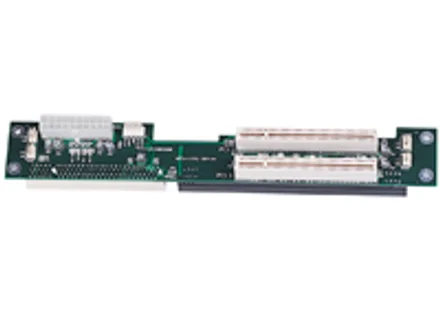

BP1UAD3S2
BP1UAD3S2
2-slot passive backplane — 1x shared slot, 1x PICMG 1.0
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane

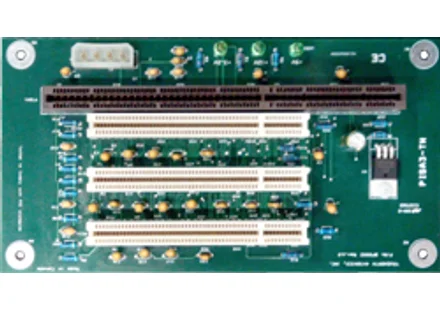

BP0002 (PISA3-TN)
BP0002 (PISA3-TN)
4-slot passive backplane — 1x PISA, 3x PCI (32-bit)
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane

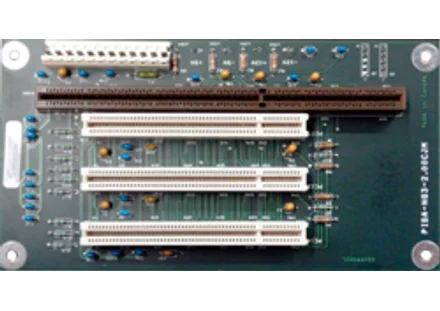

PISA-NG3 2.0
PISA-NG3 2.0
4-slot passive backplane — 1x PISA, 3x PCI (32-bit)
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane

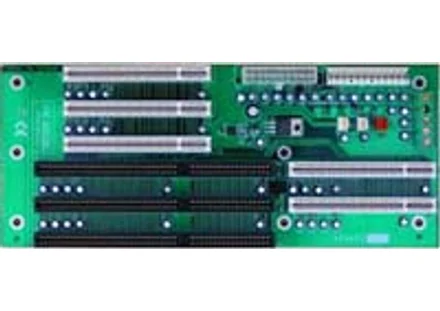

BP0005
BP0005
5-slot passive backplane — 2x PICMG, 3x PCI, 1x ISA
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane

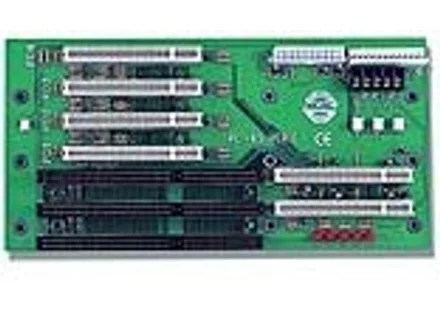

PCI-6S
PCI-6S
6-slot passive backplane — 2x PICMG, 4x PCI, 1x ISA
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane

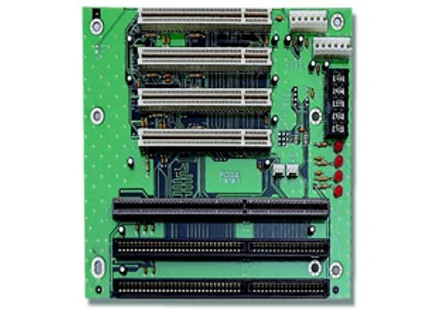

IP-7S
IP-7S
7-slot passive backplane — 1x PISA, 4x PCI, 2x ISA
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane
IP-8S
IP-8S

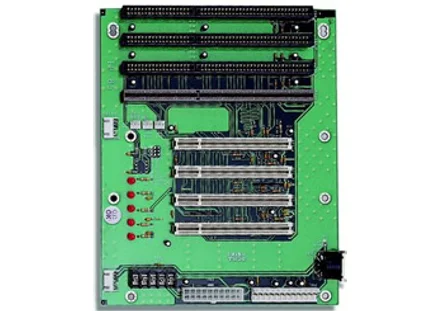

8-slot passive backplane — 1x PISA, 4x PCI, 3x ISA
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane

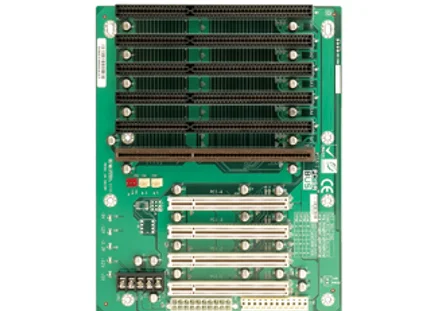

IP-10S
IP-10S
10-slot passive backplane — 1x PISA, 4x PCI, 5x ISA
CPU
N/A (passive backplane)
TEMP.
0°C ~ 60°C (32°F ~ 140°F)
POWER
ATX, 4-pin AT connector
PRIMARY USE
PICMG Backplane

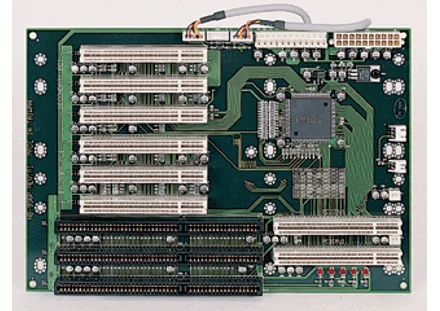

NB-9S6P
NB-9S6P
9-slot active backplane — 3x ISA (2x PICMG in-lined), 6x PCI
CPU
Active backplane — CPU on installed SBC
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane

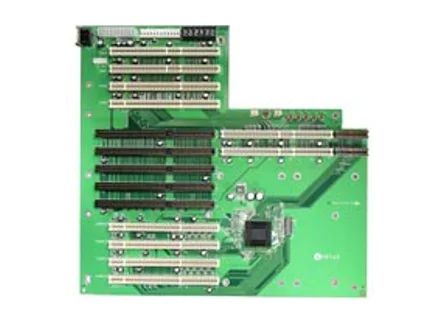

IP180
IP180
13-slot passive backplane — 4x PCI (64-bit/33MHz) or 2x PICMG 1.0 (configurable)
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane
IPB13A4
IPB13A4

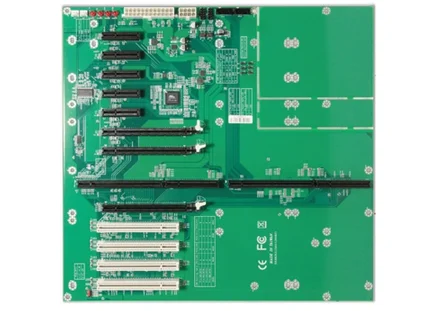

13-slot passive backplane — 4x PCI, 1x PCIe (x16), 2x PCIe (x16, x1 signal)
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane
IP470
14-slot passive backplane — 12x PCI, 1x ISA, 2x PICMG 1.0
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane

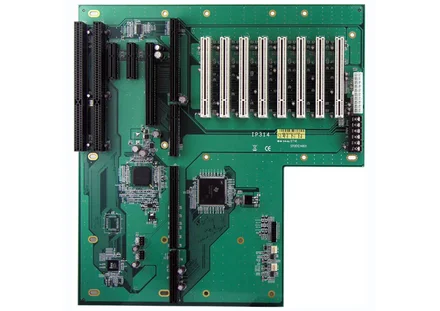

IP314
IP314
14-slot passive backplane — 1x PCIe (x16), 2x PCIe (x4), 8x PCI
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane
IP380
IP380

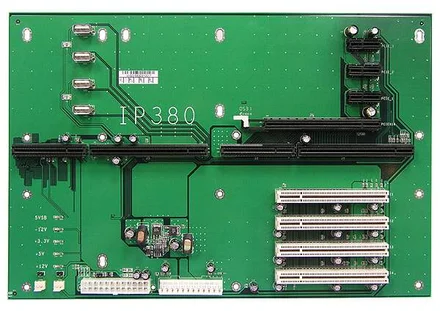

8-slot passive backplane — 1x PCIe (x16), 3x PCIe (x1), 4x PCI
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane

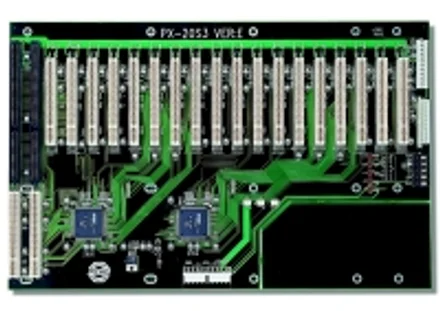

PX-20S3
PX-20S3
20-slot passive backplane — 18x PCI (32-bit), 2x PICMG 1.0
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane

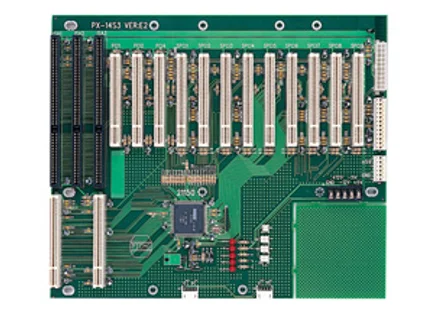

PX-14S3
PX-14S3
14-slot active backplane — 12x PCI, 2x ISA, 2x PICMG 1.0
CPU
Active backplane — CPU on installed SBC
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane

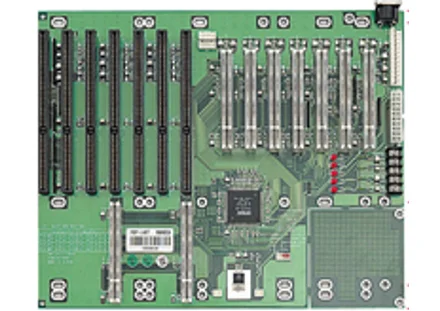

BP14A7
BP14A7
14-slot active backplane — 7x PCI, 6x ISA, 1x PICMG 1.0
CPU
Active backplane — CPU on installed SBC
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane

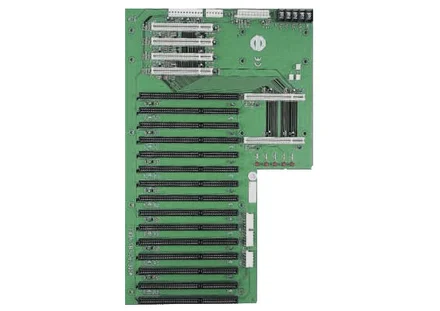

PCI-19S
PCI-19S
20-slot passive backplane — 4x PCI, 13x ISA, 2x PICMG 1.0
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane
PX-14S5
14-slot passive backplane — 7x PCI, 5x ISA, 2x PICMG 1.0
CPU
N/A (passive backplane)
TEMP.
N/A
POWER
N/A
PRIMARY USE
PICMG Backplane
