IB840
PICMG CPU CARDS / IN STOCK

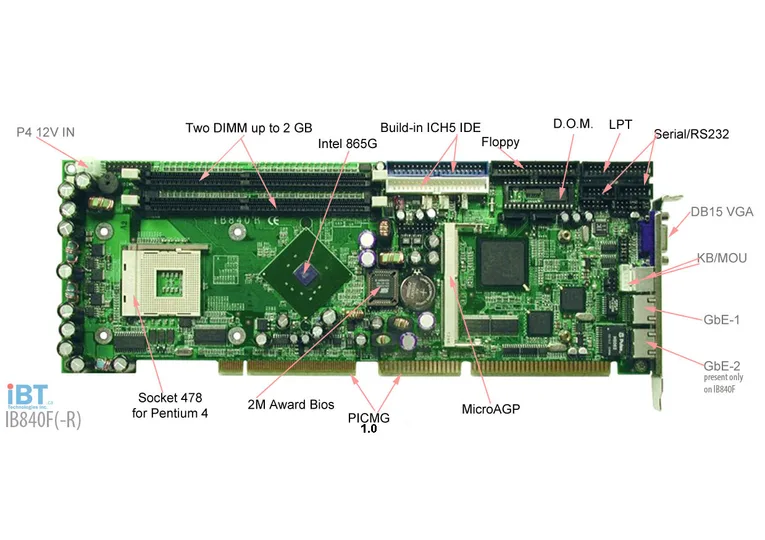

IB840

P4 PICMG SBC with MicroAGP / 800MHz FSB / SATA support

IB840 / IB840F P4 PICMG SBC with MicroAGP, 800MHz FSB and SATA support. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

CPU
Intel Pentium 4 Socket 478, 2.0GHz ~ 3.20GHz+
FSB
800MHz / 533MHz / 400MHz
CHIPSET
Intel 865G
MEMORY
Two DDR sockets up to 2GB DDR SDRAM PC266/333/400
PICMG SBCIntel Pentium 4MicroAGPLegacy catalogueIBASE Technology
REQUEST QUOTE REQUEST DATASHEET
MFR. PART # IB840 — IBASE Technology

Specifications

13 ROWS
CPU SocketSocket 478
CPUIntel Pentium 4 // 2.0GHz ~ 3.20GHz+
Front Side Bus800MHz / 533MHz / 400MHz
ChipsetIntel 865G
System MemoryTwo DDR sockets support up to 2GB DDR SDRAM PC266/333/400
Integrated VGAIntegrated 82865G AGP4X VGA for CRT interface
Optional GraphicsMicroAGP VGA expansion options: ATI Mobility M7 / M9 / M10 or LVDS / TV-out MicroAGP
Primary LANIntel 82551 10/100Mb Ethernet
Secondary LANIntel 82547EI Gigabit Ethernet (optional)
Serial ATASupports 2 ports
USBSupports 4 USB 2.0 ports
Form FactorFull-size PICMG CPU card
Dimensions338mm x 122mm

Ordering Information

2 ROWS
IB840(-R)- Socket 478 Intel 865G PICMG Full Size CPU Card, FSB 800MHz, support DDR, 82551 LAN x1, VGA, MicroAGP for optional VGA expansion
IB840F(-R)- Socket 478 Intel 865G PICMG Full Size CPU Card, FSB 800MHz, support DDR, 82551 LAN x1, 82547 Gigabit LAN x1, VGA, MicroAGP for optional VGA expansion
