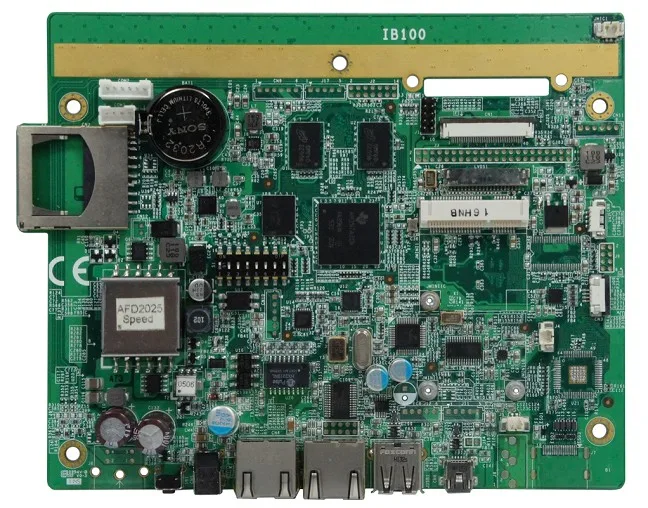

IB100

SBC Low-Power — TI AM3517 Cortex A8 600MHz SoC RISC Platform

SBC Low-Power — TI AM3517 Cortex A8 600MHz SoC RISC Platform. Distribué au Canada et aux États-Unis par IBT Technologies, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

TI Cortex™-A8 AM3517 600MHz

MEMORY

256MB DDR2 on board

DISPLAY

TTL, up to 1280 x 720

ETHERNET

10/100 Base-T fast Ethernet w/ PoE (820.3af)

Legacy catalogueIBASE Technology

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

N° DE PIÈCE FABRICANT IB100 — IBASE Technology

Specifications

22 LIGNES

Form Factor	Disk-Size SBC
CPU	TI Cortex™-A8 AM3517 600MHz
System Memory	256MB DDR2 on board
Data Memory	SD socket (up to 32GB)
POE/POE+	802.3af, 15.4 watts.
Display	TTL, up to 1280 x 720
LAN	10/100 Base-T fast Ethernet w/ PoE (820.3af)
Touch	Four wires resistive touch IC for RTP
USB	headers for CPT
Audio	Audio pin header (1x microphone,2x speaker)
Watchdog	256 Levels
Edge I/O	1x Fast Ethernet w/ PoE (RJ45 connector) · 1x USB Type-A · 1x USB_OTG · 1x RS-232 port (RJ45 connector) · 1x SD slot · 1x Reset button
Headers and Expansion Slots	1x TTL connector · 1x Debug port header · 1x Audio pin header set (1x microphone, 2x speaker) · 1x I²C connector (reserved )
1x Battery	BR2032 with socket · 1x 4 wire resistive touch header
Slots	1x Full-size Mini PCI-E(x1) with USB signal only
Power	12V DC or POE
Dimensions	131mm x 160mm (5.16” x 6.3”)
Devices	WIFI/BT/3G module (option
Software Support	Android 2.3/ Linux kernel V3.0 / WinCE 6.0
Operating Temperature	0°C~ 50°C (32°F ~ 122°F)
Relative Humidity	10%~90% (non-condensing)
Certification	CE/FCC Class A

Features

6 LIGNES

Feature 1	TI ARM Cortex-A8, AM3517 600Mhz
Feature 2	Supports 12V DC input and PoE (802.3af)
Feature 3	256MB DDR2 and SD socket for expansion
Feature 4	Resistive touch panel (4-wires) and capacitive touch interface via USB
Feature 5	Supports the embedded I/O as COM, I2C, USB-OTG, Audio and Ethernet
Feature 6	Supports the mini-PCIe (only USB signal) for the wireless connectivity

Ordering Information

1 LIGNES

IB100-MRS

- RISC, TI AM3517 CPU(Cortex-A8, 600MHz) , w/256M DDR2 Memory, 512MB NAND flash, Single CH TTL, Mini PCI-E (with USB function only)
