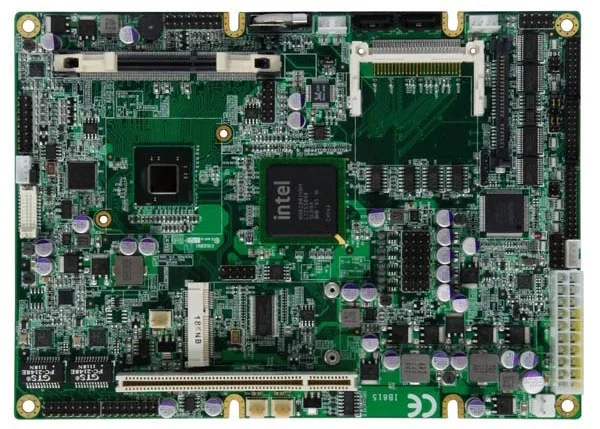

IB815
Intel® Atom™ D525 5.25
Intel® Atom™ D525 5.25. Local warranty support and engineering customization available on request.
CPU
Onboard Intel® Atom™ processors D525 DC · 1.80GHz
MEMORY
1x DDR3-800 SO-DIMM · Max. 4GB
STORAGE
SSD: CFast socket (IB815FC) + CF (IB815F / IB815FC)
ETHERNET
Two Realtek 8111E PCI-E Gigabit LAN · Two RJ-45 on board
P/N # IB815
Manual Specifications
18 ROWS
| CPU | Onboard Intel® Atom™ processors D525 DC · 1.80GHz |
|---|---|
| Chipset | Intel® 82801HM I/O Controller · ICH8M |
| BIOS | AMI BIOS |
| System Memory | 1x DDR3-800 SO-DIMM · Max. 4GB |
| Integrated VGA | Intel® ICH8M integrated Graphics Media Accelerator (GMA 3150) |
| LAN | Two Realtek 8111E PCI-E Gigabit LAN · Two RJ-45 on board |
| Storage | SSD: CFast socket (IB815FC) + CF (IB815F / IB815FC) |
| Audio | ICH8M integrated audio controller with ALC662 codec for 5.1CH |
| LPC I/O | Nuvoton NCT6627UD I/O chipset · 1x KB, 1x mouse, 1x LPT, 1x IrDA, 3x RS-232, 1x RS-232/422/485, 2x SATA II |
| Serial Ports | Three RS-232 and one RS-232/433/485 COM ports |
| Serial ATA | Supports 2 SATA II ports |
| USB (2.0) | Supports 8 USB ports (via pin header) |
| Watchdog Timer | Generates system reset; 256 levels |
| Digital I/O | 4 in / 4 out |
| Power Connector | ATX power, DC-in (+12V) |
| Expansion Slots | 1x PCI, 1x Mini PCI-E |
| Form Factor | 5.25" Disk-Size SBC |
| Dimensions | 203mm x 146mm · TBC · 0°C~60°C (32°F~140°F) · -20°C~80°C (-4°F~176°F) · 10%~90% (non-condensing) |
I/O — Rear panel
Front access
Where the IB815 is deployed
USE CASE
OEM integration
Drop-in board for custom enclosures, instrumentation, and purpose-built hardware.
USE CASE
Industrial control
PLC-adjacent controllers, motion control, and machine-tending applications.
USE CASE
Embedded kiosks
Behind-display compute for purpose-built kiosk and terminal hardware.
USE CASE
Test & measurement
Instrument hosts and ATE controllers built around a serviceable long-lifecycle board.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
