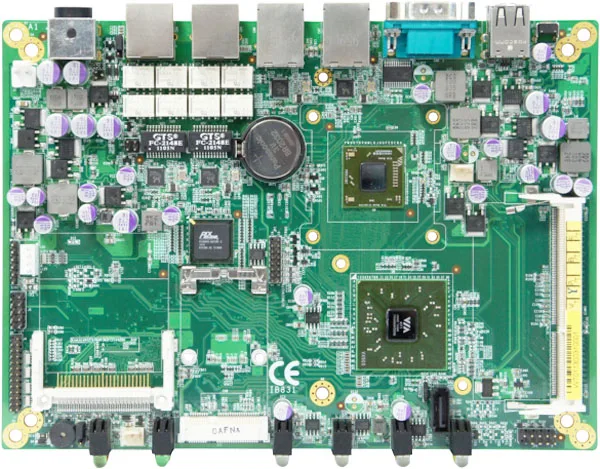

IB831

VIA Nano™ X2 Dual Core 5.25” Disk-Size SBC w/ VIA VX900 Chipset

VIA Nano™ X2 Dual Core 5.25” Disk-Size SBC w/ VIA VX900 Chipset. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

CPU

VIA Nan™ X2 U4300 Dual Core processor, 1.2GHz

MEMORY

1x DDR3 SO-DIMM, Max. 2GB (Non-ECC)

STORAGE

CF socket

OPERATING TEMP.

0°C~60°C (32°F~140°F)

Legacy catalogueIBASE Technology

REQUEST QUOTE REQUEST DATASHEET

MFR. PART # IB831 — IBASE Technology

Specifications

20 ROWS

CPU	VIA Nan™ X2 U4300 Dual Core processor, 1.2GHz
System Memory	1x DDR3 SO-DIMM, Max. 2GB (Non-ECC)
System Chipset	VIA VX900
BIOS	AMI
Watchdog Timer	256 levels
SSD	CF socket
H/W Monitor	Yes
Expansion Slots	1x Mini PCI-E (USB signal)
Controller	4x Realtek RT8111E GbE
Bypass	LAN 1/2
Connector	4x RJ-45 on board
I/O Chipset	VX900, W83627DHG · COM1 via pin header · KB/mouse via pin header · (3 thermal inputs, 4 voltage monitor inputs and 4 fan headers)
USB	2 ports on board (USB 2.0)
Audio	N/A
Others	1x DC-In power connector
Dimensions	203 x 146 mm (8” x 5.75”)
Power Requirement	VIA Nano X2 U4300@1.2GHz w/ DDR3 4GB/1333 · +12V: 1.68A
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10%~90% (non-condensing)

Features

7 ROWS

Feature 1	VIA Nano™ X2 Dual Core Processor, 1.2GHz on board
Feature 2	1x DDR3 SO-DIMM, up to 2 GB
Feature 3	4x Realtek Gigabit LAN, Optional LAN Bypass
Feature 4	Integrated VIA VX900 VGA
Feature 5	2x USB 2.0, 1x COM, 1x SATA II
Feature 6	1x Mini PCI-E, 1x CF socket
Feature 7	Watchdog timer
