IB839

Name: IB839
Brand: IBASE Technology
SKU: IB839
Availability: InStock

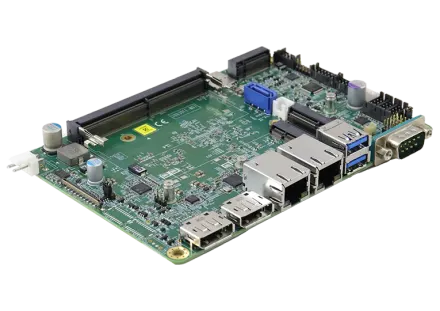

3.5" Single Board Computer with Intel® Atom® x7000RE & N-Series Processors

3.5" Single Board Computer with Intel® Atom® x7000RE & N-Series Processors. Local warranty support and engineering customization available on request.

CPU

Intel® Atom® dual-Core x7211RE or Intel® Processor Quad-Core N97

MEMORY

1x DDR5 SO-DIMM, Max. 16GB

STORAGE

1x M.2 M2280 (SATA)

DISPLAY

2x DisplayPorts & eDP or LVDS

x86 based 3.5 Single Board…Single Board Computer

REQUEST QUOTE DATASHEET (PDF)

P/N # IB839

Manual QuickSheet

Specifications

24 ROWS

CPU	Intel® Atom® dual-Core x7211RE or Intel® Processor Quad-Core N97
PCH	N/A
Memory	1x DDR5 SO-DIMM, Max. 16GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	1x M.2 M2280 (SATA)
Mini Type Slots	1x M.2 (E2230), 1x M.2 (B3052)
Graphics Controller	Intel® SoC integrated graphics

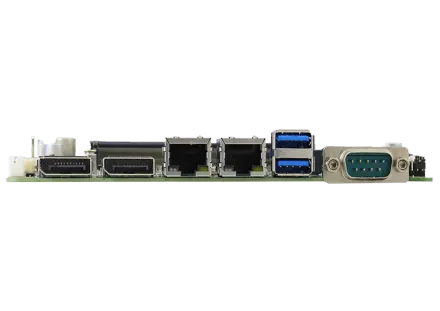

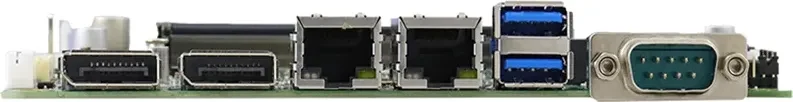

Video Output	2x DisplayPorts & eDP or LVDS
Ethernet	2x Intel® PCI-E 2.5G LANDual I226IT 2.5G LAN for Atom x7000RE seriesDual I226V 2.5G LAN for Processer N series
I/O Chipset	Fintek F81966AB-I
Serial Port	1x RS232/422/485 (Jumperless selection) & 3x RS232
USB 2.0	4x USB 2.0 (Pin-header)
USB 3.X	2x Type-A
Serial ATA	1x SATA III
Audio	Built-in HD with Realtek ALC888S
TPM	Infineon SLB9672 series
Others	Digital I/O (4-in/4-out), EuP/ErP, +12V~+24V DC-in
Dimensions (L x W)	102mm x 147mm (4" x 5.8")
Power Consumption	Intel® N355 Processor, Up to 3.90 GHzTranscend TS2GSA64V6E w/ 1x DDR5-5600 16GB +12V : 4.17A
Operating Temperature	0°C~+60°C (+32°F ~+140°F) For Processor N-40°C~+85°C (-40°F ~+185°F) For Atom x7000RE processor (up to 9W TDP)
Storage Temperature	-40°C~85°C (-40°F ~+185°F)
Relative Humidity	10% ~ 90% (non-condensing)
