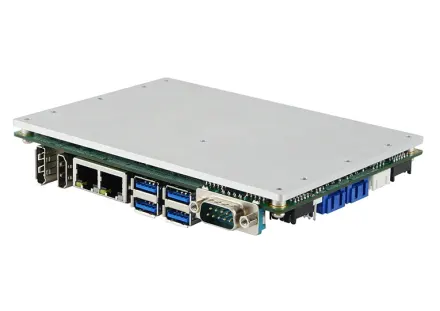

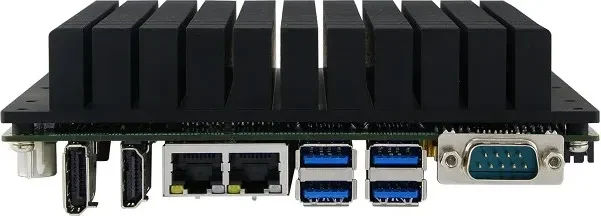

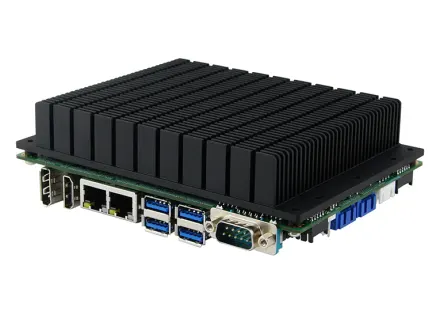

IB917

Ordinateur monocarte 3,5 po — 7th Gen Intel® Core™ U-Series Processor

Ordinateur monocarte 3,5 po — 7th Gen Intel® Core™ U-Series Processor. Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

BGA1356 for 7th Gen Intel® Core™ U-Series i7/i5/i3/ Celeron® DC processors, up to 3.4GHz

MEMORY

2x DDR4-2133 SO-DIMM, Max 32GB (Non-ECC)

STORAGE

1x mSATA

DISPLAY

Supports DisplayPort, HDMI and 24-bit dual-channel LVDS

x86 based 3.5 Single Board…Single Board Computer

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT IB917 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

24 LIGNES

CPU	BGA1356 for 7th Gen Intel® Core™ U-Series i7/i5/i3/ Celeron® DC processors, up to 3.4GHz
PCH	Integrated in 7th Gen Intel® Core™ U-Series processor
Memory	2x DDR4-2133 SO-DIMM, Max 32GB (Non-ECC)
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	1x mSATA
Mini Type Slots	1x Mini PCI-E (full-size)
Graphics Controller	7th Gen Intel® Core™ U-Series processor integrated graphics
Video Output	Supports DisplayPort, HDMI and 24-bit dual-channel LVDS
Ethernet	IB917AF series: Intel® I219LM LAN PHYIB917F series: Intel® I219V LAN PHYIntel® I211AT or I210AT Gigabit LAN (as 2nd LAN)
I/O Chipset	Fintek F81846AD-I
Serial Port	1x RS-232/422/485 (jumper-less selection), 3x RS232
USB 2.0	2x USB 2.0 via pin header
USB 3.X	4x USB 3.0 on board
Serial ATA	2x SATA III
Audio	7th Gen Intel® Core™ U-Series processor built-in HD audio controller + Realtek ALC888S codec
TPM	TPM (2.0)
Others	Digital I/O, +9V~ +24V DC-in, iSMART
Dimensions (L x W)	102mm x 147mm (4" x 5.8")
Power Consumption	Intel® i7-7600U, 2.8GHz w/ 8GB DDR4-2133+12V: 3.46AIntel® i3-7100U, 2.4GHz w/ 8GB DDR4-2133+12V: 2.68A
Operating Temperature	0°C~60°C ( 32°F~140°F)
Storage Temperature	-20°C~80°C ( -4°F~176°F)
Relative Humidity	90% (non-condensing @60°C)
