IB919
ORDINATEURS MONOCARTES / EN STOCK

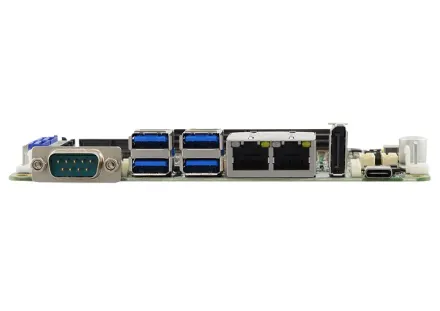

IB919

Ordinateur monocarte 3,5 po — 8th Gen Intel® CoreTM i7/i5/i3 / Celeron® SoC

Ordinateur monocarte 3,5 po — 8th Gen Intel® CoreTM i7/i5/i3 / Celeron® SoC. Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU
8th Gen Intel® Core™ i7-8665UE (1.7GHz/4.4GHz)8th Gen Intel® Core™ i5-8365UE (1.6GHz/4.1GHz)8th Gen Intel® Core™ i3-8145UE (2.2GHz/3.9GHz)Intel® Celeron® 4305UE (2.0GHz)
MEMORY
DDR4-2400 SO-DIMM, Max. 32GB (Non-ECC)
STORAGE
1x M.2 (M-Key)
DISPLAY
2x DisplayPort (DP connector & Type-C) eDP or 24-bit dual-channel LVDS
x86 based 3.5 Single Board…Single Board Computer
DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)
N° DE PIÈCE FABRICANT IB919 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

24 LIGNES
CPU8th Gen Intel® Core™ i7-8665UE (1.7GHz/4.4GHz)8th Gen Intel® Core™ i5-8365UE (1.6GHz/4.1GHz)8th Gen Intel® Core™ i3-8145UE (2.2GHz/3.9GHz)Intel® Celeron® 4305UE (2.0GHz)
PCHIntegrated in 8th Gen Intel® Core™ / Celeron® processor
MemoryDDR4-2400 SO-DIMM, Max. 32GB (Non-ECC)
BIOSAMI
Watchdog Timer256 levels
H/W MonitorYes
Storage Device Interface1x M.2 (M-Key)
Mini Type Slots1x M.2 (M2280, supports NVMe)1x M.2 (E2230, supports CNVi)
Graphics ControllerIntel® UHD Graphics 620
Video Output2x DisplayPort (DP connector & Type-C) eDP or 24-bit dual-channel LVDS
EthernetIB919AF series : Intel® I219LM Gigabit LAN PHYIB919EF series: Intel® I219V Gigabit LAN PHYIntel® I211AT or I210AT Gigabit LAN (as 2nd LAN)
I/O ChipsetFintek F81964D-I
Serial Port1x RS232/422/485 (Jumper-less selection)3x RS232
USB 2.02x USB 2.0 (Pin-header)
USB 3.X4x USB 3.1 (Type-A)1x USB (Type-C)
Serial ATA2x SATA III
AudioBuilit-in HD with Realtek ALC269 w/ class-D amplifier
TPMTPM (2.0)
OthersDigital I/O (4-in/4-out),+9V ( Non-tolerance) ~+24V DCin (+20%), EuP/ErP
Dimensions (L x W)102mm x 147mm (4" x 5.8")
Power ConsumptionIntel® Core™ i7-8665UE 1.70GHzw/ 2x DDR4-2400 16GB+12V: 2.25AIntel® Core™ i3-8145UE 2.20GHzw/2x DDR4-2400 16GB+12V: 2.24A
Operating Temperature0°C~60°C
Storage Temperature-20°C~80°C
Relative Humidity90% (non-condensing @60°C)
