SINGLE BOARD COMPUTERS / IN STOCK

IB952

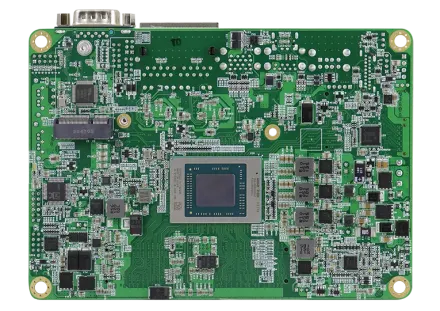

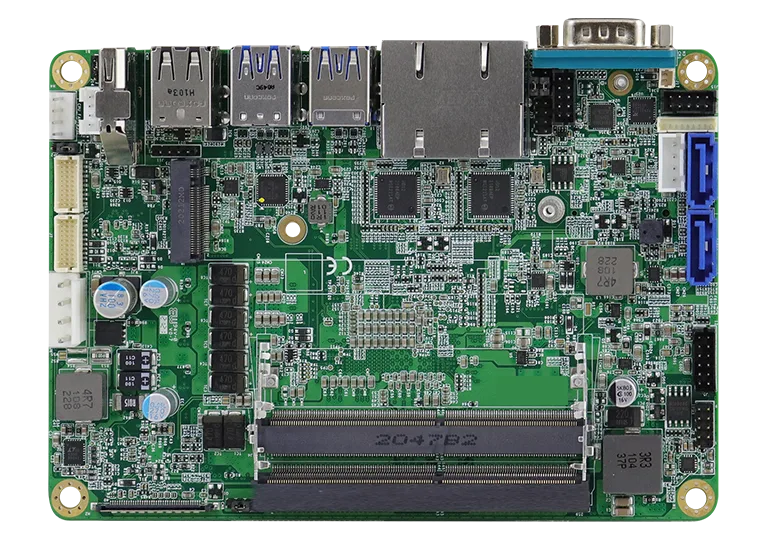

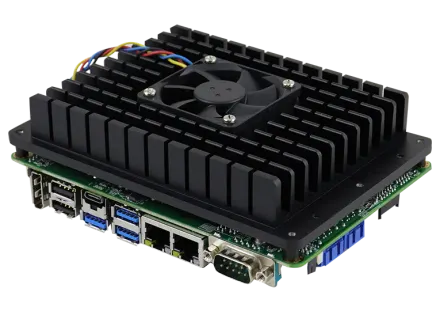

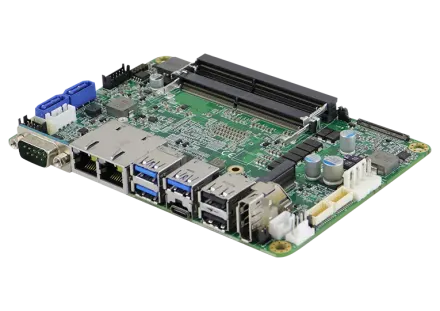

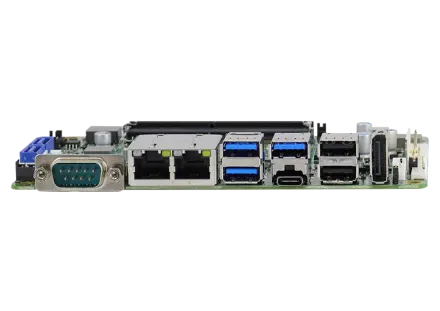

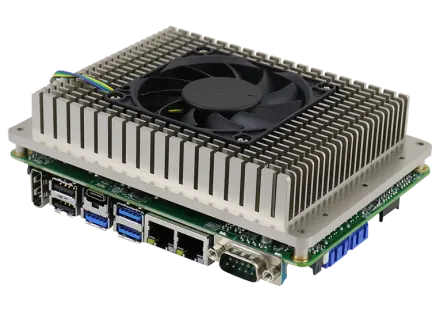

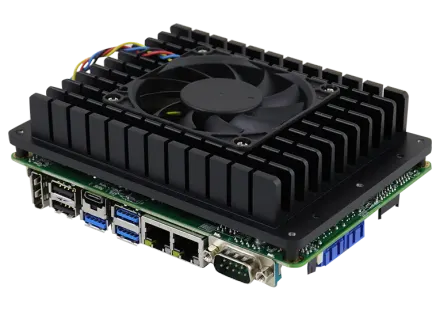

3.5" Single Board Computer with AMD Ryzen™ Embedded V2000 Series Processor

3.5" Single Board Computer with AMD Ryzen™ Embedded V2000 Series Processor. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

AMD Ryzen™ Embedded V2000 on board

MEMORY

DDR4-3200 SO-DIMM, Max. 64GB, supports ECC

STORAGE

1x M.2 (M-Key)

DISPLAY

2x DisplayPort (DP connector & Type-C), 1x 24-bit Dualchannel LVDS, 1x eDP

x86 based 3.5 Single Board…Single Board Computer

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # IB952 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

24 ROWS

CPU	AMD Ryzen™ Embedded V2000 on board
PCH	N/A
Memory	DDR4-3200 SO-DIMM, Max. 64GB, supports ECC
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	1x M.2 (M-Key)
Mini Type Slots	1x M.2 (M-Key, type:2280, supports both NVMe and SATA 6Gb/s M.2 SSD)1x M.2 (E-Key, type:2230)
Graphics Controller	AMD Radeon™ Vega integrated
Video Output	2x DisplayPort (DP connector & Type-C), 1x 24-bit Dualchannel LVDS, 1x eDP
Ethernet	2x Intel® I211AT or I210AT Gigabit LAN
I/O Chipset	Fintek F81964
Serial Port	1x RS232/422/485 (Jumper-less selection)3x RS232
USB 2.0	2x USB 2.0 on board
USB 3.X	3x USB 3.1 on board
Serial ATA	2x SATA III
Audio	Builit-in audio w/ Realtek ALC888S
TPM	TPM (2.0)
Others	Digital I/O(4-in/ 4-out), EuP/ErP, +12V~+24V DC-in (+/-10%)
Dimensions (L x W)	102mm x 147mm (4" x 5.8")
Power Consumption	AMD Ryzen™ Embedded V2748 2.9GHz w/ 2x 16GB DDR4-3200 +12V: 7.61AAMD Ryzen™ Embedded V2718 1.70GHz w/ 2x 16GB DDR4-3200 +12V: 3.92A
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	95% (non-condensing @60°C)
