IB953
SINGLE BOARD COMPUTERS / IN STOCK

IB953

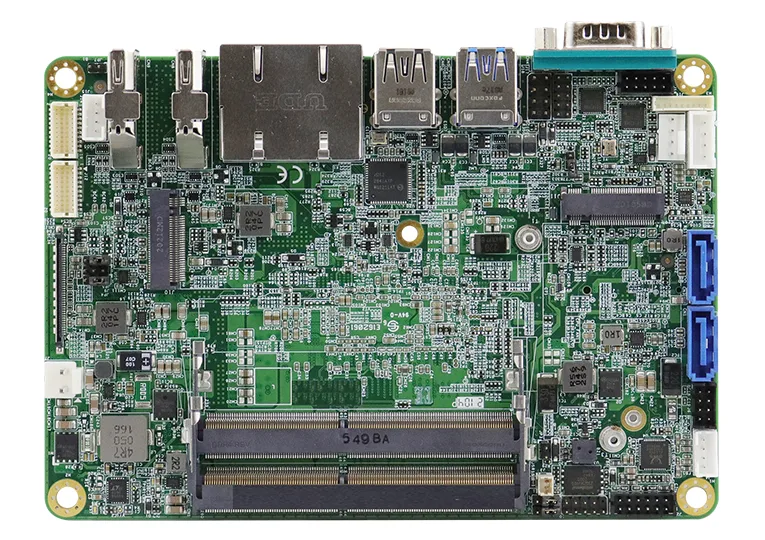

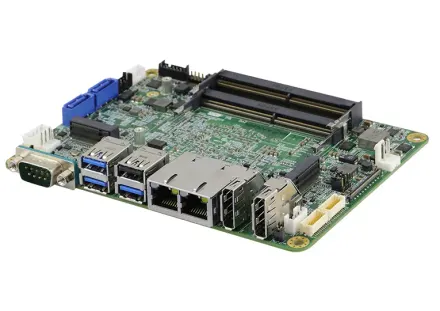

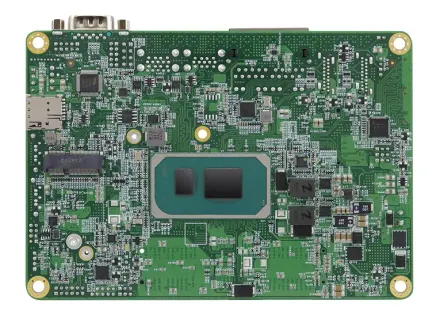

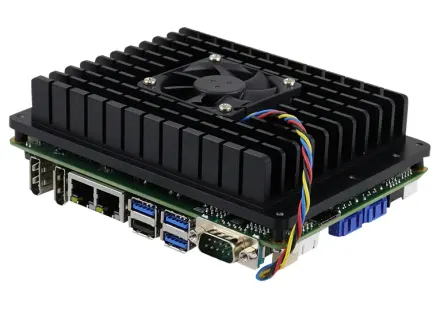

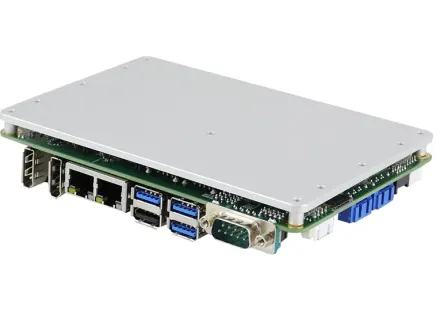

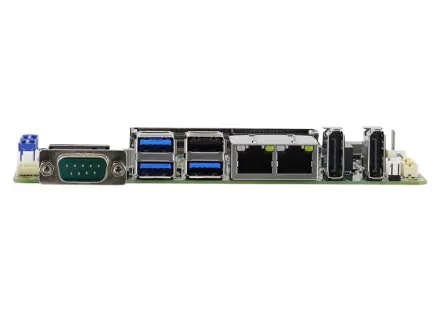

3.5" Single Board Computer with 11th Gen Intel® Core™ i7/i5/i3 / Celeron® SoC

3.5" Single Board Computer with 11th Gen Intel® Core™ i7/i5/i3 / Celeron® SoC. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU
11th Gen Intel® Core™ i7-1185G7E 11th Gen Intel® Core™ i5-1145G7E 11th Gen Intel® Core™ i3-1115G4EIntel® Celeron® 6305E
MEMORY
DDR4-3200 SO-DIMM, Max. 64GB
STORAGE
1x M.2 (M-Key)
DISPLAY
2x DisplayPort, eDP and 24-bit dual-channel LVDS
x86 based 3.5 Single Board…Single Board Computer
REQUEST QUOTE DATASHEET (PDF)
MFR. PART # IB953 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

24 ROWS
CPU11th Gen Intel® Core™ i7-1185G7E 11th Gen Intel® Core™ i5-1145G7E 11th Gen Intel® Core™ i3-1115G4EIntel® Celeron® 6305E
PCHIntegrated in 11th Gen Intel® Core™ / Celeron® processor
MemoryDDR4-3200 SO-DIMM, Max. 64GB
BIOSAMI
Watchdog Timer256 levels
H/W MonitorYes
Storage Device Interface1x M.2 (M-Key)
Mini Type Slots1x M.2 (M-Key, Type:2280, supports NVMe with PCI-E(4x) signal only)1x M.2 (E-Key, Type:2230, supports CNVi)1x M.2 (B-Key, Type:3052, supports 5G)
Graphics ControllerIntel® Gen 12 Graphics
Video Output2x DisplayPort, eDP and 24-bit dual-channel LVDS
EthernetIB953AF series: Intel® I219LM Gigabit LAN PHYIB953EF series: Intel® I219V Gigabit LAN PHYIntel® I211AT or I210AT Gigabit LAN (as 2nd LAN)
I/O ChipsetFintek F81804U-I
Serial Port2x RS232/422/485 (Jumper-less selection)
USB 2.02x USB2.0 (Pin-header), 1x USB2.0 (Type-A)
USB 3.X3x USB3.1 (Type-A)
Serial ATA2x SATA III
AudioBuilit-in HD with Realtek ALC269 w/ class-D amplifier
TPMTPM (2.0)
OthersDigital I/O (4-in/4-out), EuP/ErP, +12V~+24V DC-in (+/-10%), supports IBECC (depend on CPU SKU)
Dimensions (L x W)102mm x 147mm (4" x 5.8")
Power ConsumptionIntel® i7-1185G7E 2.8GHz/ w/ 2x16GB DDR4-3200 +12V: 3.71A Intel® i3-1115G4E 3.00GHz w/ 2x16GB DDR4-3200 +12V: 3.26A
Operating Temperature0°C~60°C
Storage Temperature-20°C~80°C
Relative Humidity95% (non-condensing @60°C)
