IB970

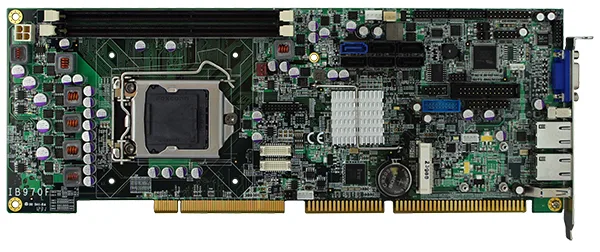

LGA1155 3rd Gen. Intel Core™ i7 / i5 / i3 Full Size CPU Card w/ Intel E75 or Q77 Express Chipset
LGA1155 3rd Gen. Intel Core™ i7 / i5 / i3 Full Size CPU Card w/ Intel E75 or Q77 Express Chipset. Local warranty support and engineering customization available on request.
Specifications
| CPU | 3rd Generation Intel Core™ i7 / i5 / i3, Pentium QC/DC processors; Up to 3.4GHz |
|---|---|
| Chipset | Intel® B75 PCH · Intel® Q77 PCH |
| BIOS | AMI BIOS, ACPI supported |
| System Memory | Two DDR3 sockets; Up to 16GB 1600/1333/1066 MHz , w/o ECC |
| LAN | Intel 82579V Gigabit LAN PHY; Intel 82583V PCI-Gigabit LAN; RJ-45 on board |
| Audio | Intel® B75/Q77 chipset built-in HD audio with Realtek ALC662 codec for 5.1 channel output |
| USB | 5x ports 2,0, 3x ports 3.0, |
| Hardware Monitoring | Monitors system/CPU temperature and voltage status |
| Watchdog Timer | Generates system reset; 256 levels |
| Digital I/O | 4 in and 4 out |
| PCI-to-ISA bridge | ITE IT8888G x1 for high drive ISA bus |
| Edge Connectors | DB15 x1 for VGA RJ45 x 2 for LAN 1 & 2 USB 2.0 x 1 USB 3.0 x 1 |
| Dimensions | 338mm x 122mm (13.31" x 4.8") |
| Power Consumption | TBC |
I/O — Rear panel
Front access
Where the IB970 is deployed
Drop-in board for custom enclosures, instrumentation, and purpose-built hardware.
PLC-adjacent controllers, motion control, and machine-tending applications.
Behind-display compute for purpose-built kiosk and terminal hardware.
Instrument hosts and ATE controllers built around a serviceable long-lifecycle board.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
