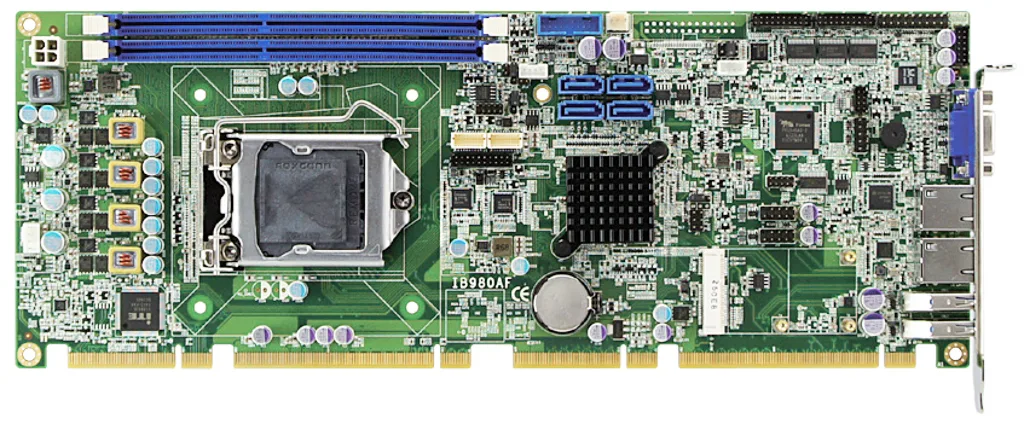

IB980

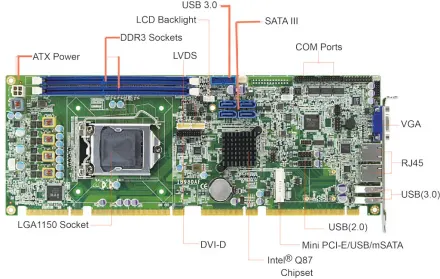

LGA1155 4nd Gen. Intel Core™ i7 / i5 / i3 Full Size CPU Card w/ Intel Q87 Express Chipset

LGA1155 4nd Gen. Intel Core™ i7 / i5 / i3 Full Size CPU Card w/ Intel Q87 Express Chipset. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

MEMORY

Two DDR3-1600 sockets; Up to 16GB , w/o ECC

ETHERNET

Intel i217LM Gigabit LAN PHY (IB980AF) Intel i217V Gigabit LAN (IB980F) · Intel i211AT Gigabit LAN (as 2nd LAN) iAMT 9.0

POWER

TBC

DIMENSIONS

338mm x 126mm (13.31" x 4.96")

Legacy catalogueIBASE Technology

REQUEST QUOTE REQUEST DATASHEET

MFR. PART # IB980 — IBASE Technology

Specifications

12 ROWS

Chipset	Intel® Q87 PCH
BIOS	AMI BIOS, ACPI supported
System Memory	Two DDR3-1600 sockets; Up to 16GB , w/o ECC
LAN	Intel i217LM Gigabit LAN PHY (IB980AF) Intel i217V Gigabit LAN (IB980F) · Intel i211AT Gigabit LAN (as 2nd LAN) iAMT 9.0
Audio	Intel® Q87 PCH built-in HD audio with Realtek ALC662 codec for 5.1 channel output
USB	4x ports 3.0(2 by Pin-Headers), · 4x ports 2.0 (Pin-headers),
Hardware Monitoring	iSmart 3.0, Monitors system/CPU temperature and voltage status
Watchdog Timer	Generates system reset; 256 levels
Digital I/O	4 in and 4 out
Edge Connectors	DB15 x1 for VGA, RJ45 x 2 for LAN 1 & 2, USB x2
Dimensions	338mm x 126mm (13.31" x 4.96")
Power Consumption	TBC
