IBR210

Name: IBR210
Brand: IBASE Technology
SKU: IBR210
Availability: InStock

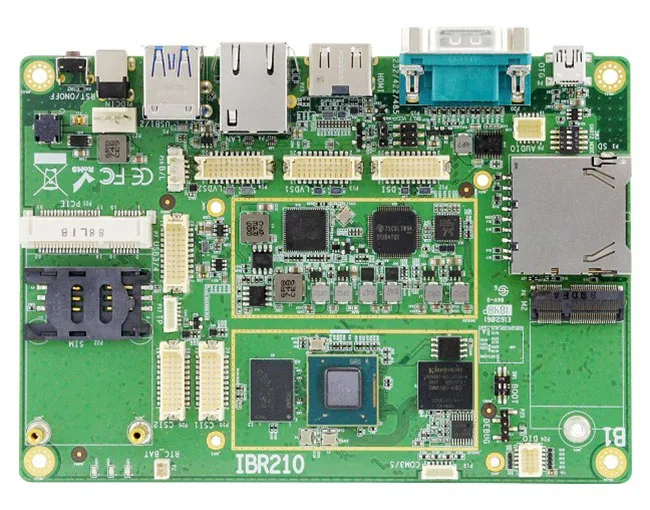

IBR210 - Low-Power Multimedia IoT 3.5 SBC RISC ARM ANDROID with NXP ARM Cortex-A53/Cortex-M4 i.MX 8M Quad 1.3GHz Processor

IBR210 - Low-Power Multimedia IoT 3.5 SBC RISC ARM ANDROID with NXP ARM Cortex-A53/Cortex-M4 i.MX 8M Quad 1.3GHz Processor. Local warranty support and engineering customization available on request.

CPU

NXP i.MX 8M Dual/Quad Cortex-A53 and Cortex-M4, 1.3GHz

MEMORY

3GB LPDDR4 on board

DISPLAY

1x Dual Channel LVDS (FHD) · 1x HDMI V2.0a

OPERATING TEMP.

-20°C ~ 80°C (-4°F ~ 176°F)

REQUEST QUOTE REQUEST DATASHEET

P/N # IBR210

Specifications

16 ROWS

Form Factor	3.5-inch Disk-Size SBC
Processor	NXP i.MX 8M Dual/Quad Cortex-A53 and Cortex-M4, 1.3GHz
System Memory	3GB LPDDR4 on board
Flash Memory	16GB eMMC on board
Display	1x Dual Channel LVDS (FHD) · 1x HDMI V2.0a
Video Codec	4Kp60 HEVC/H.265 main, and main 10 decoder · 4Kp60 VP9 decoder · 4Kp30 AVC/H.264 decoder · 1080p60 MPEG-2, MPEG-4p2, VC-1, VP8, RV9, AVS, MJPEG, H.263 decoder
Graphics	GC7000Lite · OpenGL ES 1.1, 2.0, 3.0, 3.1, Open CL 1.2, and Vulkan
Edge I/O	1x RJ45 GbE LAN · 2x USB 3.0 Type-A · 1x USB OTG (mini-USB Type-B) · 1x HDMI V2.0a · 1x RS232/422/485 (D-SUB 9 male connector) · 1x SD socket (UHS-I SDR-104, 104MB/s max.) · 1x On/Off button
Internal I/O	1x Dual channel LVDS · 1x Backlight, 3.3V/1A, 5V/1A, 12V/1A (jumper selection) · 1x MIPI-DSI (210 pin header) · 2x MIPI-CSI (210 pin header) · 2x USB3.0 header · 1x M.2 Key-E (2230) w/ USB, SDIO, UART, PCI-E · 1x Mini PCI-E w/ SIM socket · 1x IC header · 1x 2-wire RS232 header (for Debug Console Port) · 2x 2-wire RS232 header · 1x Audio header (Line-in and Line-out) · 8x GPIO (2*5 pin header 1.0mm) · 3x Green LEDs (for power On/Off, wireless status, and programmable)
Watchdog	256 Levels, 0~128 secs
Dimensions	147mm x 102mm (5.8 x 4)
Power Input	12V~24V DC-in Jack and Internal Header
Operating Temperature	-20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity	10%~90% (non-condensing)
OS Support	Yocto v2.5, Android 9 · UBUNTU 18.04 evaluation · Other OS supports by request
Certification	CE/FCC Class B

Features

5 ROWS

Feature 1	With NXP CortexTM-A53/Cortex-M4, i.MX 8M Quad 1.3GHzC Processor
Feature 2	Supports 4K HDMI, dual channel FHD LVDS
Feature 3	Supports 3GB LPDDR4, 16GB eMMC and SD socket
Feature 4	Supports embedded I/O for COM, GPIO, USB3.0, USB-OTG, Audio and Ethernet
Feature 5	Supports M.2 Key-E (2230) and mini-PCI-E with SIM socket for wireless/4G/LTE connectivity
