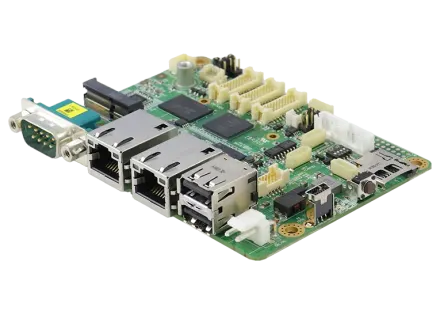

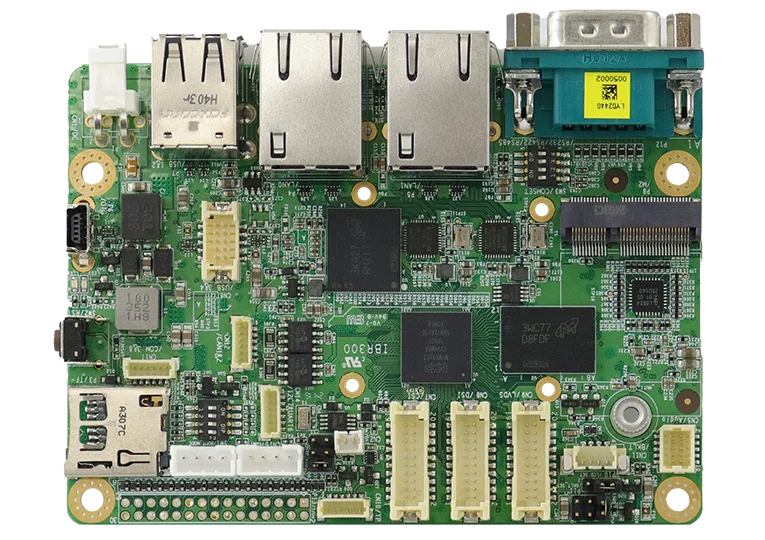

IBR300

AI Edge Board with NXP i.MX 93 - ARM Cortex-A55 Dual Core Processor

AI Edge Board with NXP i.MX 93 - ARM Cortex-A55 Dual Core Processor. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

NXP Cortex®-A55 i.MX 93 Dual Core industrial-Grade SoC operating up to 1.7 GHzMCU: Cortex®-M33 CPU operating up to 250 MHzNPU: ARM Ethos®-U65 microNPU (256 MACs operating up to 1.0 GHz and 2 OPS/MAC)

MEMORY

System memory: 2GB LPDDR4 on board (option: 4GB)Data Memory: 32GB eMMC on board (up to 256GB)

STORAGE

uSDHC (eMMC/SD)

DISPLAY

1x LVDS (4-lane)1x MIPI-DSI (4-lane, 1080p60)

AI Edge BoardAI Computing Platform

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # IBR300 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

26 ROWS

Form Factor	2.5-inch SBC
CPU Type	NXP Cortex®-A55 i.MX 93 Dual Core industrial-Grade SoC operating up to 1.7 GHzMCU: Cortex®-M33 CPU operating up to 250 MHzNPU: ARM Ethos®-U65 microNPU (256 MACs operating up to 1.0 GHz and 2 OPS/MAC)
CPU Socket	N/A
PCH	N/A
Memory	System memory: 2GB LPDDR4 on board (option: 4GB)Data Memory: 32GB eMMC on board (up to 256GB)
BIOS	N/A
H/W Monitor	N/A
Graphics	Pixel processing pipeline (PXP) engine to support 2D image processing
Display	1x LVDS (4-lane)1x MIPI-DSI (4-lane, 1080p60)
Image Capture Interface	1x MIDI-CSI (2-lane, 1080p30)
Video Codec	N/A
I/O Chipset	Cortex®-A55 i.MX93 Dual Core industrial-Grade SoC operating up to 1.7 GHzCortex®-M33 CPU operating up to 250 MHz
Watchdog	256 levels, 0~128 Secs

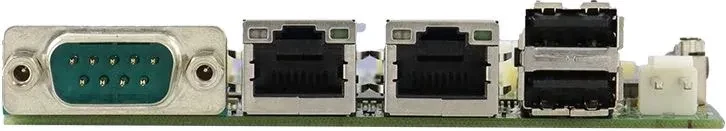

External I/O	2x USB2.0 (Type-A)1x Reset button1x 12V~24V DC-IN jack2x Gigabit LAN port1x COM port for RS-232/422/4852x RJ45 GbE LAN
Internal I/O	2x USB 2.0 (2x5-pin wafer connector)1x Debug COM port2x COM port (RS-232,3-pin header)2x CAN FD pin header1x I2C / 1x UART pin header1x Audio Line-in and Line-out (6-pin header)1x RTC battery pin header1x DC power (4-pin header)1x Pin DIP switch2x Green LED for power on/off1x M.2 E-Key (2230) for WiFi/BT module1x Micro SD slot1x I2C1x UART
Expansion IO	N/A
TPM	Yes (sTPM)
Storage	uSDHC (eMMC/SD)
Dimensions	105mm(W) x 72mm(D) (4.13” x 2.83”)
Others	N/A
Power Consumption	6.94 W
Operating Temperature	-40°C~85°C (-40°F ~185°F)
Storage Temperature	-40°C~85°C (-40°F ~185°F)
Relative Humidity	0 % to 90 % RH at 60° C (non-condensing)
Certification	CE/ FCC Class-B
Operating System	Yocto 5.0Support for other OS available upon request
