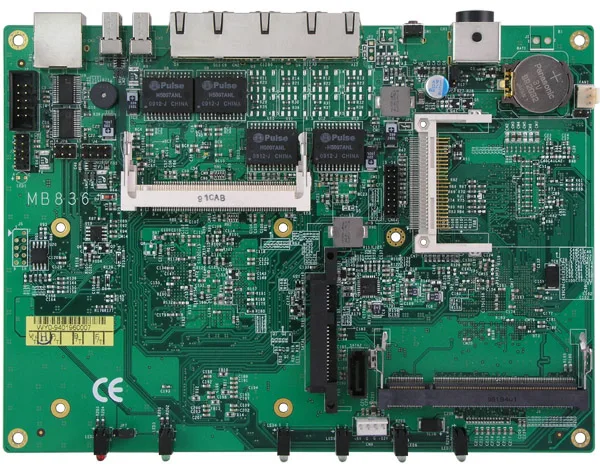

MB836

Name: MB836
Brand: IBASE Technology
SKU: MB836
Availability: InStock

Intel® Atom N270 5.25 Disk-Size SBC

Intel® Atom N270 5.25 Disk-Size SBC. Local warranty support and engineering customization available on request.

CPU

Intel® Atom N270 Single Core processor · 1.60GHz speed

MEMORY

One DDR2 sockets support up to 2GB DDR2 SDRAM · PC533 DDR2 SDRAM

STORAGE

-20°C~80°C (-4°F~176°F)

ETHERNET

4x Realtek 8111C PCI-E Gigabit LAN · Optional LAN bypass function on LAN1 and LAN2

P/N # MB836

23 ROWS

CPU	Intel® Atom N270 Single Core processor · 1.60GHz speed
CPU Front Side Bus ( FSB )	533MHz
Chipset	Intel® 945GSE · ICH7M
BIOS	Award BIOS, ACPI supported
System Memory	One DDR2 sockets support up to 2GB DDR2 SDRAM · PC533 DDR2 SDRAM
Integrated VGA	Intel® 945GSE integrated Graphics Media Accelerator (GMA 950) supports CRT
LAN	4x Realtek 8111C PCI-E Gigabit LAN · Optional LAN bypass function on LAN1 and LAN2
Audio	Onboard buzzer only
LPC I/O	Winbond W83627EHG chipset, Fintek 81216DG · 1x IDE, 1x KB, 1x mouse, 4x COM, 2x SATA
Serial Ports	Two RS-232 COM ports
Serial ATA	Supports 2 SATA ports
USB (2.0)	Supports 4 USB ports
Keyboard and Mouse Connector	Pin header
Power Connector	DC power jack for +12V/+19V DC-in
Expansion Slots	1x PCI, 1x PCI-E (x1), 1x Mini PCI)
Edge Connectors	DC-in power connector, 4x RJ-45, 2x USB, COM1
Other Features	1x CF socket, 1x Mini PCI slot
Form Factor	5.25-inch SBC
Dimensions	203mm x 146mm
Power Consumption	Intel® Atom N270 1.6GHz · w/ 1GB DDR2-667 · +12V: 1.38A
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10%~90% (non-condensing)
