IOPS302
DIGITAL SIGNAGE / IN STOCK

IOPS302

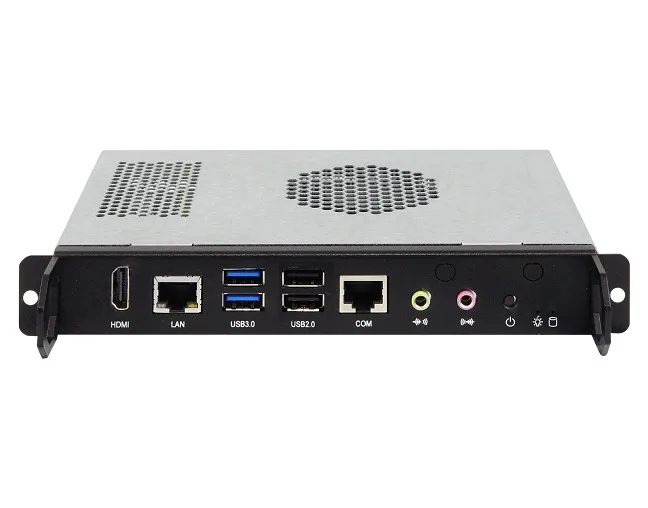

IOPS-302 - OPS Signage Player with Next-Gen AMD Radeon™ HD Graphics 3rd Gen AMD Embedded R and G Series APU-based

IOPS-302 - OPS Signage Player with Next-Gen AMD Radeon™ HD Graphics 3rd Gen AMD Embedded R and G Series APU-based. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

CPU
AMD R and G -Series 28nm Quad-Core/Dual-Core APU
MEMORY
2x DDR4-2133 SO-DIMM, dual channel, Max. 32 GB
STORAGE
1x M.2 M-Key (2280)
DISPLAY
Next-gen AMD Radeon™ HD GPU integrated
Legacy catalogueIBASE Technology
REQUEST QUOTE REQUEST DATASHEET
MFR. PART # IOPS302 — IBASE Technology

Specifications

24 ROWS
System MainboardOPS302
CPU TypeAMD R and G -Series 28nm Quad-Core/Dual-Core APU
CPU PackageFP4 BGA package, 37mm x 29mm, 0.8mm pitch
ChipsetAMD integrated Soc
Memory2x DDR4-2133 SO-DIMM, dual channel, Max. 32 GB
GraphicsNext-gen AMD Radeon™ HD GPU integrated
LAN1x Realtek RTL8111G Gigabit LAN controller
Expansion Slots1x M.2 E-Key (2230) for Wi-Fi or Bluetooth options

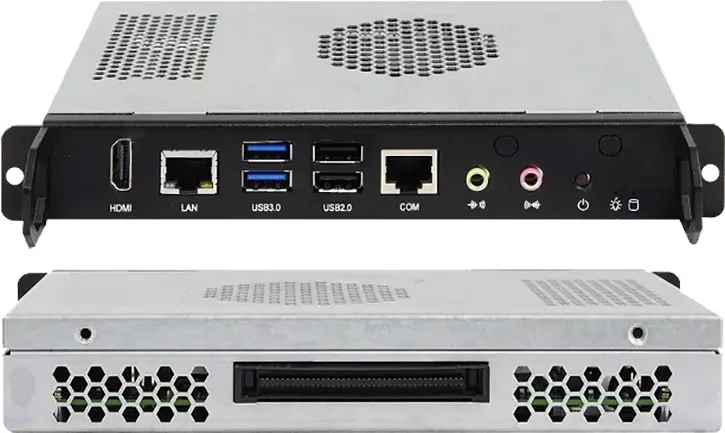

I/O Interface1x HDMI 1.4b · 2x USB 3.0 · 2x USB 2.0 · 1x RJ45 for Gigabit LAN · 1x RJ45 for RS232 serial port · 2x audio connectors for Line-in / Line-out · Power / HDD LED, 1x power on/off button
Auto Control and MonitoringWatchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement+12~19V DC
ConstructionSGCC
Weight0.9 kgs (1.98 lbs)
Chassis ColorBlack and gray
Storage1x M.2 M-Key (2280)
Power SupplyPower Requirement: DC-in +12V~+19V · (Intel® OPS standard)
MountingOPS standard bracket
Dimensions200mm(W) x 119mm(D) x 30mm(H) · 7.87(W) x 4.69(D) x 1.18(H)
Operating System SupportMicrosoft Windows® 7/STD7/8.1+/STD8/10/10-IoT (32/64-bit) and Linux Open Source (64-bit)
Operating Temperature0°C~ 40°C (32°F~104°F)
Storage Temperature-20°C ~ 80°C (-4°F~176°F)
Relative Humidity5%~90% @45oC (non-condensing)
VibrationSSD: 5 grms / 5~500Hz / random operation
CertificationCE, FCC class B

Features

8 ROWS
Feature 1iSMART - for EuP/ErP power saving, auto-scheduling and power resume
Feature 2Supports 3rd Generation AMD Embedded R and G series APU
Feature 32x DDR4-2133 SO-DIMM, dual channel, Max 32 GB
Feature 41x HDMI
Feature 51x Line out / 1x Mic in
Feature 61x RJ45 for Gigabit LAN / 1x RJ45 for COM port
Feature 72x USB 3.0 ports ; 2x USB 2.0 ports
Feature 81x M.2 E-Key(2230) for Wi-Fi or Bluetooth options

Ordering Information

2 ROWS
iOPS-302- OPS System with AMD GX-224IJ 2.4GHz APU, with 1x4 GB DDR4 2133 SO-DIMM memory, M.2 128GB storage
iOPS-DK1- iOPS-76/302/602 series Expansion Dock with 150W adaptor for use without OPS display
