CANADA · NORTH AMERICA
SI-121-N
DIGITAL SIGNAGE / IN STOCK

SI-121-N

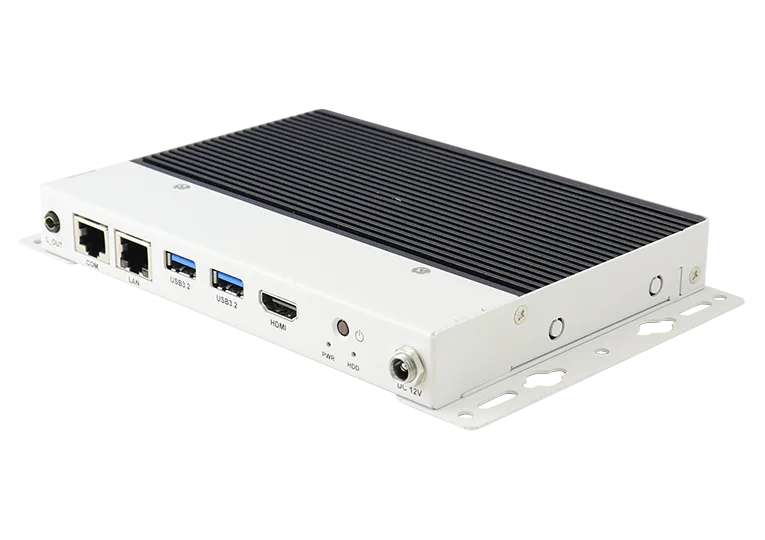

Intel® Core® Processor N-Series (Twin Lake) Fanless Signage Player with Intel® Graphics built-in and One HDMI 2.0b

Intel® Core® Processor N-Series (Twin Lake) Fanless Signage Player with Intel® Graphics built-in and One HDMI 2.0b. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU
Intel® N-Series (Twin Lake) Processors
MEMORY
1x SO-DIMM DDR5 4800 MHz, Max. 32GB
STORAGE
1x M.2 M-key (2280) (NVMe / SATA)
ETHERNET
1x 1.0 Gb LAN with optional OOB/In-band optional function support
1 Display OutputsEntry Level Signage Player
MFR. PART # SI-121-NIBASE Technology · VIEW MANUFACTURER PAGE

Specifications

24 ROWS
System MainboardMBD121
CPUIntel® N-Series (Twin Lake) Processors
CPU SocketFCBGA1264
ChipsetIntegrated
Memory1x SO-DIMM DDR5 4800 MHz, Max. 32GB
GraphicsIntel® Graphics
LAN1x 1.0 Gb LAN with optional OOB/In-band optional function support
Expansion Slots1x M.2 M-key (2280) for storage1x M.2 B-key (3052) for 5G/LTE1x SIM card slot
I/O Interface1 x HDMI 2.0b2x USB 3.2 (with 1x PDPC function included)1x RJ45 for Gigabit LAN1x RJ45 for RS-232 serial port1x Audio connector for Line-out1x Power Button1x Power Jack (+12V DC)2x LED for Power & Storage
Auto Control and MonitoringWatchdog Timer: 256 segments, 0, 1, 2…255 (sec / min)
Power Requirement+12V DC
ConstructionAluminum + SGCC
Weight1.0 kg (2.2 lbs)
Chassis ColorBlack & White
Storage1x M.2 M-key (2280) (NVMe / SATA)
Power Supply50W power adaptor
MountingStandard system bracket
Dimensions170mm(W) x 123mm(D) x 22.5mm(H)
Operating Temperature0°C~ 45°C (32°F~113°F)
Storage Temperature-20° ~ 80°C (-4°F~176°F)
Relative Humidity10%~90% (non-condensing)
Vibration1Grms/3~500Hz/ Random operation
CertificationCE, FCC Class B, cULus
Operating SystemWindows 11 IoT Enterprise LTSCLinux Ubuntu 64-bit
