SI-212-N
DIGITAL SIGNAGE / IN STOCK

SI-212-N

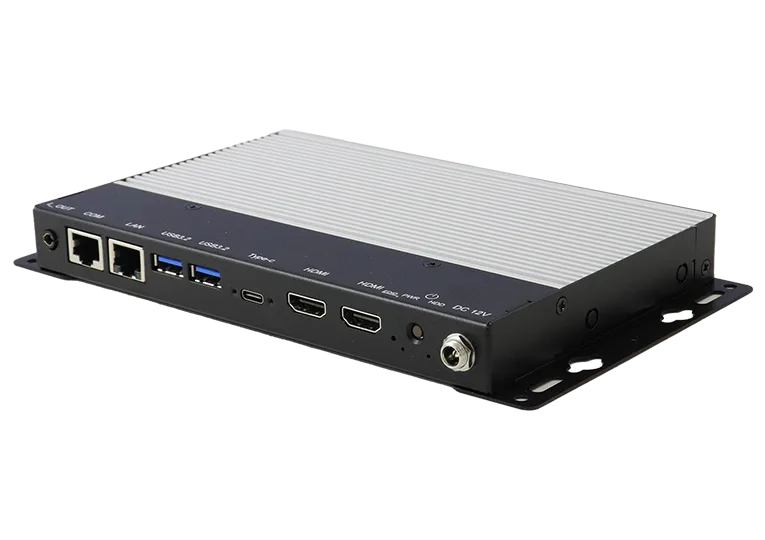

Intel® Atom® x7000E & x7000RE Series/ N-series/ Core™ i3-N305 Processor (formerly Amston Lake / Alder Lake-N) Fanless Signage Player with 2x HDMI 2.0

Intel® Atom® x7000E & x7000RE Series/ N-series/ Core™ i3-N305 Processor (formerly Amston Lake / Alder Lake-N) Fanless Signage Player with 2x HDMI 2.0. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU
Intel® Atom® x7000E & x7000RE Series/ N-series/ Core™ i3-N305 processor (formerly Amston Lake / Alder Lake-N)
MEMORY
1x DDR5 5600 SODIMM / Max. 16GB (Maximum data rate DDR5-4800) (w/o ECC supported)
STORAGE
1x M.2 M-key (2280)
ETHERNET
1x Gigabit LAN
2 Display Outputs Signage…Entry Level Signage Player
REQUEST QUOTE DATASHEET (PDF)
MFR. PART # SI-212-N — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

24 ROWS
System MainboardMBD212
CPUIntel® Atom® x7000E & x7000RE Series/ N-series/ Core™ i3-N305 processor (formerly Amston Lake / Alder Lake-N)
CPU SocketFCBGA1264
ChipsetIntegrated
Memory1x DDR5 5600 SODIMM / Max. 16GB (Maximum data rate DDR5-4800) (w/o ECC supported)
GraphicsGen 12 UHD Gfx, up to 32EU
LAN1x Gigabit LAN
Expansion Slots1x M.2 2280 socket (M-key, supports NVMe with PCI-E (2x) or SATA)1x M.2 2230 socket (E-key, supports CNVi) w/ PCI-E(1x) & USB 2.0)
I/O Interface2x HDMI 2.0b2x USB 3.2 (USB Type-A)1x USB (type-C)1x RJ45 for Gigabit LAN1x RJ45 for RS232 serial port1x Audio connectors for Line out1x Power button1x Power jack (+12V DC)2x LED for power & storage
Auto Control and MonitoringWatchdog Timer: 256 segments, 0, 1, 2…255 (sec/ min)
Power Requirement+12V DC
ConstructionAluminum + SGCC
Weight1.0 kg (2.2 lbs)
Chassis ColorBlack & White
Storage1x M.2 M-key (2280)
Power Supply50W power adapter
MountingStandard system bracket
Dimensions217mm(W) x 123mm(D) x 22.5mm(H)8.54”(W) x 4.84”(D) x 0.88”(H)
Operating Temperature0°C~45°C (32°F~113°F) for SI-212-N-20°C~60°C (-4°F~140°F) for SI-212-N33RE
Storage Temperature-40°C ~ 85°C (-40°F ~ 185°F)
Relative Humidity10%~90% (non-condensing)
VibrationM.2: 5 grms / 5~500Hz / random operation
CertificationCE, FCC Class-B, cULus, LVD and VCCI
Operating SystemWindows 10 IoT Enterprise, Linux Ubuntu 64-bit
