DIGITAL SIGNAGE / IN STOCK

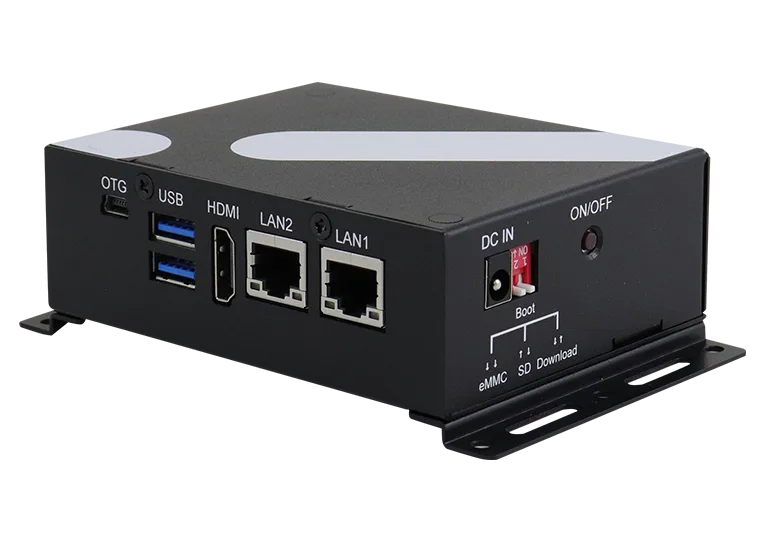

ISR215

NXP i.MX 8M Plus - ARM Cortex-A53 Quad Processor Fanless Signage Player with 1x HDMI 2.0

NXP i.MX 8M Plus - ARM Cortex-A53 Quad Processor Fanless Signage Player with 1x HDMI 2.0. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

NXP Cortex-A53 i.MX 8M Plus Quad 1.6GHz

MEMORY

3GB LPDDR4 on board

STORAGE

16GB eMMC on board (Default)

ETHERNET

2x RJ45 GbE LAN

NXP i MX8M based Signage…ARM based Signage Player

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # ISR215 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

23 ROWS

System Mainboard	IBR215-Q316I 2.5-inch SBC
CPU	NXP Cortex-A53 i.MX 8M Plus Quad 1.6GHz
Chipset	Integrated
Memory	3GB LPDDR4 on board
Graphics	GC7000ULOpenGL ES 3.1, VulkanOpen CL™ 1.2 FPVivante GC520L (2D)
LAN	2x RJ45 GbE LAN
Expansion Slots	1x M.2 B-Key (3052) w/ SIM socket (for 5G)
I/O Interface	1x HDMI 2.0a, 1080p602x USB 3.0 Type-A1x Mini-USB OTG1x On/Off button1x SD socket (UHS-I SDR-104, 104MB/s max)1x Boot select switches (boot from eMMC or SD)
Auto Control and Monitoring	Watchdog Timer:256 Levels, 0~128 Secs
Power Requirement	12V~24V DC-in
Construction	SGCC
Weight	0.5 kg (1.1 lbs)
Chassis Color	Black
Storage	16GB eMMC on board (Default)
Power Supply	60W
Mounting	DIN rail, wall mount
Dimensions	16GB eMMC on board (Up to 128GB)
Operating Temperature	-40°C~ 70°C (-40°F ~ 158°F)
Storage Temperature	-40°C~ 70°C (-40°F ~ 158°F)
Relative Humidity	10%~90% (non-condensing)
Vibration	N/A
Certification	CE/ FCC Class-B
Operating System	Yocto v3.0Android 11Support for other OS available upon request
