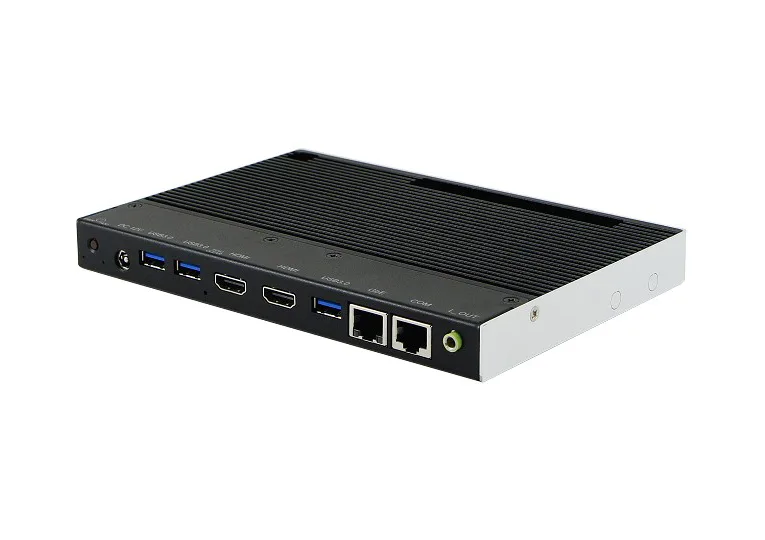

SE-102-N
Intel® Atom® x7/x5 / Pentium® & Celeron® Processor Fanless Signage Player with 2x HDMI
Intel® Atom® x7/x5 / Pentium® & Celeron® Processor Fanless Signage Player with 2x HDMI. Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | MBD102 |
|---|---|
| CPU | Intel® Atom® x7/x5, Pentium® & Celeron® Processors |
| CPU Socket | FCBGA1296 |
| Chipset | SoC Integrated |
| Memory | 2x 2GB DDR3L-L1866, dual channel, Max. 8GB (Non-ECC, Unbuffered)DDR3L-1600 for N3350 only |
| Graphics | Intel® HD Graphics 505 |
| LAN | 1x Intel® I210IT Gigabit LAN controller for EXXXX series1x Intel® I210AT Gigabit LAN controller for NXXXX series |
| Expansion Slots | 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth or 4G options1x SIM card slot |
| I/O Interface | 2x HDMI 1.4b with hardware EDID emulation3x USB 3.0 port1x RJ45 for Gigabit LAN1x RJ45 for RS232 serial port1x Audio connectors for / Line-out1x Power / HDD LED1x power on / off button1x DC jack |
| Auto Control and Monitoring | Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min) |
| Power Requirement | +12V DC |
| Construction | Aluminum + SGCC |
| Weight | 0.9 kg (1.98 Ibs) |
| Chassis Color | Black and white |
| Storage | 1x mSATA |
| Power Supply | 60W power adaptor |
| Mounting | Standard system bracket |
| Dimensions | 190mm(W) x 130mm(D) x 19.5mm(H)7.48" (W) x 5.12" (D) x 0.77" (H) |
| Operating Temperature | -40°C ~70°C (-40°F ~ 158°F) for SE-102-N0°C ~ 45°C (32°F ~ 113°F) for SE-102-N420 |
| Storage Temperature | -40°C ~ 110°C (-40°F ~ 230°F) |
| Relative Humidity | 5%~90% @45oC (non-condensing) |
| Vibration | SSD: 5 grms / 5~500Hz / random operation |
| Certification | CE, FCC class-B, cULus, LVD |
| Operating System | Windows10 / Linux |

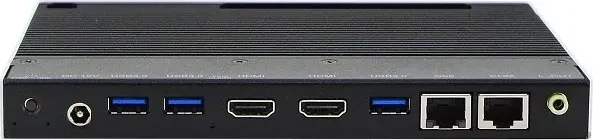

I/O — Rear panel
Front access
Where the SE-102-N is deployed
Unattended media players for retail, transit, and wayfinding displays.
Multi-display outputs driving large-format and multi-panel video walls.
Touch-enabled signage for interactive wayfinding and self-service.
Sunlight-readable, sealed players for outdoor and semi-outdoor signage.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
