SE-103-N
DIGITAL SIGNAGE / IN STOCK

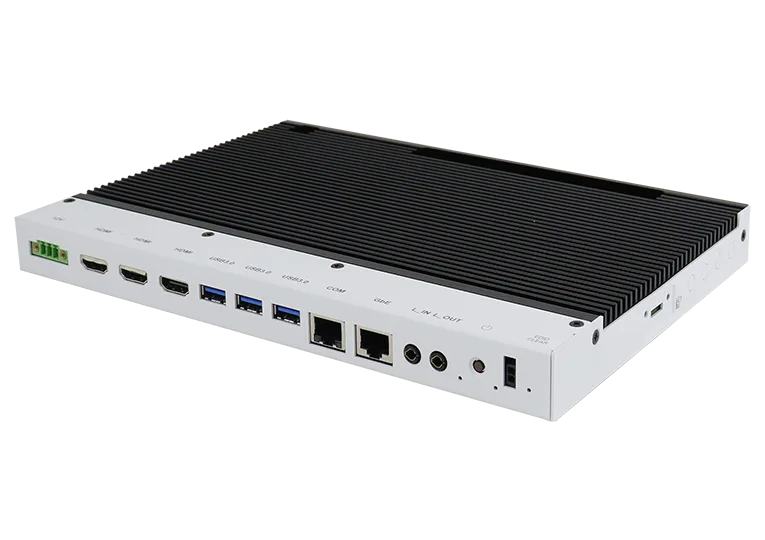

SE-103-N

Intel® Atom® x6000 / Pentium® / Celeron® Processor Fanless Signage Player with Intel® Graphics and 3x HDMI

Intel® Atom® x6000 / Pentium® / Celeron® Processor Fanless Signage Player with Intel® Graphics and 3x HDMI. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU
Intel® Atom® x6425E (2.0~3.0GHz)Intel® Celeron® N6210 (1.2~2.6GHz)
MEMORY
2x DDR4-3200 SO-DIMM, dual channel, Max. 32GB, supports IBECC for x6000 Series CPU
STORAGE
1x M.2 M-Key (2280)
ETHERNET
1x Intel® I225IT 2.5GbE LAN for Atom® x6000 series1x Intel® I225V 2.5GbE LAN for Celeron®/ Pentium®
Outdoor Signage PlayerOutdoor Waterproof Signage…
REQUEST QUOTE DATASHEET (PDF)
MFR. PART # SE-103-N — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

24 ROWS
System MainboardMBD103
CPUIntel® Atom® x6425E (2.0~3.0GHz)Intel® Celeron® N6210 (1.2~2.6GHz)
CPU SocketFCBGA1493
ChipsetSoC Integrated
Memory2x DDR4-3200 SO-DIMM, dual channel, Max. 32GB, supports IBECC for x6000 Series CPU
GraphicsIntel® UHD Graphics for 10th Gen Intel® Processors
LAN1x Intel® I225IT 2.5GbE LAN for Atom® x6000 series1x Intel® I225V 2.5GbE LAN for Celeron®/ Pentium®
Expansion Slots1x M.2 E-Key (2230)1x M.2 B-Key (3052)1x UIM/SIM card slot

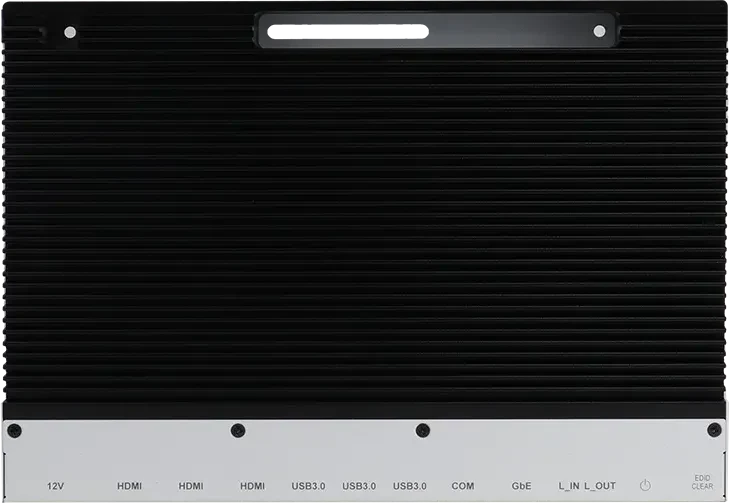

I/O Interface3x HDMI 2.0b3x USB1x RJ45 for 2.5GbE LAN1x RJ45 for serial port (RS232/422/485)2x Audio connectors for Line-in / Line-out1x Power button1x Terminal block for power port1x UIM/SIM card slot1x Power / HDD LED4x DI, 4x DO pin header (w/o isolation) (Internal)
Auto Control and MonitoringWatchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement+12V DC
ConstructionAluminum + SGCC
Weight1.7 kg (3.75 lbs)
Chassis ColorBlack & White
Storage1x M.2 M-Key (2280)
Power Supply60W power adaptor
MountingStandard system bracket
Dimensions260mm(W) x 181.4mm(D) x 25mm(H)10.24”(W) x 7.14”(D) x 0.98”(H)
Operating Temperature-20°C ~70°C (-29°F ~ 158°F) for SE-103-N0°C ~45°C (0°F ~ 140°F) for SE-103-N10
Storage Temperature-20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity10%~90% (non-condensing)
VibrationSSD: 5 grms / 5~500Hz / random operation
CertificationCE, FCC class-B, UKCA, cULus
Operating SystemWin10 IoT Enterprise (64-bit)Linux Ubuntu (64-bit)
