DIGITAL SIGNAGE / IN STOCK

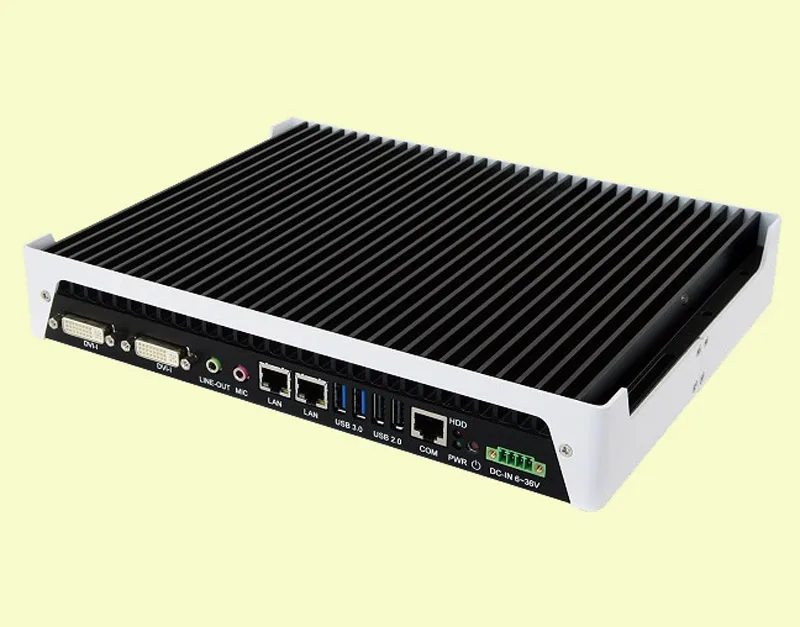

SE602N

SE-602-N Rugged In-Vehicle Digital Signage System with Wide-Range DC Power Input base system with Intel® Core™ i7-5650U or i5-5350U

SE-602-N Rugged In-Vehicle Digital Signage System with Wide-Range DC Power Input base system with Intel® Core™ i7-5650U or i5-5350U. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

CPU

5th Gen. Intel® Core™ i7/i5 ULT Processors

MEMORY

2x DDR3L-1600 SO-DIMM Max. 16GB

STORAGE

1x 2.5” HDD/SSD · 1x mSATA · 1x NGFF M key 22 x 80mm (2280)

DISPLAY

Intel® HD graphics engine

Legacy catalogueIBASE Technology

REQUEST QUOTE REQUEST DATASHEET

MFR. PART # SE602N — IBASE Technology

Specifications

23 ROWS

System Mainboard	MBD602
CPU Type	5th Gen. Intel® Core™ i7/i5 ULT Processors
CPU Socket	FCBGA1168
Chipset	SoP (System-on-Package)
Memory	2x DDR3L-1600 SO-DIMM Max. 16GB
Graphics	Intel® HD graphics engine
LAN	1x GbE with Intel® 218LM PHY · 1x GbE with Intel® 210IT PCI-E
Expansion Slots	1x Mini PCI-E(x1) slot for Wi-Fi/ Bluetooth/ TV tuner/ 4G / · LTE Wireless options · 1x SIM card slot · 2x M2(NGFF) slots for SSD storage/ · Wi-Fi/ Bluetooth/ 4G/LTE/ TV tuner options
Chassis Color	Black and white
Storage	1x 2.5” HDD/SSD · 1x mSATA · 1x NGFF M key 22 x 80mm (2280)
I/O Interface	2x DVI-I with EDID emulation function · 2x USB 2.0 · 2x USB 3.0 · 1x RJ45 for RS-232 serial port · 2x Microjack audio connectors for Mic-in / Line-out · Power / HDD LED, 1x power on/off button · 1x 4-pin 7V~36V DC terminal block
Auto Control and Monitoring	Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement	7V~36V DC-in
Construction	Aluminum + SGCC
Weight	3.7 Kg (8.16lbs)
Power Supply	Optional
Mounting	Standard system bracket
Dimensions	280mm(W) x 216mm(D) x 46mm(H) · 11.02”(W) x 8.5”(D) x 1.81”(H)
Operating Temperature	-40°C~ 75°C (-40°F~167°F) with SSD w/o Wi-Fi or 4G/LTE
Storage Temperature	-50°C~85°C (-58°F~185°F) with SSD
Relative Humidity	5~90% @ 45°C, (non-condensing)
Vibration	mSATA: 5 grms / 5~500Hz / random operation
Certification	CE, FCC, CCC, UL and e24 Mark

Features

7 ROWS

Feature 1	Supports power management (ignition sensing startup, shutdown delay and low power protection setting) function
Feature 2	Supports 5th Gen. Intel® Core™ i7/i5 ULT Processors with integrated Intel® HD graphics engine
Feature 3	iAMT for remote management
Feature 4	2x M2(NGFF) and 1x Mini PCI-E(x1) slots for optional SSD storage devices, Wi-Fi, Bluetooth, 4G/LTE or TV tuner
Feature 5	7V~36V DC wide-range power input
Feature 6	Wide operating temperature from -40°C to 75°C
Feature 7	Ruggedized, fanless and all solid state design
