DIGITAL SIGNAGE / IN STOCK

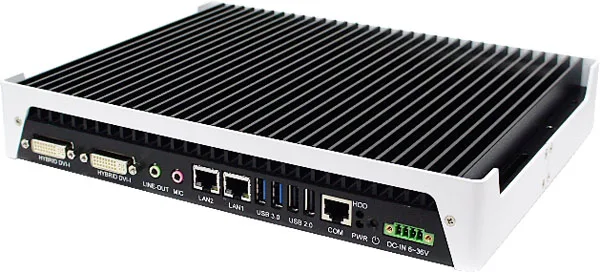

SE92

Outdoor/In-vehicle Signage Player for wide temperature (-40°C to 75°C) with Intel® Core™ I7-5650U ULT processors 8Gb-DDR3L and 64GB SSD wide temp

Outdoor/In-vehicle Signage Player for wide temperature (-40°C to 75°C) with Intel® Core™ I7-5650U ULT processors 8Gb-DDR3L and 64GB SSD wide temp. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

CPU

5th Gen. Intel® Core™ i7/i5 ULT Processors

MEMORY

2x DDR3L-1600 SO-DIMM Max. 16GB

STORAGE

1x 2.5” HDD/SSD · 1x mSATA · 1x NGFF M key 22 x 80mm (2280) · 7V~36V DC-in

DISPLAY

Intel® HD graphics engine

Legacy catalogueIBASE Technology

REQUEST QUOTE REQUEST DATASHEET

MFR. PART # SE92 — IBASE Technology

Specifications

16 ROWS

System Mainboard	IB912(P)
CPU Type	5th Gen. Intel® Core™ i7/i5 ULT Processors
CPU Socket	FCBGA1168
Chipset	SoP (System-on-Package)
Memory	2x DDR3L-1600 SO-DIMM Max. 16GB
Graphics	Intel® HD graphics engine
LAN	1x GbE with Intel® 218LM PHY · 1x GbE with Intel® 210IT PCIe
Expansion Slots	1x Mini PCI-E(x1) slot for Wi-Fi/ Bluetooth/ TV Tuner/ 3G / · LTE Wireless options · 1x SIM card slot · 2x M2(NGFF) slots for Solid State Storage Devices (SSD)/ · Wi-Fi/ Bluetooth/ 3G/LTE/ TV tuner options
Watchdog Timer	256 segments, 0, 1, 2...255 (sec/min)
Construction	Aluminum + SGCC
Weight	4.5 kgs(9.92lbs)
Chassis Color	Black and White
Storage	1x 2.5” HDD/SSD · 1x mSATA · 1x NGFF M key 22 x 80mm (2280) · 7V~36V DC-in
Mounting	Standard system bracket
Dimensions	280mm(W) x 216mm(D) x 44mm(H) · 11.2”(W) x 8.64”(D) x 1.76”(H) · -40°C~ 75°C (-40°F~167°F) with SSD w/o WiFi or 3G/LTE · -50°C~85°C (-58°F~185°F) with SSD
Relative Humidity	5~90% @ 45°C, (non-condensing) · 5 grms / 5~500Hz / random operation · CE, FCC, CCC, UL and e13 Mark

Features

9 ROWS

Feature 1	SE-92 with iSMART 3.0 support (on/off auto-scheduling and power-resume)
Feature 2	SE-92I with power management (ignition sensing startup, shutdown delay and low power protection setting)
Feature 3	Supports 5th Generation Intel® Core™ i7/i5 ULT Processors with integrated Intel® HD graphics 6000
Feature 4	2x DVI-I with EDID emulation function
Feature 5	Intel® AMT 10.0 for remote management1
Feature 6	2x M.2(NGFF) and 1x Mini PCIe(x1) slots for optional Solid State Storage Devices (SSD), Wi-Fi, Bluetooth, 3G/LTE or TV tuner
Feature 7	7V~36V DC wide-range power input
Feature 8	Wide operating temperature support from -40°C to 75°C
Feature 9	Ruggedized, fanless and all solid state design
