SI 626
DIGITAL SIGNAGE / IN STOCK

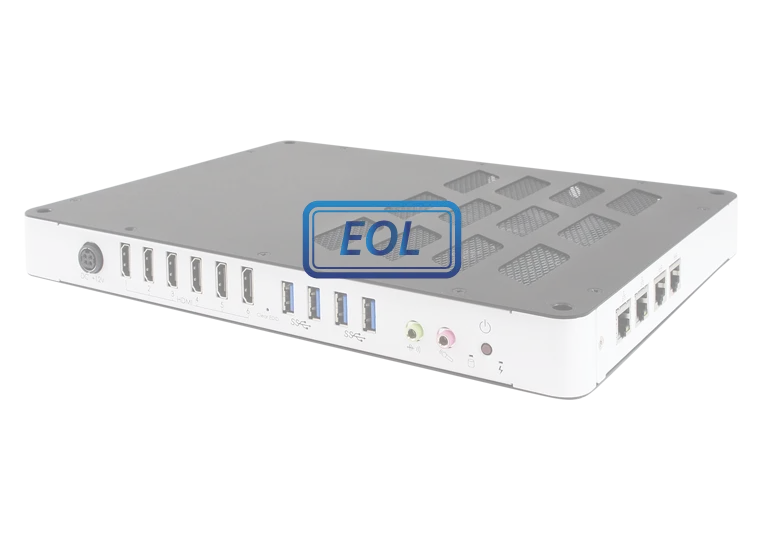

SI 626

7th/6th Gen Intel® Core™ Mobile Processor Video Wall Signage Player with AMD Radeon E8860 Graphics and 6x HDMI

7th/6th Gen Intel® Core™ Mobile Processor Video Wall Signage Player with AMD Radeon E8860 Graphics and 6x HDMI. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU
7th/6th Generation Intel® Core™ mobile processor TDP <=35W
MEMORY
2x DDR4-2133 SO-DIMM, Dual channel, Max. 32GB
STORAGE
1x 2.5" SSD/HDD
ETHERNET
2x Realtek RTL8111H-CG Gigabit LAN controller
6 Display OutputsExtreme Performance Signage…
REQUEST QUOTE DATASHEET (PDF)
MFR. PART # SI_626 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

24 ROWS
System MainboardMBD626
CPU7th/6th Generation Intel® Core™ mobile processor TDP <=35W
CPU SocketFCBGA1440
ChipsetHM170/ QM170 PCH
Memory2x DDR4-2133 SO-DIMM, Dual channel, Max. 32GB
GraphicsAMD Radeon™ E8860 GPU
LAN2x Realtek RTL8111H-CG Gigabit LAN controller
Expansion Slots1x Mini PCI-E (full-size)1x M.2 E-Key (2230)1x M.2 M-Key (2280)1x SIM card slot
I/O Interface6x HDMI 1.4 with hardware EDID emulation4x USB 3.02x RJ45 for Gigabit LAN2x RJ45 for RS-232 serial port1x Audio connector for Line-out/Mic-in1x Power / HDD LED1x Power button1x Power jack connector
Auto Control and MonitoringWatchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement+12V DC
ConstructionAluminum + SGCC
Weight2.2 kg (4.85 Ibs)
Chassis ColorBlack and white
Storage1x 2.5" SSD/HDD
Power Supply150W power adaptor
MountingStandard system bracket
Dimensions290mm(W) x 222mm(D) x 29.9mm(H) 11.41" (W) x 8.74" (D) x 1.17" (H)
Operating Temperature0°C~45°C (32°F~113°F)
Storage Temperature-20°C~80°C (-4°F~176°F)
Relative Humidity5%~90% @45oC (non-condensing)
VibrationSSD: 5 grms / 5~500Hz / random operation
CertificationCE, FCC Class-B, cULus
Operating SystemWin7(64-bit), Win10(64-bit) Enterprise, Linux Ubuntu 64-bit
