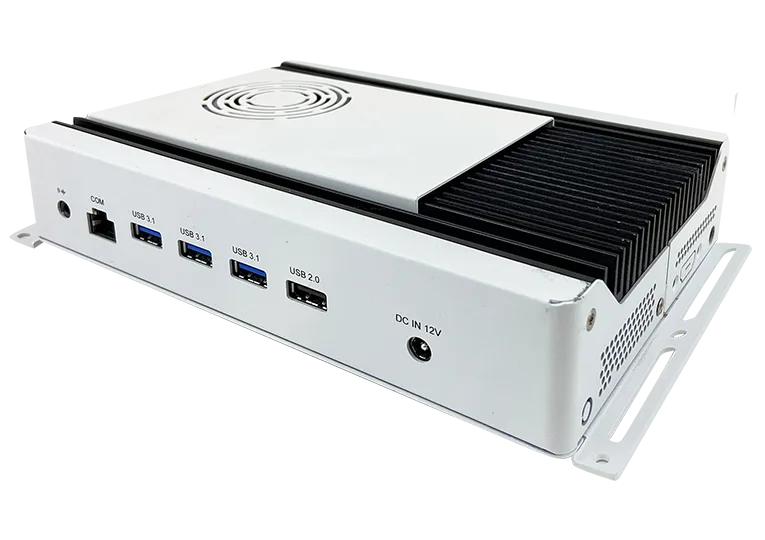

SI-654
11th Gen Intel® Core™ U-Series Processor Signage Player with Intel® SoC Integrated Graphics and 4x HDMI 2.0
11th Gen Intel® Core™ U-Series Processor Signage Player with Intel® SoC Integrated Graphics and 4x HDMI 2.0. Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | MBD654 |
|---|---|
| CPU | 11th Gen Intel® Core™ / Celeron® U-Series (TGL-U Platform) Processors |
| CPU Socket | BGA-1449 |
| Chipset | SoC Integrated |
| Memory | 2x DDR4-3200 SO-DIMM, dual channel, Max. 64GB |
| Graphics | Gen12 integrated Graphics, Up to 96EU |
| LAN | 1st: 1x Intel® I211AT/ 1210AT2nd: 1x Intel® I219LM (I7/I5)1x Intel® I219V (I3) |
| Expansion Slots | 1x M.2 E-Key (2230)1x M.2 B-Key (3042)1x UIM/SIM card slot |
| I/O Interface | 4x HDMI 2.01x USB 2.0 (USB Type-A)3x USB 3.1 @Gen 2 (USB Type-A)2x RJ45 for Gigabit LAN1x RJ45 for RS232 serial port1x Audio connector for Line-out1x Power button1x Power jack (+12V DC)2x Power/HDD LED |
| Auto Control and Monitoring | Watchdog Timer: 256 segments, 0, 1, 2…255 (sec/ min) |
| Power Requirement | +12V DC |
| Construction | Aluminum + SGCC |
| Weight | 1.8 kg (3.7 lbs) |
| Chassis Color | Black & White |
| Storage | 1x M.2 M-Key (2280) supports NVMe (PCI-E x4 / SATA) |
| Power Supply | 84W power adaptor |
| Mounting | Standard system bracket |
| Dimensions | 200.8mm(W) x 139.3mm(D) x 41.2mm(H)7.90" (W) x 5.48" (D) x 1.62" (H) |
| Operating Temperature | 0°C~45°C (32°F~113°F) |
| Storage Temperature | -20°~80°C (-4°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Vibration | M.2: 5 grms / 5~500Hz / random operation |
| Certification | CE, FCC Class-B, UKCA, cULus, LVD |
| Operating System | Windows 10 IoT Enterprise RS5(64-bit)Linux Ubuntu(64-bit) |
I/O — Rear panel
Front access
Where the SI-654 is deployed
Unattended media players for retail, transit, and wayfinding displays.
Multi-display outputs driving large-format and multi-panel video walls.
Touch-enabled signage for interactive wayfinding and self-service.
Sunlight-readable, sealed players for outdoor and semi-outdoor signage.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
