SI-663
DIGITAL SIGNAGE / IN STOCK

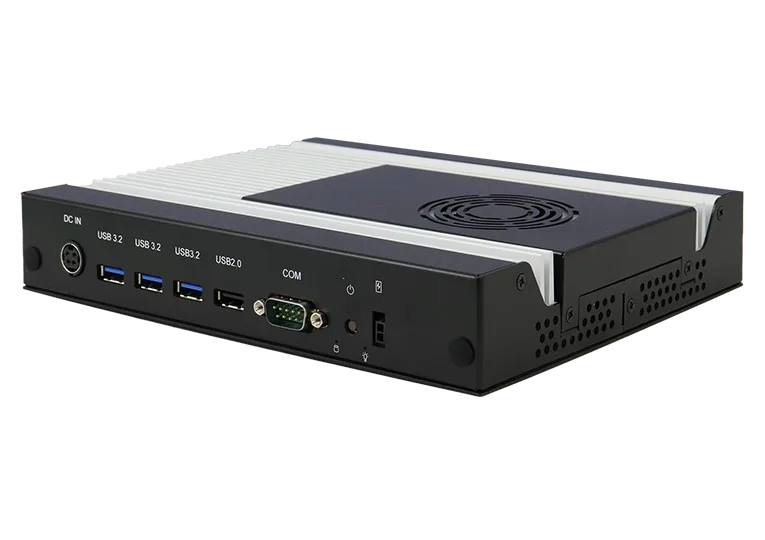

SI-663

13th/12th Gen Intel® Core™ Processor Signage Player with Intel® SoC Integrated Graphics and 1x HDMI 2.0/1x DP 1.4/1x DVI-D

13th/12th Gen Intel® Core™ Processor Signage Player with Intel® SoC Integrated Graphics and 1x HDMI 2.0/1x DP 1.4/1x DVI-D. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU
13th/12th Gen Intel® Core™ i/ Celeron™ series (Raptor Lake PS / Alder Lake PS) processor TDP ≤ 28W
MEMORY
2x DDR5 4800 SODIMM / Max. 64GB (without ECC support)
STORAGE
1x M.2 M-key (2280)
ETHERNET
1x Gb LAN (Isolation/PXE support) (Intel® 226LM 2.5Gb with LAN Wakeup)
3 Display OutputsMid Range Signage Player
MFR. PART # SI-663IBASE Technology · VIEW MANUFACTURER PAGE

Specifications

24 ROWS
System MainboardMBD663
CPU13th/12th Gen Intel® Core™ i/ Celeron™ series (Raptor Lake PS / Alder Lake PS) processor TDP ≤ 28W
CPU SocketLGA1700
ChipsetIntegrated
Memory2x DDR5 4800 SODIMM / Max. 64GB (without ECC support)
GraphicsIris@ Xe, up to 96EU
LAN1x Gb LAN (Isolation/PXE support) (Intel® 226LM 2.5Gb with LAN Wakeup)
Expansion Slots1x M.2 E-Key (2230) (WiFi-6E support) (2x PCI-E x1, USB 2.0)1x M.2 B-Key (3052) (PCI-E x1, USB 2.0, USB 3.x) (supports Sierra LTE module). Refer to MBD6031x UIM/SIM card slot1x M.2 M-Key (2280) (PCI-E x4)1x M.2 NVMe (PCI-E-3.0 x4 / SATA)

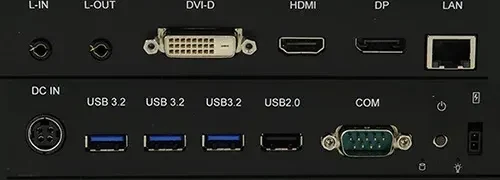

I/O Interface1x HDMI 2.0 / 1x DP++ 1.4 / 1x DVI-D3x USB 3.2 (USB Type-A)1x USB 2.0 (USB Type-A)1x RJ45 for Gigabit LAN1x DB9 for RS232 serial port2x Audio connectors for Line in/Line out1x Power button1x Power switch connector1x Power jack (+12V DC)2x LED for power & storage
Auto Control and MonitoringWatchdog Timer: 256 segments, 0, 1, 2…255 (sec/ min)
Power Requirement+12V DC
ConstructionAluminum + SGCC
Weight1.5 kg(3.3Ibs)
Chassis ColorBlack & White
Storage1x M.2 M-key (2280)
Power Supply150W power adapter
MountingStandard system bracket
Dimensions175mm(W) x 212mm(D) x 37mm(H)
Operating Temperature0°C ~ 45°C (32°F ~ 113°F)
Storage Temperature-20° ~ 80°C (-4°F ~ 176°F)
Relative Humidity10%~90% (non-condensing)
VibrationM.2: 5 grms / 5~500Hz / random operation
CertificationCE, FCC Class-B, cULus & CCC
Operating SystemWindows 10 IoT Enterprise RS5 64-bitLinux Ubuntu 64-bit
