SI12
Digital Signage Player Intel® Atom™ E3845 quad-core processor
Digital Signage Player Intel® Atom™ E3845 quad-core processor. Local warranty support and engineering customization available on request.
CPU
Intel® Atom™ E3845 SoC (22nm); Quad-Core @ 1.91 GHz Integrated Graphic Core
MEMORY
2x DDR3L-1333 SO-DIMMs, Dual Channel, Max. 8GB (Non-ECC)
STORAGE
1x mSATA
DISPLAY
Intel® HD Graphics (Gen 7-LP) 4EU
Specifications
22 ROWS
| System Mainboard | IB812 |
|---|---|
| CPU Type | Intel® Atom™ E3845 SoC (22nm); Quad-Core @ 1.91 GHz Integrated Graphic Core |
| CPU Socket | FCBGA 1170 BGA -- aka Atom “Type 3” (25mm x 27mm) |
| Chipset | SoC Integrated |
| LAN | 1x GbE (Realtek RTL 8111DP) |
| Graphics | Intel® HD Graphics (Gen 7-LP) 4EU |
| Memory | 2x DDR3L-1333 SO-DIMMs, Dual Channel, Max. 8GB (Non-ECC) |
| Expansion Slots | 1x mPCIe(x1) for WiFi + Bluetooth, 3G, and TV tuner options · 1x UIM/SIM card slot (for 3G/LTE adapter in mPCIe slot) |
| Auto Control and Monitoring | Watchdog Timer: 256 segments, 0, 1, 2…255 sec/min |
| Power Requirement | +12V DC-in |
| Construction | Aluminum + SGCC |
| Weight | 1.2 Kg (2.65lbs) |
| Chassis Color | Black and White |
| Storage | 1x mSATA |
| Power Supply | 60W power adaptor |
| Mounting | STD system bracket |
| Dimensions | 190mm(W) x 130mm(D) x 19.5mm(H) · 7.5”(W) x 5.1”(D) x 0.77”(H) |
| Operating Temperature | -30°C ~ 60°C (-22°F~140°F) |
| Storage Temperature | -40°C ~ 80°C (-40°F~176°F) |
| Relative Humidity | 5~90% @ 45°C, (non-condensing) |
| Vibration | mSATA: 5 grms / 5~500Hz / random operation |
| Certification | CE, FCC, UL, CCC |
Features
8 ROWS
| Feature 1 | iSMART - for EuP/ErP power saving, auto-scheduler and power resume |
|---|---|
| Feature 2 | Intel® Atom™ Processor E3845 SoC (22nm); Quad-Core @ 1.91GHz |
| Feature 3 | Intel HD graphics (Gen 7-LP) 4EU |
| Feature 4 | 2x DDR3L-1333 SO-DIMM, dual channel, Max. 8GB |
| Feature 5 | Supports 2x HDMI 1.4a |
| Feature 6 | 1x Mini PCI-E(x1) slots for WiFi + Bluetooth, 3G, and TV tuner board options |
| Feature 7 | Fanless, super slim and compact design |
| Feature 8 | Wide operating temperature support from -30°C to 60°C |
Ordering Information
5 ROWS
| SI-12 | - |
|---|---|
| SI-12J | - |
| SI-12N | - |
| SI-12M | - |
| SI-MK1 | - Mounting bracket for SI-06/08/12/18/22 series |

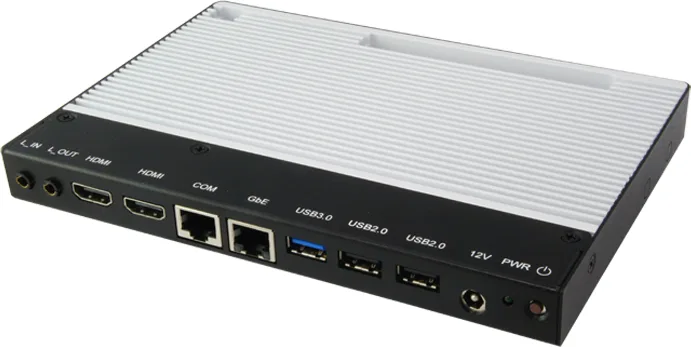

I/O — Rear panel
Front access
Where the SI12 is deployed
USE CASE
Digital signage
Unattended media players for retail, transit, and wayfinding displays.
USE CASE
Video walls
Multi-display outputs driving large-format and multi-panel video walls.
USE CASE
Interactive displays
Touch-enabled signage for interactive wayfinding and self-service.
USE CASE
Outdoor advertising
Sunlight-readable, sealed players for outdoor and semi-outdoor signage.
