SI38N
DIGITAL SIGNAGE / IN STOCK

SI38N

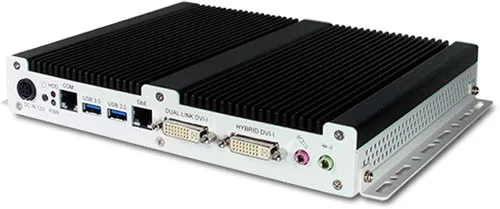

SI-38N Dual-display Fanless Digital Signage Player AMD R-Series system base

SI-38N Dual-display Fanless Digital Signage Player AMD R-Series system base. Local warranty support and engineering customization available on request.

CPU
AMD R-Series 32nm QC/DC APU · *The maximum TDP supported is 19W*
MEMORY
2x DDR3 1600MHz SO-DIMM memory, Max. 8GB
STORAGE
1x external Removable 2.5” HDD/SSD drive bay
DISPLAY
AMD R-Series QC/DC APU Fusion IGX · (384/240 Core @ 650 MHz) · 2x Hybrid DVI-I Supports: OpenCL™ 1.1 Direct Compute 11, · DirectX® 11 UVD3 Hardware Video Decoder, MPEG-2, MPEG-4, H.264, VC-1, WMV
REQUEST QUOTE DATASHEET (PDF)
P/N # SI38N
Diagram

Specifications

22 ROWS
System MainboardIB939
CPU TypeAMD R-Series 32nm QC/DC APU · *The maximum TDP supported is 19W*
CPU Package827-BGA (837mm*2)
ChipsetAMD A70M Controller Hub
Memory2x DDR3 1600MHz SO-DIMM memory, Max. 8GB
GraphicsAMD R-Series QC/DC APU Fusion IGX · (384/240 Core @ 650 MHz) · 2x Hybrid DVI-I Supports: OpenCL™ 1.1 Direct Compute 11, · DirectX® 11 UVD3 Hardware Video Decoder, MPEG-2, MPEG-4, H.264, VC-1, WMV
LAN1x RTL8111E Gigabit LAN controller
Expansion Slots1x mSATA/mPCIe(x1) Full size · 1x mPCIe(x1) Half size For Wi-Fi, Bluetooth, 3G or TV Tuner options
Auto Control and MonitoringWatchdog Timer: 256 segments, 0, 1, 2...255 (sec/min) · On / Off scheduler: 2 time slots
Power Requirement+12V DC-in
ConstructionAluminum + SGCC
Weight1.7kg(3.75lbs)
Chassis ColorBlack and White
Storage1x external Removable 2.5” HDD/SSD drive bay
Power Supply84W power adaptor
MountingSlim design with wall mounting holes
Dimensions270mm(W) x 181mm(D) x 35mm(H) · 10.63”(W) x 7.09”(D) x 1.37”(H)
Operating Temperature0°C~ 45°C (32°F~113°F)
Storage Temperature-20° ~ 80°C (-4°F~176°F)
Relative Humidity5~90% @ 45°C, (non-condensing)
VibrationSSD: 5 grms / 5~500Hz / random operation HDD: 0.25 grms / 5~500Hz / random operation
CertificationCE, FCC, UL, CCC

Features

11 ROWS
Feature 1iSMART - for EuP/ErP power saving,
Feature 2auto-scheduler and power resume
Feature 3Dual independent 1080p playback
Feature 4AMD R-Series onboard Quad-Core / Dual Core
Feature 5APU up to 19W
Feature 6Supports up to 8GB DDR3 memory
Feature 7Integrated AMD Radeon™ 384/240 Cores
Feature 8DirectX ® 11 GPU in processor
Feature 9Dual Mini PCI-E(x1) slots for Wi-Fi, Bluetooth,
Feature 103G or TV tuner options
Feature 11Compact and fanless design

Ordering Information

3 ROWS
SI-38N-45 - Signage Player with AMD R452L Quad-Core (1.6/2.4GHz) CPU, 4GB DDR3 SO-DIMM, 2.5” 320GB SATA HDD, 84W power adaptor SI-38N-26 - Signage Player with AMD R260H Dual-Core (2.1/2.6GHz) CPU, 4GB DDR3 SO-DIMM, 2.5” 320GB SATA HDD, 84W power adaptor SI-38N-45M- Signage Player with AMD R452L Quad-Core (1.6/2.4GHz) CPU, without RAM, HDD, with 80W adaptor
SI-38N-26M- Signage Player with AMD R260H Dual-Core (2.1/2.6GHz) CPU without RAM, HDD, with 80W adaptor
SI-MK3- Mounting bracket for SI-24SD/28/38 series
