SI606
DIGITAL SIGNAGE / IN STOCK

SI606

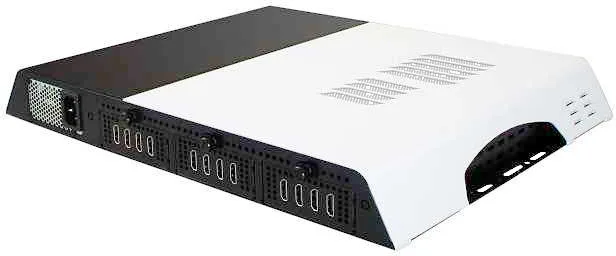

4th Gen. Intel® Core™ Desktop Processor-based Signage Player with AMD Radeon™ E8860 Graphics and 6 DP output

4th Gen. Intel® Core™ Desktop Processor-based Signage Player with AMD Radeon™ E8860 Graphics and 6 DP output. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

CPU
4th Generation Intel® Core™ i7/i5/i3 and Pentium® QC/DC processors, Up to 3.5GHz
MEMORY
4x DDR3 1600 MHz, Max. 32GB
STORAGE
1x mSATA · 2x SATA III 2.5” HDD Dock (supports RAID 1)
DISPLAY
AMD E8860 GPU with 128-bit wide, 2GB GDDR5, 72Gbps · 640 Shader processors · • AMD APP technology3, OpenCL™ 1.24, DirectCompute 11.1 · • 768 / 48 GFLOPS single- / double-precision peak (600e/4.5Gbps) · • Supports AMD Eyefinity technology3
Legacy catalogueIBASE Technology
REQUEST QUOTE REQUEST DATASHEET
MFR. PART # SI606 — IBASE Technology

Specifications

20 ROWS
System MainboardMBD606
CPU Type4th Generation Intel® Core™ i7/i5/i3 and Pentium® QC/DC processors, Up to 3.5GHz
CPU SocketLGA1150
ChipsetIntel® Q87 PCH
Memory4x DDR3 1600 MHz, Max. 32GB
GraphicsAMD E8860 GPU with 128-bit wide, 2GB GDDR5, 72Gbps · 640 Shader processors · • AMD APP technology3, OpenCL™ 1.24, DirectCompute 11.1 · • 768 / 48 GFLOPS single- / double-precision peak (600e/4.5Gbps) · • Supports AMD Eyefinity technology3
LAN1x Intel® Clarkville I218LM · 1x Realtek RTL8111G-CG
Expansion SlotsDual mPCI-E(x1) slots for WiFi, 3G/LTE, capture card and TV tuner options · I/O Interface 6x DP ports with independent video output 1x DVI-I for console · 4x USB 3.0 ports · 2x RJ45 for LAN · 1x RJ45 for RS232 · 3x Microjack audio for Line-in / Line-out/Mic-in · Power LED for power on/off and HDD · 1x Power button · 1x AC power inlet
Auto Control and MonitoringWatchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
ConstructionSGCC
Weight5.4Kg (11.9lbs)
Chassis ColorBlack and white
Storage1x mSATA · 2x SATA III 2.5” HDD Dock (supports RAID 1)
MountingStandard system bracket
Dimensions412mm(W) x 310mm(D) x 47mm(H) · 16.22”(W) x 12.2”(D) x 1.85”(H)
Operating Temperature0°C~ 45°C (32°F~113°F)
Storage Temperature-20°C ~ 80°C (-4°F~176°F)
Relative Humidity5~90% @ 45°C, (non-condensing)
VibrationmSATA: 5 grms / 5~500Hz / random operation
CertificationCE, FCC, CCC, UL

Features

10 ROWS
Feature 1Supports up to 6 displays (DP 1.2) with independent video output
Feature 2Multiple-Display Matrix Technology for H/W EDID emulation, flexible video wall display configuration, resolution setting and bezel adjustment
Feature 3iSMART Technology for power on/off scheduling, power resume functions, low temperature guardian and intelligent OS recovery
Feature 4Intel® AMT for the remote management
Feature 52x SATA 3.0 2.5” HDD (supports Raid 1)
Feature 62x Mini PCI-E(x1) slots for WiFi, 3G/LTE, video capture and TV tuner options
Feature 7Compact design
Feature 8Supports 4th Generation Intel® Core™ desktop processor
Feature 9Flexible VW display configuration setting, Max. resolution: 11520 x 4320
Feature 10mPCIe support for TV/Video Input and 4G/Wifi module

Ordering Information

1 ROWS
SI-606-
