SW-101-N

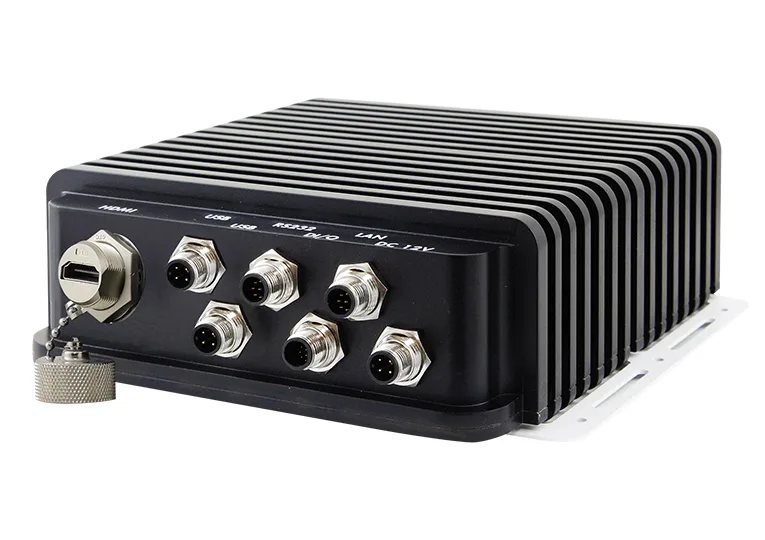

Intel® Atom® Processor E3845 Waterproof Fanless Signage Player with 1x HDMI
Intel® Atom® Processor E3845 Waterproof Fanless Signage Player with 1x HDMI. Local warranty support and engineering customization available on request.
CPU
Intel® Atom™ Processor E3845 Quad-Core 1.91GHz
MEMORY
1x DDR3L-1333 SO-DIMMs, dual channel, Max. 8GB
STORAGE
1x mSATA
ETHERNET
1x Realtek RTL8111H-CG Gigabit LAN controller
Waterproof Signage PlayerOutdoor Waterproof Signage…
P/N # SW-101-N
Specifications
24 ROWS
| System Mainboard | SGT-MB2 |
|---|---|
| CPU | Intel® Atom™ Processor E3845 Quad-Core 1.91GHz |
| CPU Socket | FCBGA 1170 |
| Chipset | SoC Integrated |
| Memory | 1x DDR3L-1333 SO-DIMMs, dual channel, Max. 8GB |
| Graphics | Intel® HD graphics (Gen 7-LP) 4EU |
| LAN | 1x Realtek RTL8111H-CG Gigabit LAN controller |
| Expansion Slots | 1x mini PCI-E (full-size)1x mSATA socket for mSATA SSD |
| I/O Interface | 1x HDMI (C3 connector)2x USB 2.0 (M12 connector)1x Gigabit LAN (M12 connector)1x RS232 (M12 connector)1x DC power (M12 connector)2x N jack type antenna opening w/ waterproof design1x DIO (M12 connector) |
| Auto Control and Monitoring | Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min) |
| Power Requirement | 12V DC-in |
| Construction | Aluminum die-casting and heavy-duty steel |
| Weight | 2.8 kg (6.17 Ibs) |
| Chassis Color | Black |
| Storage | 1x mSATA |
| Power Supply | 84W power adaptor (optional) |
| Mounting | Wall mount |
| Dimensions | 227mm(W) x 192mm(D) x 70mm(H) 8.93" (W) x 7.55" (D) x 2.75" (H) |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~80°C (-40°F~176°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Vibration | mSATA: 5 grms / 5 ~ 500Hz / random operation |
| Certification | CE, FCC Class-B |
| Operating System | Win7 32/64-bit, Win8, Win8.1. WEI8.1, WEC 2013, Win10 32/64-bit Enterprise |
I/O — Rear panel
Front access
Where the SW-101-N is deployed
USE CASE
Digital signage
Unattended media players for retail, transit, and wayfinding displays.
USE CASE
Video walls
Multi-display outputs driving large-format and multi-panel video walls.
USE CASE
Interactive displays
Touch-enabled signage for interactive wayfinding and self-service.
USE CASE
Outdoor advertising
Sunlight-readable, sealed players for outdoor and semi-outdoor signage.
