SW-602-N

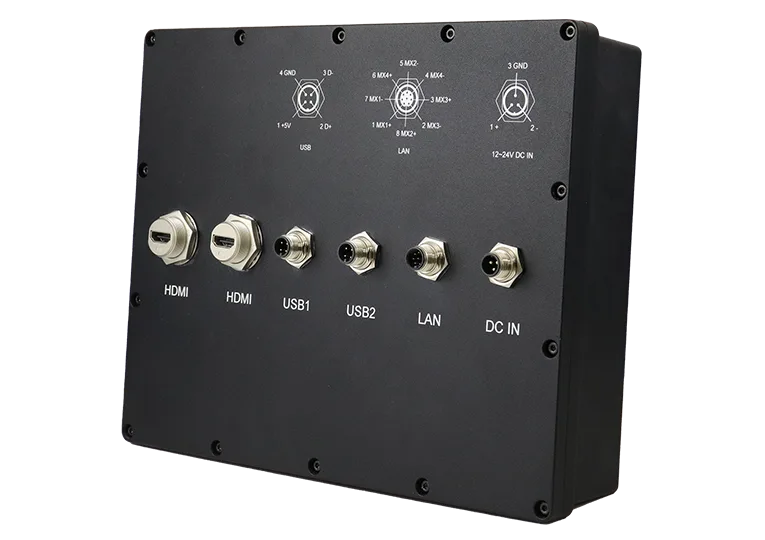

11th Gen Intel® Core™ Processor Waterproof Fanless Signage Player with 2x HDMI
11th Gen Intel® Core™ Processor Waterproof Fanless Signage Player with 2x HDMI. Local warranty support and engineering customization available on request.
CPU
11th Gen Intel® Core™ i5-1145GRE Processor (8M Cache, up to 4.10 GHz)
MEMORY
2x DDR4-3200, SO-DIMM, dual channel , Max. 64GB
STORAGE
M.2-2280 SATA3 128GB
ETHERNET
1x Gigabit LAN (M12)
Waterproof Signage PlayerOutdoor Waterproof Signage…
P/N # SW-602-N
Specifications
24 ROWS
| System Mainboard | MBD603-i5 |
|---|---|
| CPU | 11th Gen Intel® Core™ i5-1145GRE Processor (8M Cache, up to 4.10 GHz) |
| CPU Socket | BGA-1449 package |
| Chipset | SoC Integrated |
| Memory | 2x DDR4-3200, SO-DIMM, dual channel , Max. 64GB |
| Graphics | integrated |
| LAN | 1x Gigabit LAN (M12) |
| Expansion Slots | 1x M.2 E-Key (2230) (2x PCI-E x1; USB 2.0)1x M.2 B-Key (3052) (PCI-E x1; USB 2.0; USB 3.0)1x internal SIM slot1x M.2 M-Key(2280) (for capture card) (supports PCI-E Gen III x4 (NVMe SSD) |
| I/O Interface | 2x HDMI2.0 (M25 connector)2x USB3.1 (M12)1x Gigabit LAN (M12)1x DC power (M12) |
| Auto Control and Monitoring | Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min) |
| Power Requirement | 12V DC-IN |
| Construction | Aluminum die-casting and heavy-duty steel |
| Weight | 3.6kgs (7.9lbs) |
| Chassis Color | Black |
| Storage | M.2-2280 SATA3 128GB |
| Power Supply | 84W power adapter (optional) |
| Mounting | Wall mount |
| Dimensions | 217mm(W) x 274mm(D) x 86.5mm(H) |
| Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Storage Temperature | -40°C ~ 80°C (-40°F ~ 176°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Vibration | 3 grms / 5 ~ 500Hz / random operation |
| Certification | CE, FCC Class-B |
| Operating System | Win10 64-bit Enterprise |

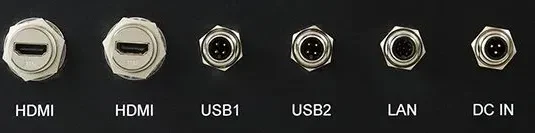

I/O — Rear panel
Front access
Where the SW-602-N is deployed
USE CASE
Digital signage
Unattended media players for retail, transit, and wayfinding displays.
USE CASE
Video walls
Multi-display outputs driving large-format and multi-panel video walls.
USE CASE
Interactive displays
Touch-enabled signage for interactive wayfinding and self-service.
USE CASE
Outdoor advertising
Sunlight-readable, sealed players for outdoor and semi-outdoor signage.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
