EMBEDDED SYSTEMS / IN STOCK

AMI221

Compact Expandable Fanless System with 7th/6th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP)

Compact Expandable Fanless System with 7th/6th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP). Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

7th/6th Gen Intel® Core™ i7/i5/i3 desktop processors (35W TDP)

MEMORY

2x 2GB DDR4-2400 SO-DIMM, Max. 32GB

STORAGE

2x 2.5" HDD/SSD (1x internal & 1x external-accessible)2x mSATA (AMI221AF only) & 1x mSATA (AMI221EF only)RAID 0,1,5,10 support (AF version only)

OPERATING TEMP.

-10°C to 50°C (14°F~122°F)

AMI Series Expandable…Expandable Embedded System

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # AMI221 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

19 ROWS

System Mainboard	MB220AF-1 with Intel® Q170 PCHMB220EF-1 with Intel® H110 PCH
CPU Type	7th/6th Gen Intel® Core™ i7/i5/i3 desktop processors (35W TDP)
System Speed	Up to 3.4GHz
Memory	2x 2GB DDR4-2400 SO-DIMM, Max. 32GB

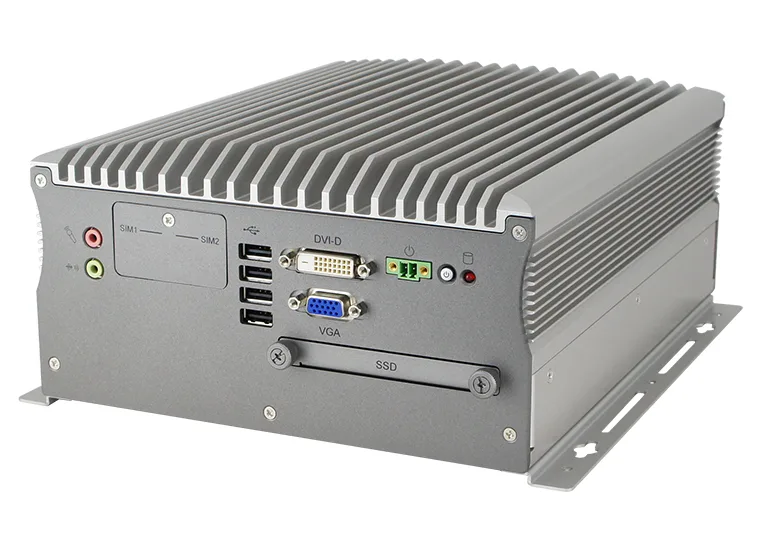

Front Panel External I/O	1x DVI-D + 1x VGA1x Audio jack for MIC-in / Line-out4x USB 2.0 ports1x Red HDD LED1x Power button with green LED indicator2x SIM card slots1x 2-pin terminal block for external power button1x front removable drive bay for SSD

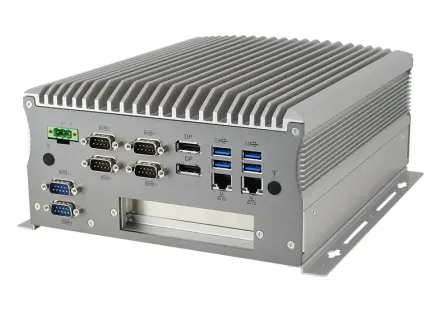

Rear Panel External I/O	1x RS232/RS422/485 port for COM#15x RS232 port for COM#2/COM#2~62x DisplayPort connector1x RJ45 Gigabit Ethernet port + 2x USB 3.0 port1x RJ45 Gigabit Ethernet port + 2x USB 3.0 port1x 3-pin DC-in terminal block for 12V(-10%) ~ 24V(+10%)2x Antenna holes1x Expansion slot
Expansion Slots	1x Mini PCI-E sockets
Storage	2x 2.5" HDD/SSD (1x internal & 1x external-accessible)2x mSATA (AMI221AF only) & 1x mSATA (AMI221EF only)RAID 0,1,5,10 support (AF version only)
Construction	Aluminum & steel
Chassis Color	Silver & Gray
Mounting	Desktop or wall mount (wall mount kit included)
Dimensions	210mm (W) x 265mm (D) x 108.6mm (H)8.27" (W) x 10.43" (D) x 4.28" (H)
Weight	4.3kg
Operating Temperature	-10°C to 50°C (14°F~122°F)
Storage Temperature	-20°C ~ 80°C (-4°F~176°F)
Relative Humidity	5~90% @ 45°C, (non-condensing)
Vibration	Non-Operating: 1.0 grms / 5~500Hz / random operationOperatiing: 0.25 grms / 5~500Hz / random operation
Shock	Operating: 20G/ 11msNon-Operating: 40G/ 11ms (MIL-STD-810G)
Certification	CE / LVD / FCC Class-B
