AMI222

Compact Expandable Fanless System with 7th/6th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP)

Compact Expandable Fanless System with 7th/6th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP). Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

7th/6th Gen Intel® Core™ i7/i5/i3 desktop processors (35W TDP)

MEMORY

2x 2GB DDR4-2400 SO-DIMM, Max. 32GB

STORAGE

1x 2.5" HDD/SSD (Internal)2nd 2.5" HDD/SSD (External-accessible)2x mSATA (AMI220AFS or AMI222AFS )1x mSATA (AMI220EFS or AMI222EFS )RAID 0,1,5,10 support (AMI220AFS or AMI222AFS only)

OPERATING TEMP.

-10°C ~ 50°C (14°F~122°F)

AMI Series Expandable…Expandable Embedded System

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # AMI222 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

19 ROWS

System Mainboard	MB220AF-1 with Intel® Q170 PCHMB220EF-1 with Intel® H110 PCH
CPU Type	7th/6th Gen Intel® Core™ i7/i5/i3 desktop processors (35W TDP)
System Speed	Up to 3.4GHz
Memory	2x 2GB DDR4-2400 SO-DIMM, Max. 32GB

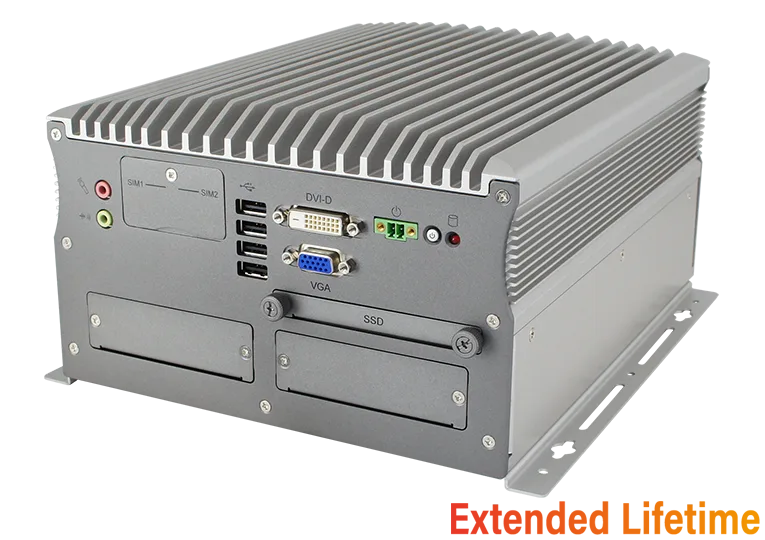

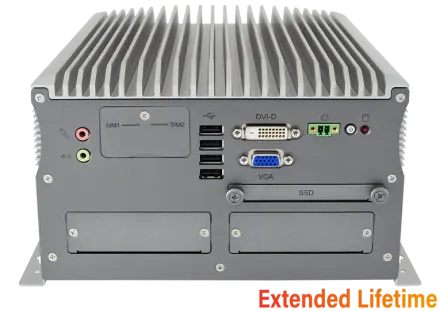

Front Panel External I/O	1x DVI-D + 1x VGA1x Audio jack for Mic-in / Line-out4x USB 2.0 ports1x Red HDD LED1x power button with green LED indicator2x SIM card slots1x 2-pin terminal block for external power button1x Front removable drive bay for SSD

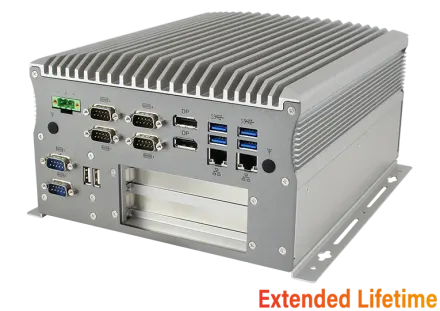

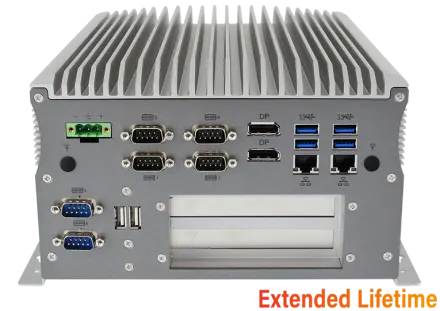

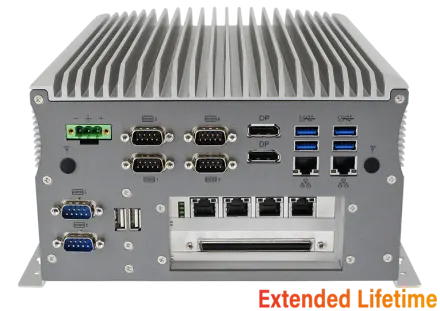

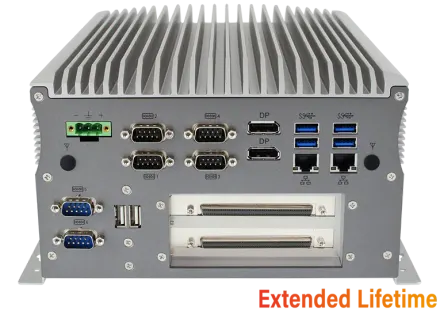

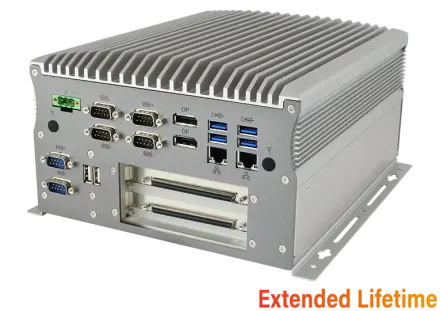

Rear Panel External I/O	1x RS232/RS422/485 port for COM#13x RS232 port for COM#2 ~ COM#42x extra RS232 port for COM#5 ~ COM#6 [For AMI222 + IP211 or IP212 riser card]2x DisplayPort connector1x RJ45 Gigabit Ethernet port + 2x USB 3.0 port1x RJ45 Gigabit Ethernet port + 2x USB 3.0 port1x 3-pin DC-in terminal block for 12V (-10%)~24V (+10%)2x USB 2.0 port 2x Antenna holes2x Expansion slots
Expansion Slots	2x Mini PCI-E sockets
Storage	1x 2.5" HDD/SSD (Internal)2nd 2.5" HDD/SSD (External-accessible)2x mSATA (AMI220AFS or AMI222AFS )1x mSATA (AMI220EFS or AMI222EFS )RAID 0,1,5,10 support (AMI220AFS or AMI222AFS only)
Construction	Aluminum & steel
Chassis Color	Silver & Gray
Mounting	Desktop or wall mount (wall mount kit included)
Dimensions	210mm (W) x 265mm (D) x 128.6mm (H)8.27” (W) x 10.43” (D) x 5.06” (H)
Weight	4.3 kg
Operating Temperature	-10°C ~ 50°C (14°F~122°F)
Storage Temperature	-20°C ~ 80°C (-4°F~176°F)
Relative Humidity	5~90% @ 45°C, (non-condensing)
Vibration	Non-Operating: 1.0 grms / 5~500Hz / random operationOperatiing: 0.25 grms / 5~500Hz / random operation
Shock	Operating: 20G/ 11msNon-Operating: 40G/ 11ms (MIL-STD-810G)
Certification	CE / LVD / FCC Class B
