EMBEDDED SYSTEMS / IN STOCK

AMI231

Compact Expandable Fanless System with 9th/8th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP)

Compact Expandable Fanless System with 9th/8th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP). Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

9th/8th Gen Intel® Core™ i7/i5/i3 desktop processors

MEMORY

2x DDR4-2666/2400 SO-DIMM, Max. 32GB

STORAGE

2x 2.5'' HDD/SSD1x M.2 (M-key supports PCI-E(4x) + SATA for NVMe SSD)

OPERATING TEMP.

-20°C ~ 70°C (-4°F~158°F) (for 35W CPU)

AMI Series Expandable…Expandable Embedded System

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # AMI231 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

19 ROWS

System Mainboard	MB230AF with Intel® Q370 PCH
CPU Type	9th/8th Gen Intel® Core™ i7/i5/i3 desktop processors
System Speed	Up to 4.0 GHz
Memory	2x DDR4-2666/2400 SO-DIMM, Max. 32GB

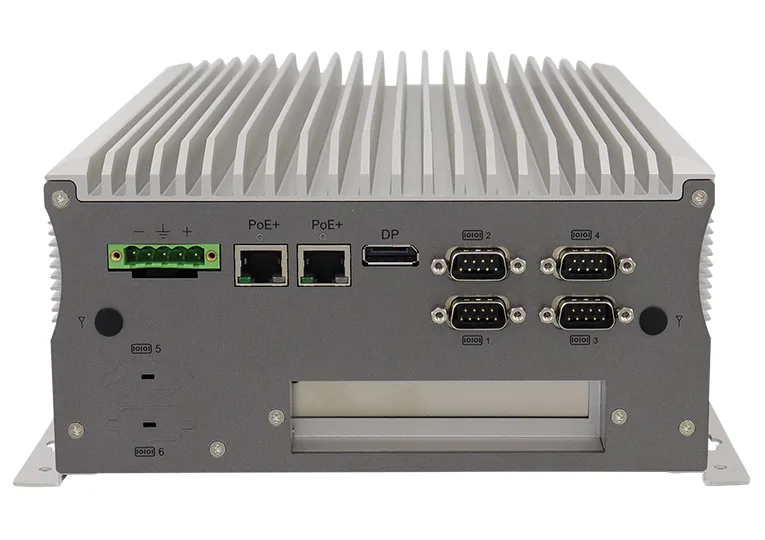

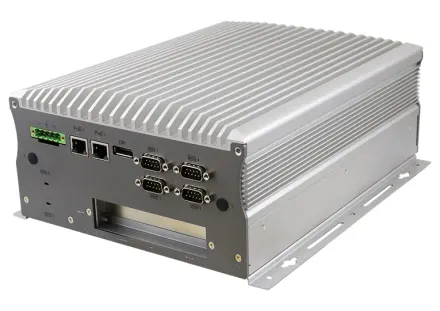

Front Panel External I/O	1x RS232/422/485 port for COM#1~COM#23x RS232 ports for COM#3~COM#42x RS232 ports for COM#5~6 from optional IP214/51x DisplayPort (1.2)2x RJ45 Gigabit Ethernet port (Supports 802.3at PoE+)1x 5-pins DC-in terminal block type for 12V (±10%) or 18V (-10%)~24V (+10%)2x Antenna holes1x Expansion slot

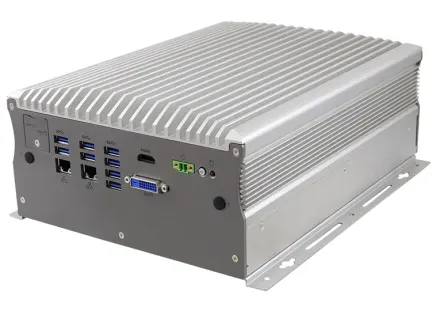

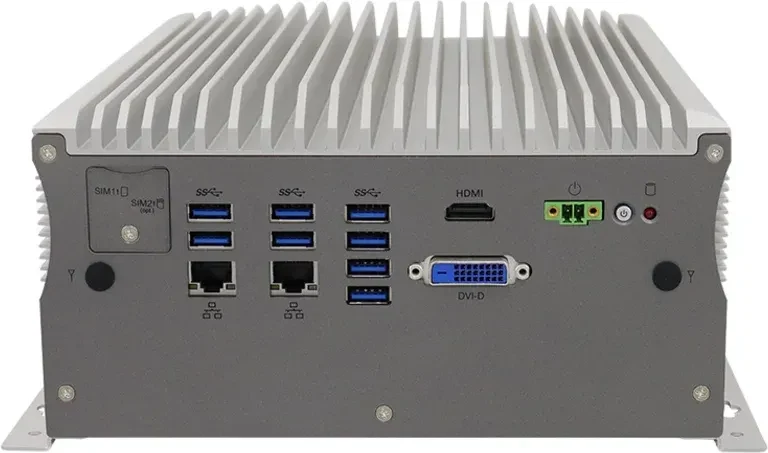

Rear Panel External I/O	1x DVI-D + HDMI(1.4)4x USB3.1 ports2x Antenna holes2x RJ45 Gigabit Ethernet port + Dual USB3.1 stack ports1x Red HDD LED1x power button with Green LED indicator1x 2-pin terminal block2x SIM card
Expansion Slots	1x Flexible PCI-E / PCI expansion slot1x M.2 (B-key supports USB 2.0 for 4G/LTE)1x M.2 (E-key supports PCI-E + USB 2.0 for CNVi)1x M.2 (M-key supports PCI-E(4x) + SATA for NVMe SSD)
Storage	2x 2.5'' HDD/SSD1x M.2 (M-key supports PCI-E(4x) + SATA for NVMe SSD)
Construction	Aluminum & steel
Chassis Color	Silver & Gray
Mounting	Desktop & wall mount
Dimensions	210mm(W) x 285mm(D) x 109mm(H) 8.27" (W) x 11.22" (D) x 4.29" (H)
Weight	4.5 kg
Operating Temperature	-20°C ~ 70°C (-4°F~158°F) (for 35W CPU)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	5~90% @60°C, (non-condensing)
Vibration	Operating : 3Grms / 5~500Hz
Shock	Operating : 20G / 11msNon-operating : 40G / 11ms
Certification	CE / FCC Class A/ LVD
