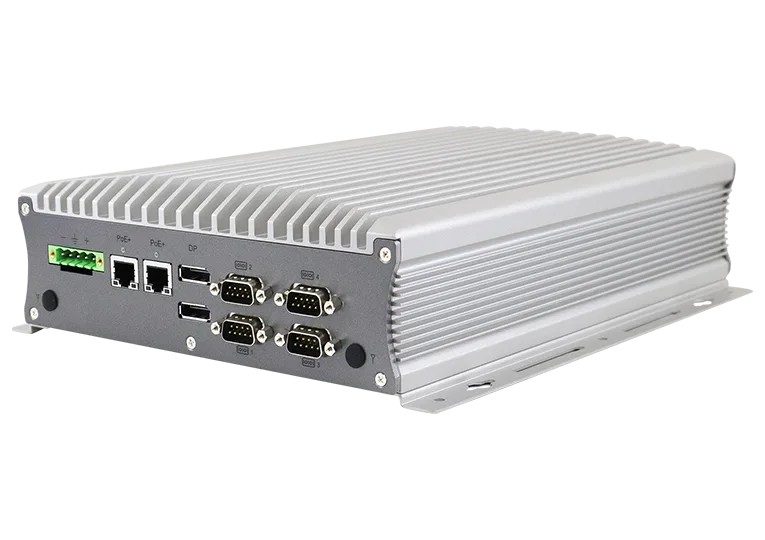

AMI240
Compact Fanless & Ventless System with 14th/13th Gen Intel® Core™ i9/i7/i5/i3 Desktop Processors
Compact Fanless & Ventless System with 14th/13th Gen Intel® Core™ i9/i7/i5/i3 Desktop Processors. Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | MBE240AF with Intel® Q670E PCH |
|---|---|
| CPU Type | 14th/13th Gen Intel® Core™ i9/i7/i5/i3 Desktop Processors |
| System Speed | Up to 5.0GHz |
| Memory | 2x DDR5-4800/5600 SO-DIMM, Max. 64GB |
| Front Panel External I/O | 2x HDMI(2.0b)1x Audio jack for Mic-in / Line-out4x USB3.2 ports2x Antenna holes2x RJ45 2.5GbE ports + Dual USB 3.2 stack ports1x RED LED for 2.5" storage device1x power button with Green LED indicator1x 2-pin terminal block2x SIM card |
| Rear Panel External I/O | 2x RS232/422/485 port for COM#1~COM#22x RS232 ports for COM#3~COM#42x DisplayPort (1.2)2x RJ45 Gigabit Ethernet port (Supports 802.3at,PoE+)1x 5-pin DC-in terminal block type for 24V2x Antenna holes |
| Expansion Slots | 1x M.2 (E-key) for WiFi / BT1x M.2 (B-key) for 5G/4G/LTE (Supports Sierra 5G module) |
| Storage | 1x 2.5 HDD/SSD1x M.2 (M-key)*Supports NVMe SSD |
| Construction | Aluminum & steel |
| Chassis Color | Silver + Gray (Aluminum) |
| Mounting | Desktop & wall mount |
| Dimensions | 210mm(W) x 285mm(D) x 77mm(H)8.27” (W) x 11.22” (D) x 3.03” (H) |
| Weight | 4.1 kg |
| Operating Temperature | -20°C ~ 70°C (-4°F~158°F) (for 35W CPU) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 5%~90%@45°C (non-condensing) |
| Vibration | Operating : 0.25Grms / 5~500HzNon-operating : 1Grms / 5~500Hz |
| Shock | Operating : 20G / 11msNon-operating : 40G / 11ms |
| Certification | CE *follow EN55032*FCC Class A / LVD |
I/O — Rear panel
Front access
Where the AMI240 is deployed
Firewall, SD-WAN, and traffic-inspection appliances needing multiple NICs.
Local MES, OPC UA aggregation, and time-series buffering at the plant edge.
Slot-based systems for frame grabbers, DAQ, and FPGA expansion cards.
1U/2U compute nodes for factory, energy, and telecom environments.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
