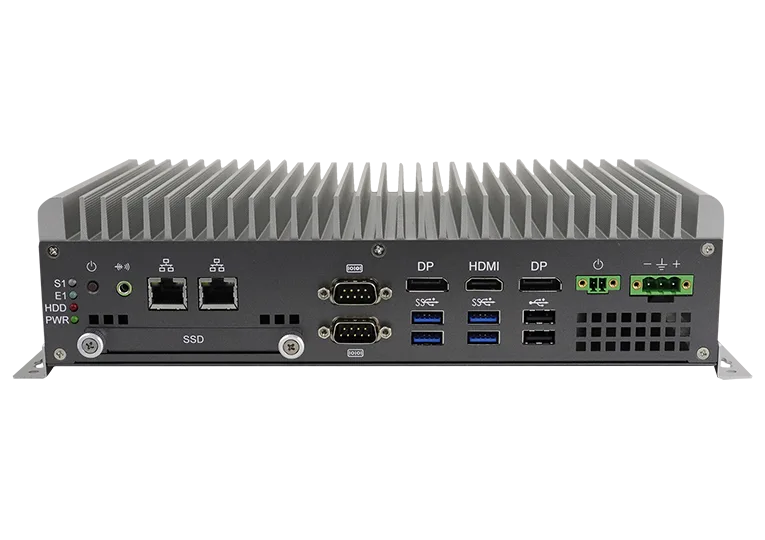

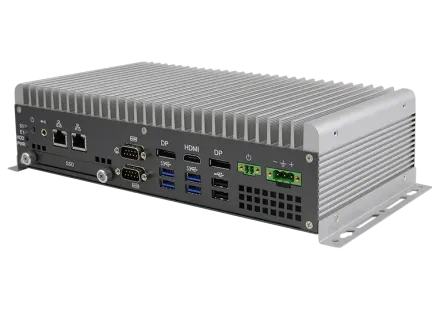

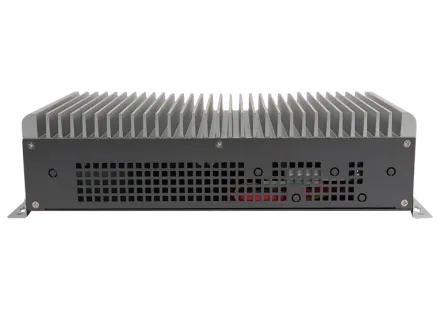

AMS310

Compact Expandable Fanless System with 10th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP)

Compact Expandable Fanless System with 10th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP). Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

10th Gen Intel® Core™ i7/i5/i3 desktop Processors (35W TDP)

MEMORY

2x DDR4-2933/2666 SO-DIMM, Max. 64GB

STORAGE

1x 2.5'' HDD/SSD (external-accessible)1x M.2 2280 M-key (SATA & PCI-E(4x))

OPERATING TEMP.

-10°C ~ 60°C (14°F~140°F) *with airflow-10°C ~ 50°C (14°F to 122°F) without airflow

AMS Series Compact…Expandable Embedded System

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # AMS310 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

19 ROWS

System Mainboard	MB310 with Intel® Q470E PCH
CPU Type	10th Gen Intel® Core™ i7/i5/i3 desktop Processors (35W TDP)
System Speed	Up to 4.5GHz
Memory	2x DDR4-2933/2666 SO-DIMM, Max. 64GB

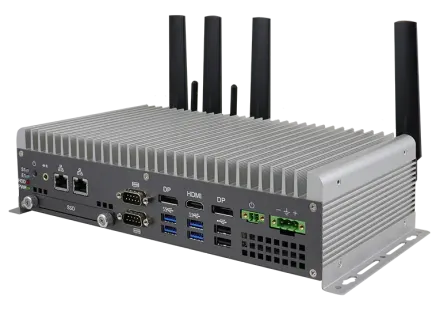

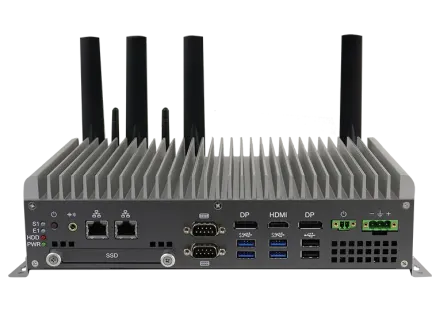

Front Panel External I/O	6x Antenna hole for WLAN/4G/5G module
Rear Panel External I/O	1x HDMI connector2x DisplayPort connector1x Audio jack for Line-out4x USB 3.0, 2x USB 2.0 ports (1x software programmable)1x Red HDD LED, 1x green power LED, 2x Error LED by programming1x 2-pin terminal block connector for remote access1x power button1x RS232/422/485 port for COM#11x RS232 port for COM#22x RJ45 2.5G Ethernet port1x 3-pin DC-in terminal block for 24V (±10%)
Expansion Slots	1x M.2 2230 E-key (USB 2.0 & PCI-E)1x M.2 3052 B-key (USB 3.0 & USB 2.0)
Storage	1x 2.5'' HDD/SSD (external-accessible)1x M.2 2280 M-key (SATA & PCI-E(4x))
Construction	Aluminum & steel
Chassis Color	Silver & Gray
Mounting	Desktop or wall mount (wall mount kit included)Side mountingDIN-rail mounting (optional)
Dimensions	275mm (W) x 150mm (D) x 70mm (H)10.83” (W) x 5.91” (D) x 2.76” (H)
Weight	2.75 kg
Operating Temperature	-10°C ~ 60°C (14°F~140°F) *with airflow-10°C ~ 50°C (14°F to 122°F) without airflow
Storage Temperature	-20°C ~ 80°C (-4°F to 176°F)
Relative Humidity	5~90% @ 45°C, (non-condensing)
Vibration	Non-Operating: 1.0 grms / 5~500Hz / random operationOperatiing:0.25 grms / 5~500Hz / random operation
Shock	Operating: 20 g / 11 msNon-operating: 40 g / 11 ms
Certification	CE / LVD / FCC Class B
