SYSTÈMES EMBARQUÉS / EN STOCK

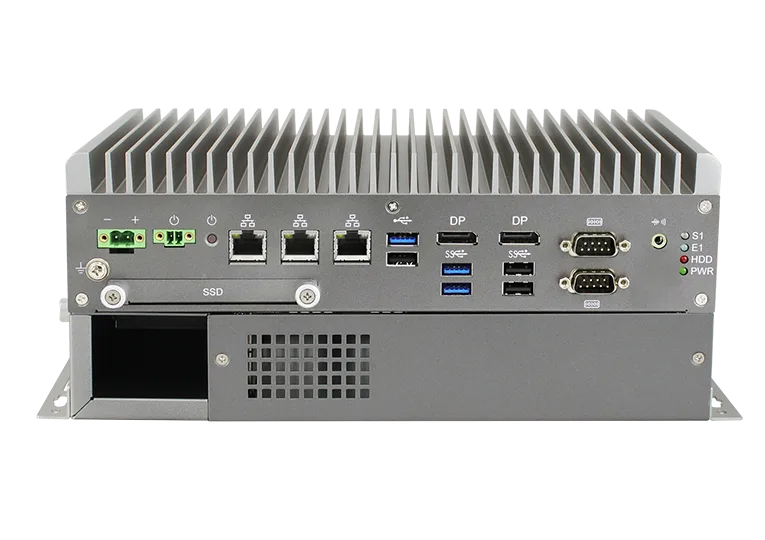

AMS322

Système compact extensible sans ventilateur — 11th Gen Intel® Core™ i7/i5/i3 Processors

Système compact extensible sans ventilateur — 11th Gen Intel® Core™ i7/i5/i3 Processors. Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

11th Gen Intel® Core™ i7/i5/i3 Processors

MEMORY

2x DDR4 SO-DIMM, Max. 64GB

STORAGE

1x 2.5'' HDD/SSD (external-accessible)

OPERATING TEMP.

-10°C ~ 60°C (14°F~140°F) *with airflow-10°C ~ 50°C (14°F to 122°F) without airflow

AMS Series Compact…Expandable Embedded System

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT AMS322 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

19 LIGNES

System Mainboard	MBE320 with Intel® CPU onboard
CPU Type	11th Gen Intel® Core™ i7/i5/i3 Processors
System Speed	Up to 4.4GHz
Memory	2x DDR4 SO-DIMM, Max. 64GB
Front Panel External I/O	2x Antenna hole for WLAN/4G/5G module
Rear Panel External I/O	1x 2-pin DC-in terminal block for 24V (±10%)1x 2-pin terminal block for remote power button1x Power Button3x RJ45 2.5G Ethernet port2x DisplayPort connector3x USB 3.1 ports3x USB 2.0 ports1x RS232/422/485 port for COM#11x RS232 port for COM#21x Audio jack for Line-out1x Red LED for HDD/SSD, 1x Green LED for Power1x Blue LED & 1 x White LED programmable
Expansion Slots	1x M.2 2230 E-key (USB 2.0 & PCI-E)1x M.2 3052 B-key (USB 2.0 & 3.0)2x PCI-E (x4) slot
Storage	1x 2.5'' HDD/SSD (external-accessible)
Construction	Aluminum & steel
Chassis Color	Silver & Gray
Mounting	Desktop or wall mount (wall mount kit included)Side mountingDIN-rail mounting (optional)
Dimensions	275mm (W) x 140mm (D) x 117mm (H)10.83” (W) x 5.51” (D) x 4.61” (H)
Weight	3.5 kg
Operating Temperature	-10°C ~ 60°C (14°F~140°F) *with airflow-10°C ~ 50°C (14°F to 122°F) without airflow
Storage Temperature	-20°C ~ 80°C (-4°F to 176°F)
Relative Humidity	5~90% @ 45°C, (non-condensing)
Vibration	Non-Operating: 1.0 grms / 5~500Hz / random operationOperatiing:0.25 grms / 5~500Hz / random operation
Shock	Operating: 20 g / 11 msNon-operating: 40 g / 11 ms
Certification	CE / LVD / FCC Class B
