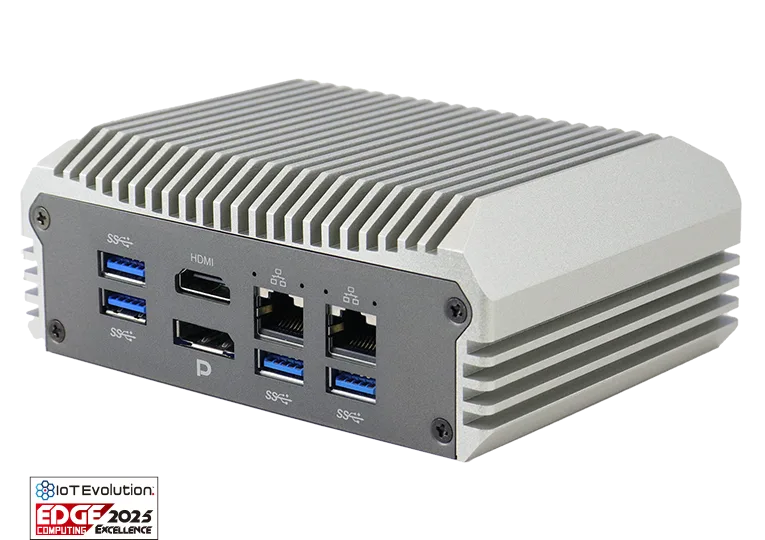

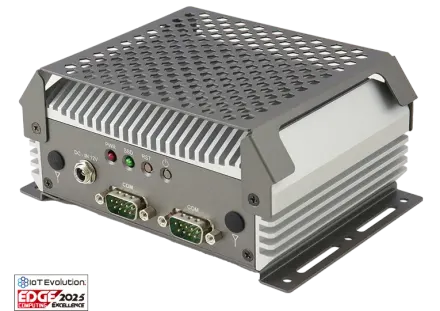

ASB100-PI800

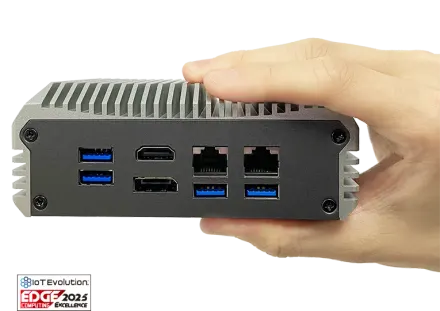

Palm-Sized Fanless System with Intel® Atom™ x7433RE Processor

Palm-Sized Fanless System with Intel® Atom™ x7433RE Processor. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

Intel® Atom® x7433RE Processor

MEMORY

1x DDR5-4800 SO-DIMM, Max. 16GB

STORAGE

1x M.2 M-key 2242

OPERATING TEMP.

-20°C~50°C (-4°F~122°F) *with airflow 0.9m/s

ASB SeriesPICO ITX System

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # ASB100-PI800 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

19 ROWS

System Mainboard	IBASE PICO-ITX PI800F-7433RE
CPU Type	Intel® Atom® x7433RE Processor
System Speed	Up to 3.4GHz
Memory	1x DDR5-4800 SO-DIMM, Max. 16GB

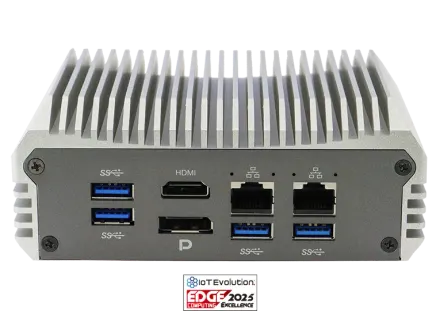

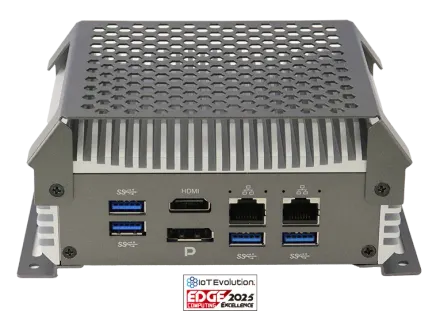

Front Panel External I/O	4x USB 3.21x HDMI1x DisplayPort2x 2.5 GbE

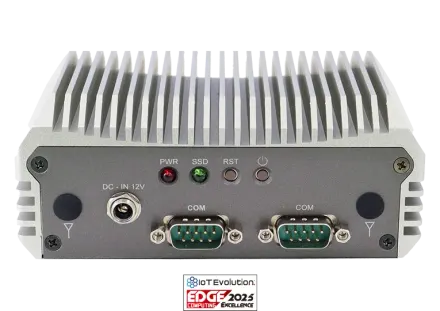

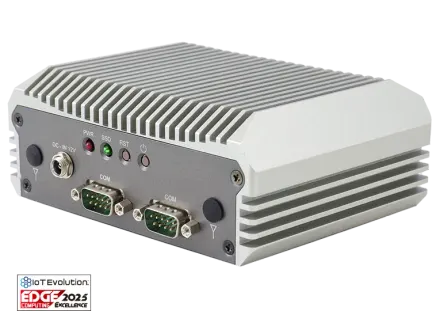

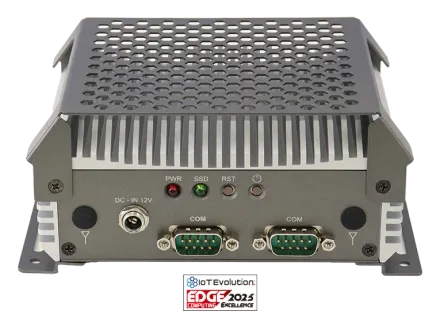

Rear Panel External I/O	1x DC-jack2x Antenna holes2x COM ports (RS232/422/485)2x LED indicators (storage / power)1x Reset Button1x ON/OFF Button
Expansion Slots	1x M.2 2230 (E-key) supports WiFi/ BT1x M.2 2242 (M-key) supports PCIe(1x)/SATA SSD
Storage	1x M.2 M-key 2242
Construction	Aluminum & steel
Chassis Color	Silver & Gray

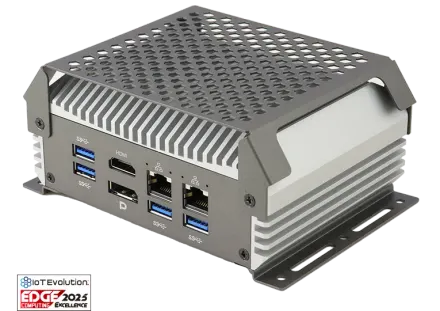

Mounting	Wall mount or Desk mount
Dimensions	133mm (W) x 102.2mm (D) x 51.5mm (H)5.24” (W) x 4.02” (D) x 2.03” (H)
Weight	1.0 kg
Operating Temperature	-20°C~50°C (-4°F~122°F) *with airflow 0.9m/s
Storage Temperature	-20°C ~80°C (-4°F~176°F)
Relative Humidity	5%~90%@45°C (non-condensing)
Vibration	Operating: 1Grms / 3~500Hz
Shock	Operating : 20G / 11msNon-operating : 40G / 11ms
Certification	CE/LVD/FCC Class B
