ASB200-838
Fanless System with Intel® Atom® N-Series Processor
Fanless System with Intel® Atom® N-Series Processor. Local warranty support and engineering customization available on request.
CPU
Intel® N-Series
MEMORY
1x DDR5-4800 SO-DIMM, Max.16GB
STORAGE
1x 2.5’’ HDD or SSD
OPERATING TEMP.
0°C~45°C (32°F~113°F) *with airflow 0.9m/s
ASB Series Fanless System…SBC System
P/N # ASB200-838
Specifications
19 ROWS
| System Mainboard | IB838F |
|---|---|
| CPU Type | Intel® N-Series |
| System Speed | Up to 1.25GHz |
| Memory | 1x DDR5-4800 SO-DIMM, Max.16GB |
| Front Panel External I/O | 1x Power button1x Digital I/O (4-in/4-out)1x HDD LED1x 3-pin DC-in terminal block for 12V(-10%) ~ 24V(+10%) |
| Rear Panel External I/O | 3x USB 3.21x USB Type-C1x DisplayPort1x DB9 for COM#11x DB9 for COM#22x 2.5G LAN |
| Expansion Slots | 2x M.2 sockets (B-Key/ E-Key) |
| Storage | 1x 2.5’’ HDD or SSD |
| Construction | Aluminum & steel |
| Chassis Color | Black |
| Mounting | Desktop or wall mount (wall mount kit included)Optional VESA mount kit |
| Dimensions | 180mm (W) x 150mm (D) x 72mm (H)7.08” (W) x 5.9” (D) x 2.83” (H) |
| Weight | TBD |
| Operating Temperature | 0°C~45°C (32°F~113°F) *with airflow 0.9m/s |
| Storage Temperature | -20°C ~80°C (-4°F~176°F) |
| Relative Humidity | 5%~90%@45°C (non-condensing) |
| Vibration | Operating: 3Grms / 5~500Hz |
| Shock | Operating : 20G / 11msNon-operating : 40G / 11ms |
| Certification | CE/LVD/FCC Class B |

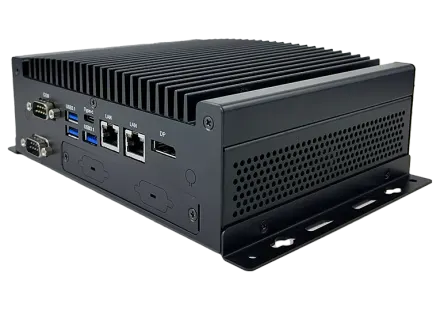

I/O — Rear panel

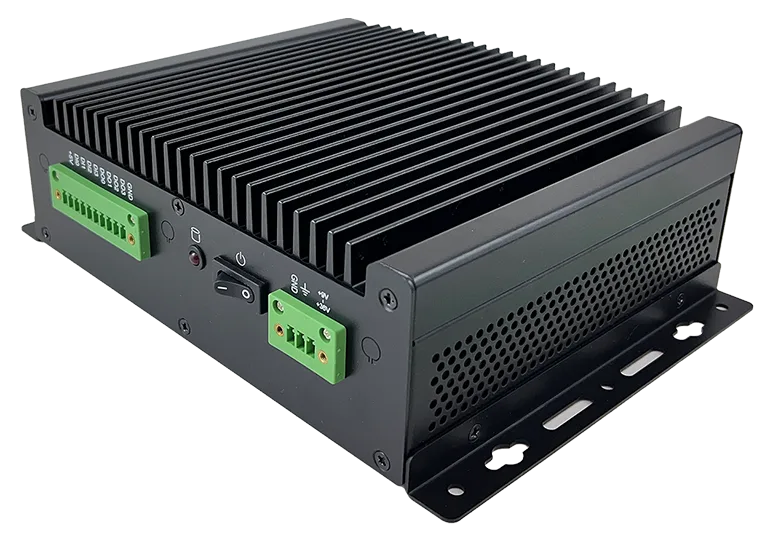

Front access
Where the ASB200-838 is deployed
USE CASE
Network & security appliances
Firewall, SD-WAN, and traffic-inspection appliances needing multiple NICs.
USE CASE
Edge servers
Local MES, OPC UA aggregation, and time-series buffering at the plant edge.
USE CASE
Expandable industrial systems
Slot-based systems for frame grabbers, DAQ, and FPGA expansion cards.
USE CASE
Rack-mount deployment
1U/2U compute nodes for factory, energy, and telecom environments.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
