ASB200-915
Fanless System with 6th Gen Intel® Core™ U-series Processor
Fanless System with 6th Gen Intel® Core™ U-series Processor. Local warranty support and engineering customization available on request.
CPU
Intel® Core™ i7 6600U ProcessorIntel® Core™ i5 6300U ProcessorIntel® Core™ i3 6100U Processor
MEMORY
2x 2GB DDR3L-1600 SO-DIMM Memory, Max.16GB
STORAGE
1x 2.5" HDD or SSD
OPERATING TEMP.
0°C~40°C (32°F~104°F) (With HDD)-10°C~50°C (14°F~122°F) (With SSD)
ASB Series Fanless System…SBC System
P/N # ASB200-915
Diagram Specifications
19 ROWS
| System Mainboard | IB915AF-6600 / IB915AF-6300 / IB915AF-6100 |
|---|---|
| CPU Type | Intel® Core™ i7 6600U ProcessorIntel® Core™ i5 6300U ProcessorIntel® Core™ i3 6100U Processor |
| System Speed | 2.6GHz / 2.4GHz / 2.3GHz |
| Memory | 2x 2GB DDR3L-1600 SO-DIMM Memory, Max.16GB |
| Front Panel External I/O | 1x Power button2x USB 2.01x Audio Jack for Line-out / Line-in / MIC-in1x HDD LED1x Digital I/O (4-in / 4-out) |
| Rear Panel External I/O | 1x COM thru RJ50 connector (RS-232/422/485)3x COM (RS232)4x USB 3.0 ports1x USB 3.1 port (Type-C)1x DisplayPort2x RJ-45 GbE connector1x 3-pin DC-in terminal block for 12V(-10%)~24V(+10%) |
| Expansion Slots | 1x Full-size Mini PCI-E socket |
| Storage | 1x 2.5" HDD or SSD |
| Construction | Aluminum & Steel |
| Chassis Color | Black |
| Mounting | Desktop or wall mount (wall mount kit included)Optional VESA mount kit |
| Dimensions | 180mm (W) x 150mm (D) x 66mm (H)7.09" (W) x 5.91" (D) x 2.6" (H) |
| Weight | 1.8kg |
| Operating Temperature | 0°C~40°C (32°F~104°F) (With HDD)-10°C~50°C (14°F~122°F) (With SSD) |
| Storage Temperature | -20°C ~ 80°C (-4°F~176°F) |
| Relative Humidity | 5~90% @ 45°C, (non-condensing) |
| Vibration | Operating : 0.25Grms / 5~500HzNon-operating : 1Grms / 5~500Hz |
| Shock | Operating : 20G / 11msNon-operating : 40G / 11ms |
| Certification | CE / LVD / FCC Class-B |

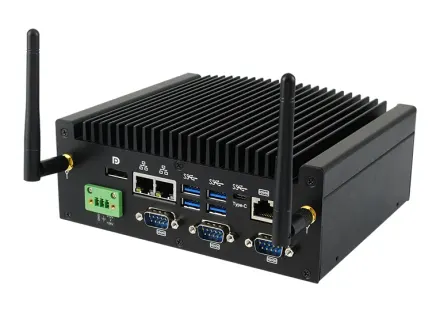

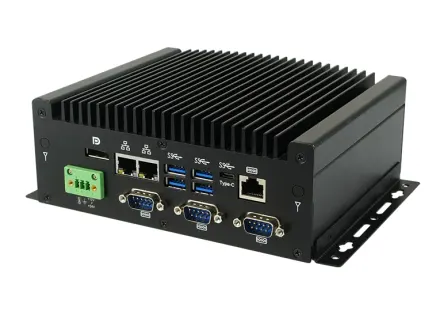

I/O — Rear panel

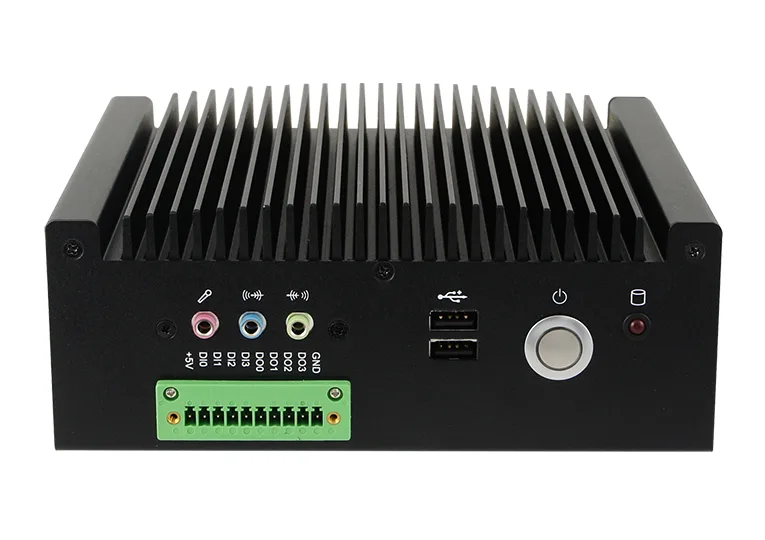

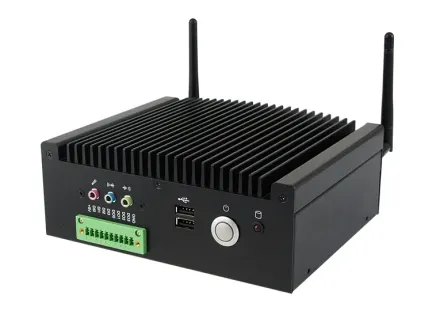

Front access
Where the ASB200-915 is deployed
USE CASE
Network & security appliances
Firewall, SD-WAN, and traffic-inspection appliances needing multiple NICs.
USE CASE
Edge servers
Local MES, OPC UA aggregation, and time-series buffering at the plant edge.
USE CASE
Expandable industrial systems
Slot-based systems for frame grabbers, DAQ, and FPGA expansion cards.
USE CASE
Rack-mount deployment
1U/2U compute nodes for factory, energy, and telecom environments.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
