ASB200-916

Fanless System with 6th Gen Intel® Core™ U-series Processor

Fanless System with 6th Gen Intel® Core™ U-series Processor. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

Intel® Core™ i7 7600U Processor Intel® Core™ i5 7300U Processor Intel® Core™ i3 7100U Processor

MEMORY

2x 4GB DDR4-2133 SO-DIMM, Max.32GB

STORAGE

1x 2.5" HDD or SSD

OPERATING TEMP.

0°C~45°C (32°F~113°F) (With HDD)-20°C~60°C (-4°F~140°F) (With SSD)

ASB Series Fanless System…SBC System

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # ASB200-916 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

19 ROWS

System Mainboard	IB916AF-7600 / IB916AF-7300 / IB916F-7100
CPU Type	Intel® Core™ i7 7600U Processor Intel® Core™ i5 7300U Processor Intel® Core™ i3 7100U Processor
System Speed	Up to 2.8GHz
Memory	2x 4GB DDR4-2133 SO-DIMM, Max.32GB

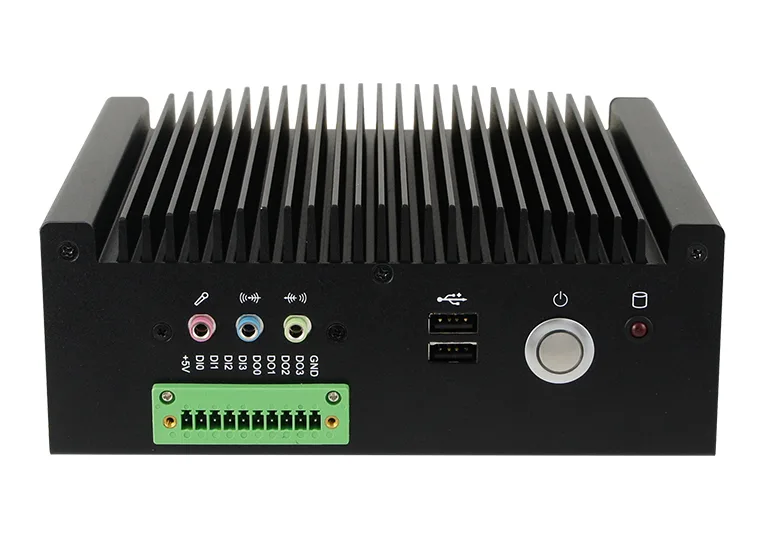

Front Panel External I/O	1x Power button2x USB 2.01x Audio jack for Line-out / Line-in / MIC-in1x HDD LED1x Digital I/O (4-in / 4-out)

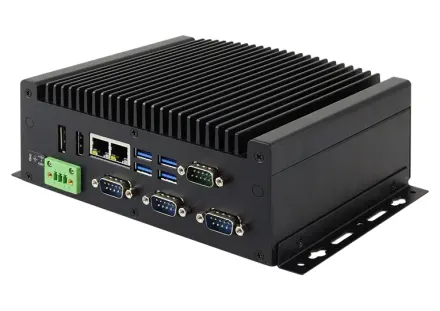

Rear Panel External I/O	4x USB 3.0 port1x HDMI, 1x DisplayPort1x RS232/422/485 port for COM#13x RS232 ports for COM#2/COM#3/ COM#42x RJ45 Gigabit Ethernet port1x 3-pin DC-in terminal block for 12V(-10%)~24V(+10%)
Expansion Slots	1x Full-size Mini PCI-E socket (USB 2.0 + SATA)
Storage	1x 2.5" HDD or SSD
Construction	Aluminum & steel
Chassis Color	Black
Mounting	Desktop or wall mount (wall mount kit included) Optional VESA mount kit
Dimensions	180mm (W) x 150mm (D) x 66mm (H) 7.09" (W) x 5.91" (D) x 2.6" (H)
Weight	1.8kg
Operating Temperature	0°C~45°C (32°F~113°F) (With HDD)-20°C~60°C (-4°F~140°F) (With SSD)
Storage Temperature	-20°C to 80°C (-4°F to 176°F)
Relative Humidity	5~90% @ 45°C, (non-condensing)
Vibration	Operating : 0.25Grms / 5~500HzNon-operating : 1Grms / 5~500Hz
Shock	Operating : 20G / 11ms Non-operating : 40G / 11ms
Certification	CE / LVD / FCC Class-B
